Lower Control Arm

1. Raise and support vehicle, then remove front wheels.

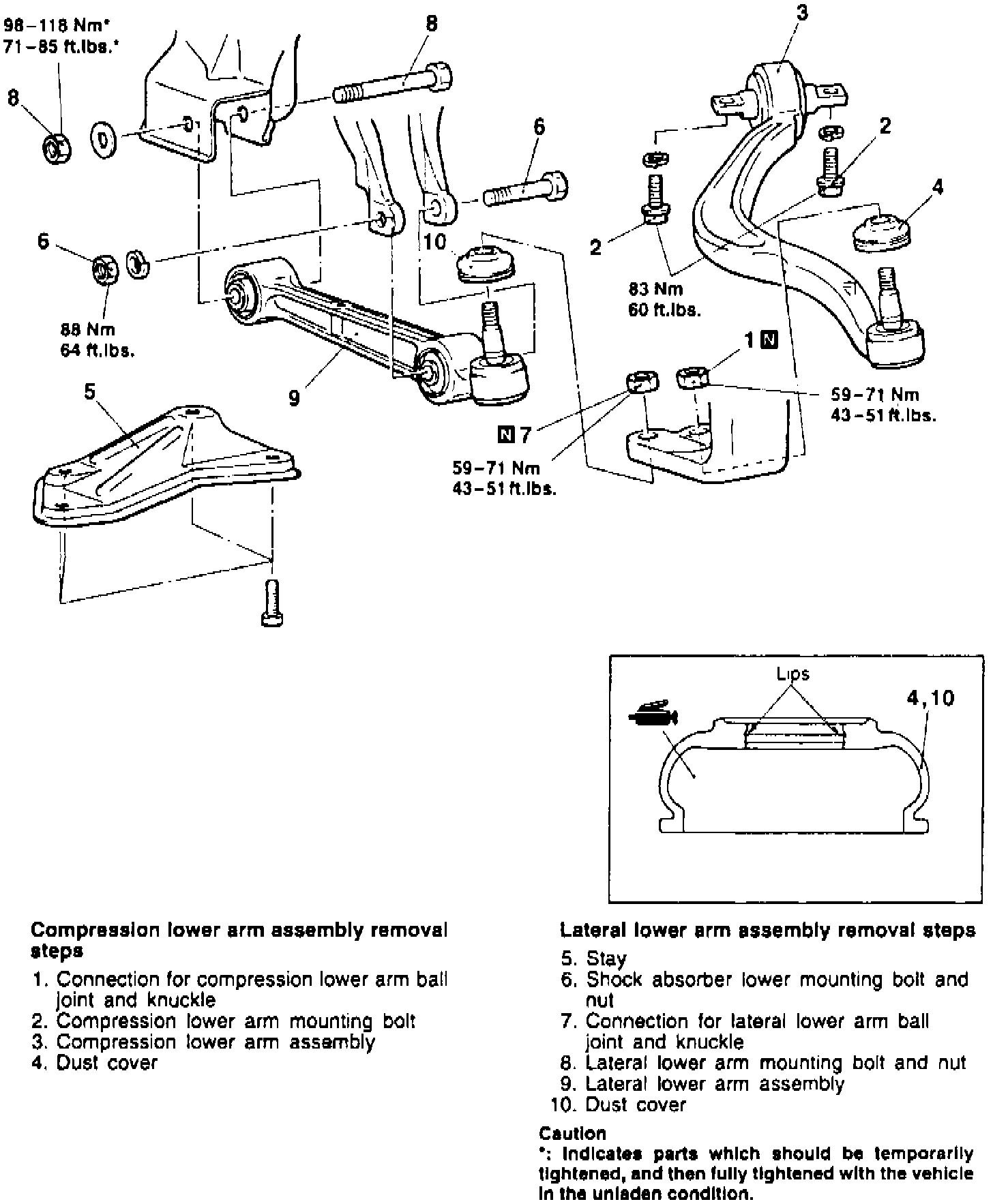

Fig. 5 Lower Control Arm Replacement:

2. Remove compression lower arm and/or lateral lower arm in numbered sequence shown, Fig. 5. Use ball joint remover tool No. MB991113, or equivalent, when disconnecting compression lower arm ball joint and knuckle.
3. Reverse procedure to install.
