SRS - Troubleshooting Revision
NO.: TSB-95-52B-001DATE: June, 1995
MODEL: 1994-95 Galant
SUBJECT:
SRS TROUBLESHOOTING - SERVICE MANUAL REVISION
[TSB Revision TSB-95-52B-001]
PURPOSE
The diagnostic procedures in this bulletin revise those shown in the 1994-95 edition of the Galant Service Manual.
To reference this bulletin in the service manual, write the TSB Revision number in the TSB Revision box located at the bottom of each affected service manual page.
AFFECTED SERVICE MANUALS
1994-95 Galant, Volume 1, Page 52B-24 and 52B-26.
SERVICE MANUAL REVISIONS

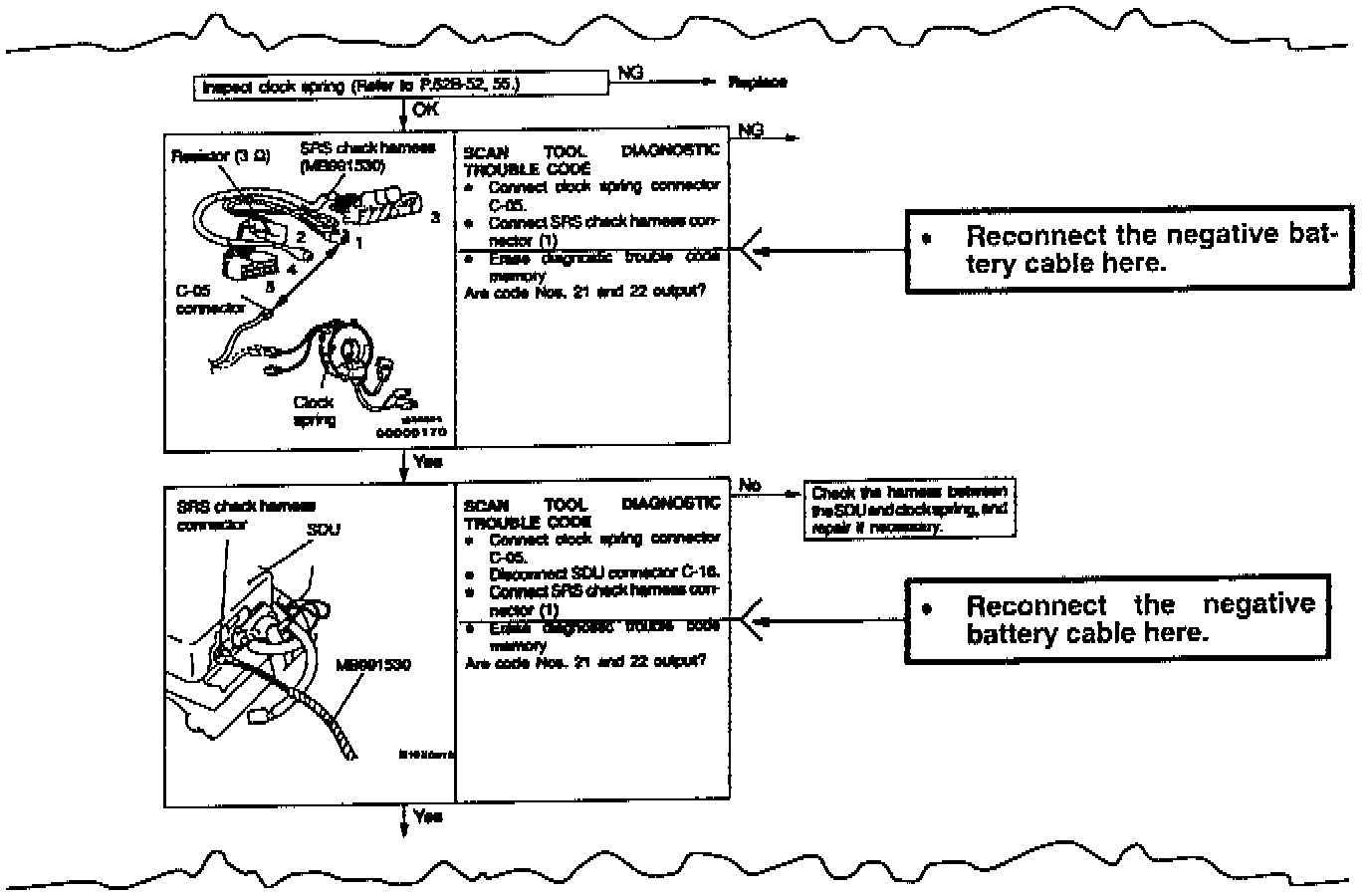

1994-95 Galant, Volume 1, Page 52B-24.
In the troubleshooting section, add notes to reconnect the negative battery cable, as shown.

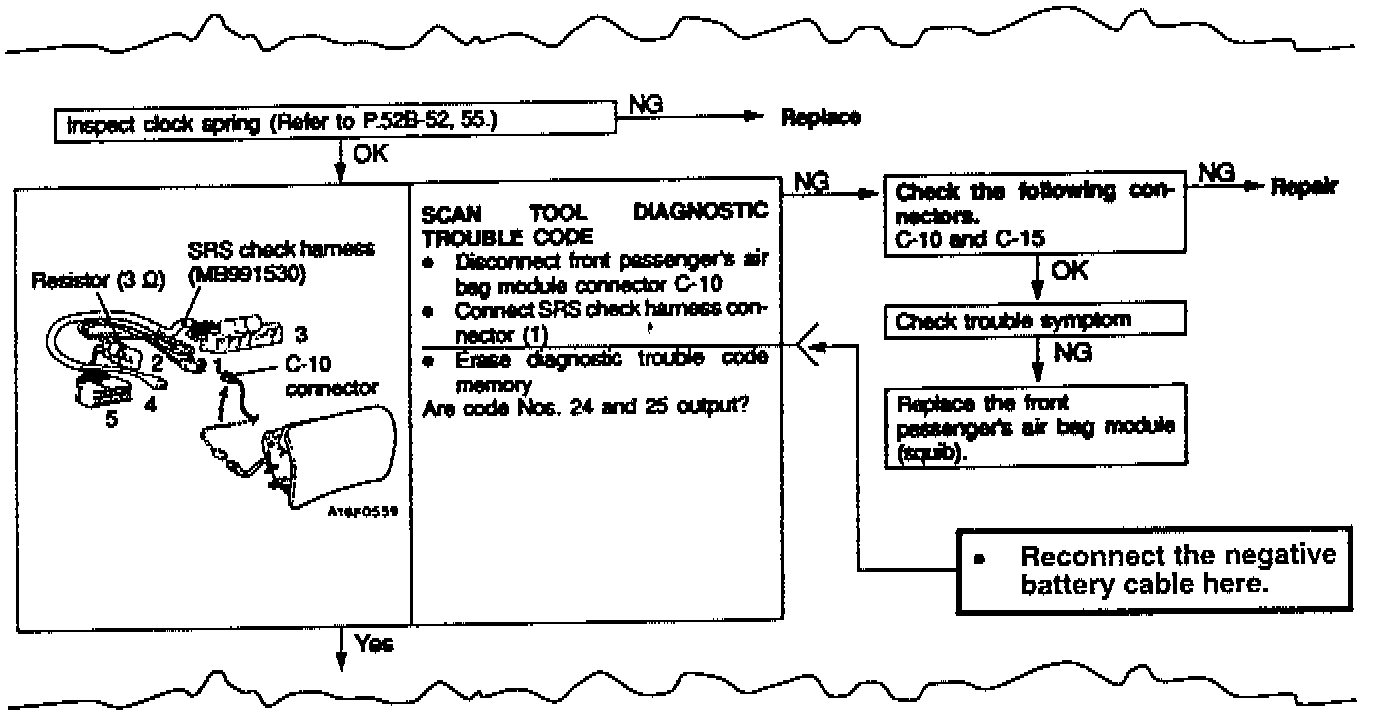

1994-95 Galant, Volume 1, Page 52B-26.
In the troubleshooting section, add a note to reconnect the negative battery cable, as shown.
