Galant L4-2350cc 2.4L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Reading Diagnostic Trouble Codes
>>
Without Scan Tool
>>
With Malfunction Indicator Lamp
With Malfunction Indicator Lamp

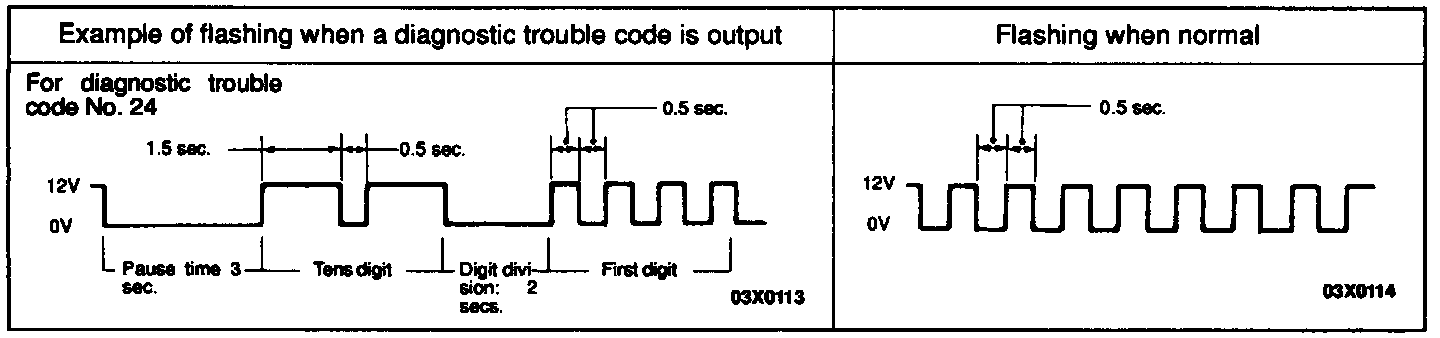

HOW TO DISPLAY AND READ DIAGNOSTIC TROUBLE CODES (USING THE MALFUNCTION INDICATOR LAMP (MIL))
NOTE:
Other diagnostic trouble codes also output as the same code numbers as when using the scan tool.
