Fuel Injector - Resistance Values Revised
No: TSB-98-13-O04DATE: May, 1998
MODEL: 1994-95 Galant
SUBJECT:
CORRECTED FUEL INJECTOR RESISTANCE MEASUREMENT TEMPERATURE VALUES
SERVICE MANUAL REVISION
[TSB Revision TSB-98-13-004]
PURPOSE
This bulletin has corrected information Concerning injector inspection resistance measurement temperature specifications. The temperature values in the original manual information are reversed.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1994-95 Galant
AFFECTED SERVICE MANUALS

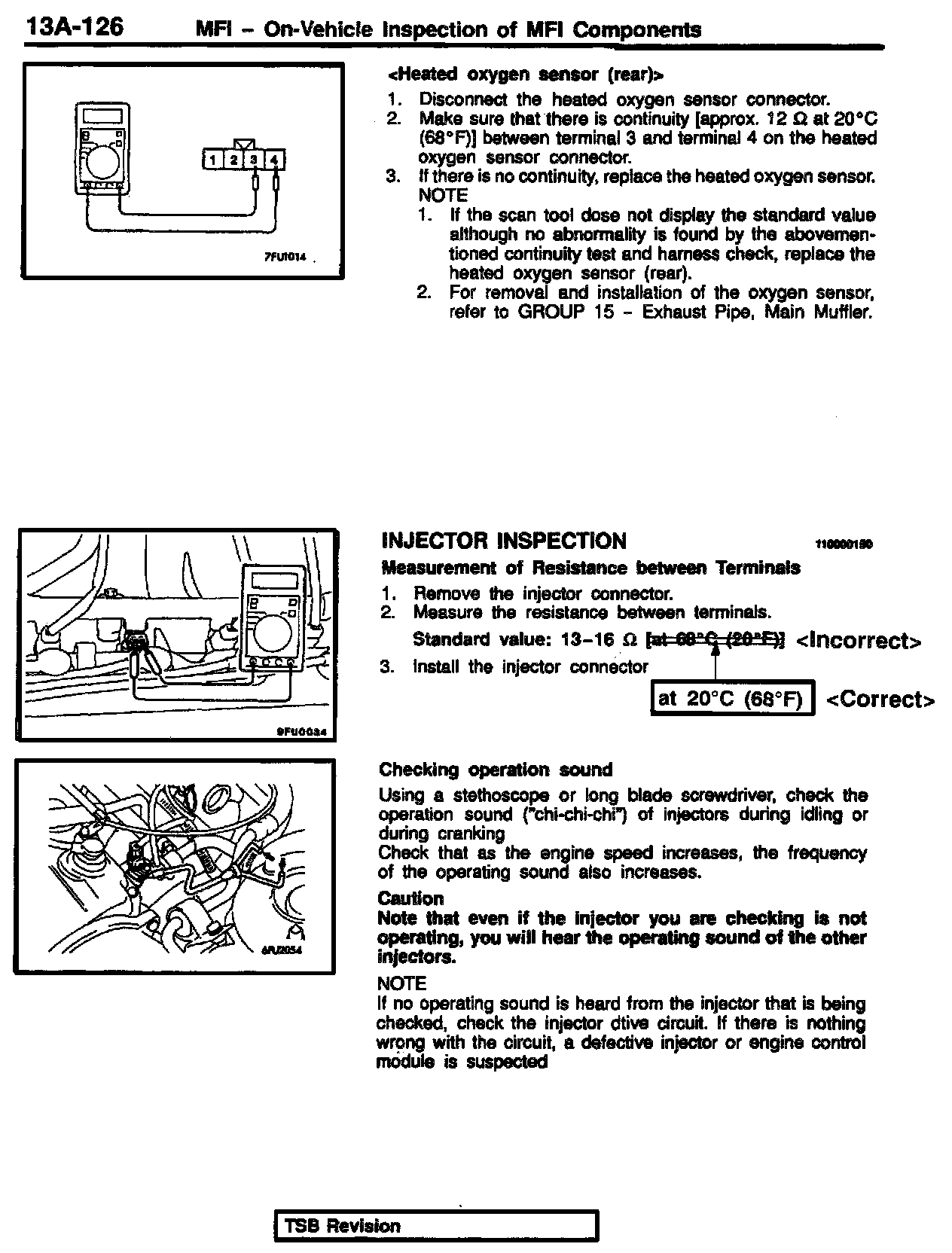

1994-95 Galant Service Manual, Volume 1, Page 13A-126
SERVICE MANUAL REVISIONS
1994-95 Galant Service Manual, Volume 1, Page 13A-126
Change the resistance measurement temperature values as shown:
