Fuel Tank: Service and Repair

Pre-removal Operation
- Draining the Fuel.
- Reduce the Inner Pressure of Fuel Line and Hose.

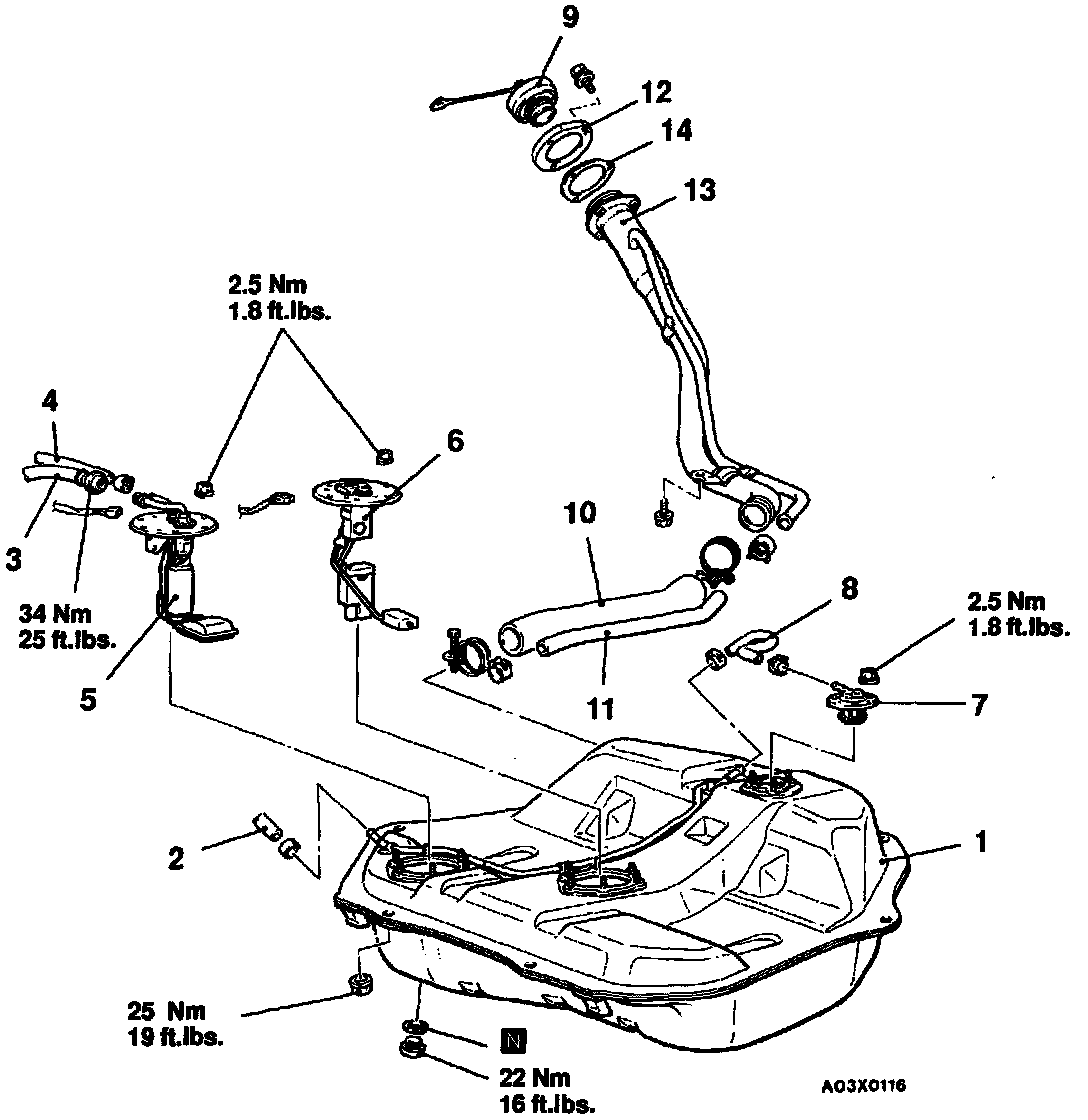

Removal Steps
1. Fuel tank
2. Vapor hose
3. High-pressure fuel hose
4. Return hose
5. Fuel pump assembly
6. Fuel gauge unit assembly
7. Fuel cut-off valve assembly
8. Vapor hose
9. Fuel tank filler tube cap
10. Filler hose
11. Vapor hose
12. Retainer
13. Fuel tank filler tube assembly
14. Packing

NOTE: When replacing the fuel gauge unit assembly only. It is possible to work from the service holes underneath the rear seat cushion without having to remove the fuel tank.
