Park/Nuetral Switch Position Indicator - Manual Revision

NO.
TSB-97-54-011

DATE:
September, 1997

MODEL:
1994-97 Galant

SUBJECT:
MULTI-PURPOSE FUSE CAPACITY AND PARK/NEUTRAL SWITCH POSITION INDICATION - SERVICE MANUAL REVISION

[TSB Revision TSB-97-54-011]

PURPOSE

Multi-purpose fuse capacity is incorrectly specified in the affected service manual pages. This bulletin contains corrected multi-purpose fuse capacity information.

The park/neutral switch position indication is incorrectly shown in the A/T backup light circuit wiring diagram in the 1994-95 and 1996 Galant service manuals. The park/neutral switch position indication is corrected in this bulletin.

Write the TSB revision number of this bulletin in the TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
1994-97 Galant

AFFECTED SERVICE MANUALS
1994-95 Galant, Volume 2, pages 66, 67, 74, 79, 152, 54-58
1996 Galant, Volume 2, pages 50, 51, 58, 63, 108, 126, 128, 54-60, 54-102, 54-143
1996 Galant, Volume 3, page 22
1997 Galant, Volume 2, pages 56, 57, 63, 69,106,127,128, 179, 198, 202, 210





1994-95 Galant, Volume 2, page 66, 1996 Galant, Volume 2, page 50, and 1997 Galant, Volume 2, page 56. Make the following fuse capacity correction:

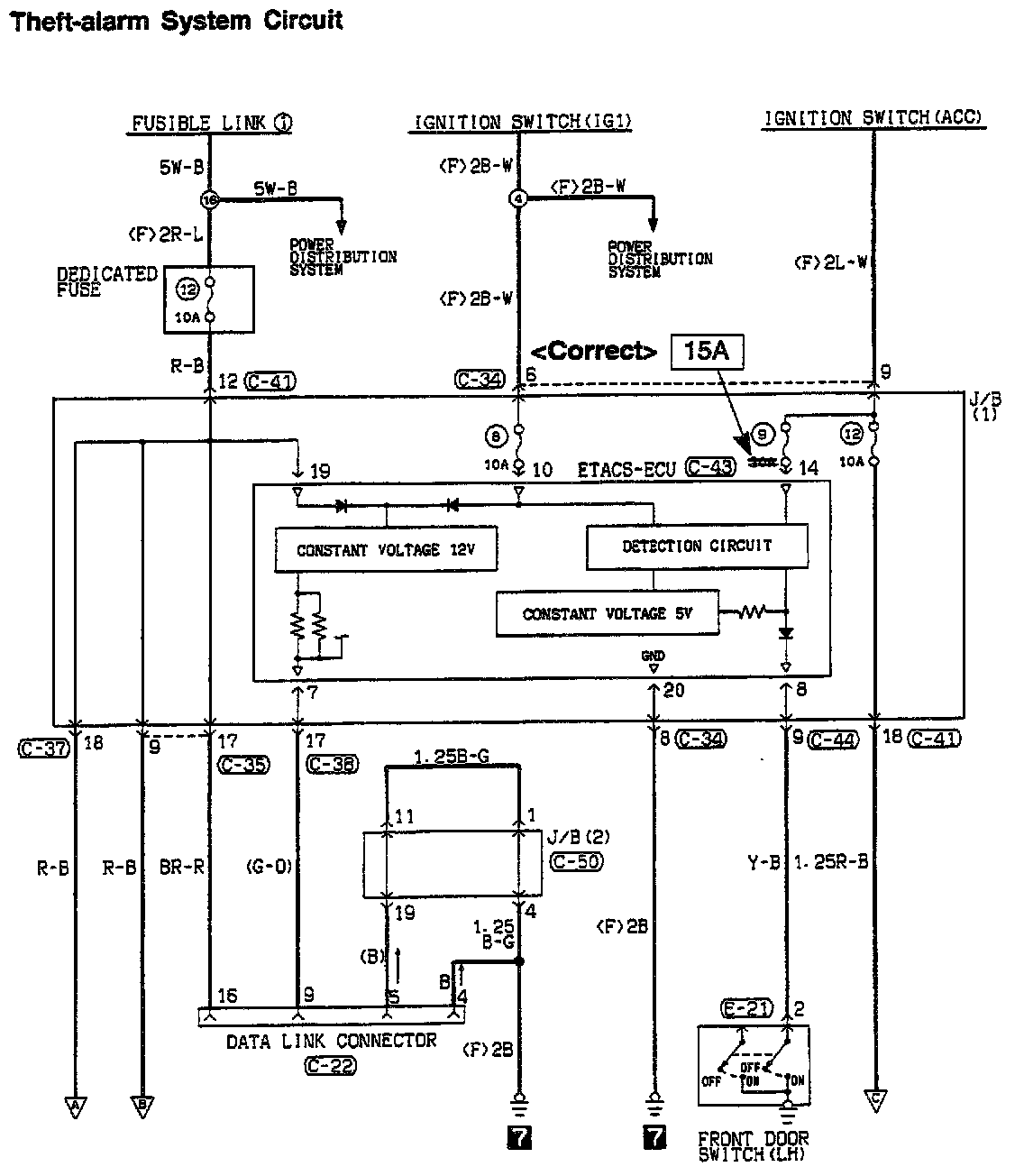

1994-95 Galant, Volume 2, page 67, 1996 Galant, Volume 2, page 51, and 1997 Galant, Volume 2, page 57. Make the illustrated fuse capacity correction.

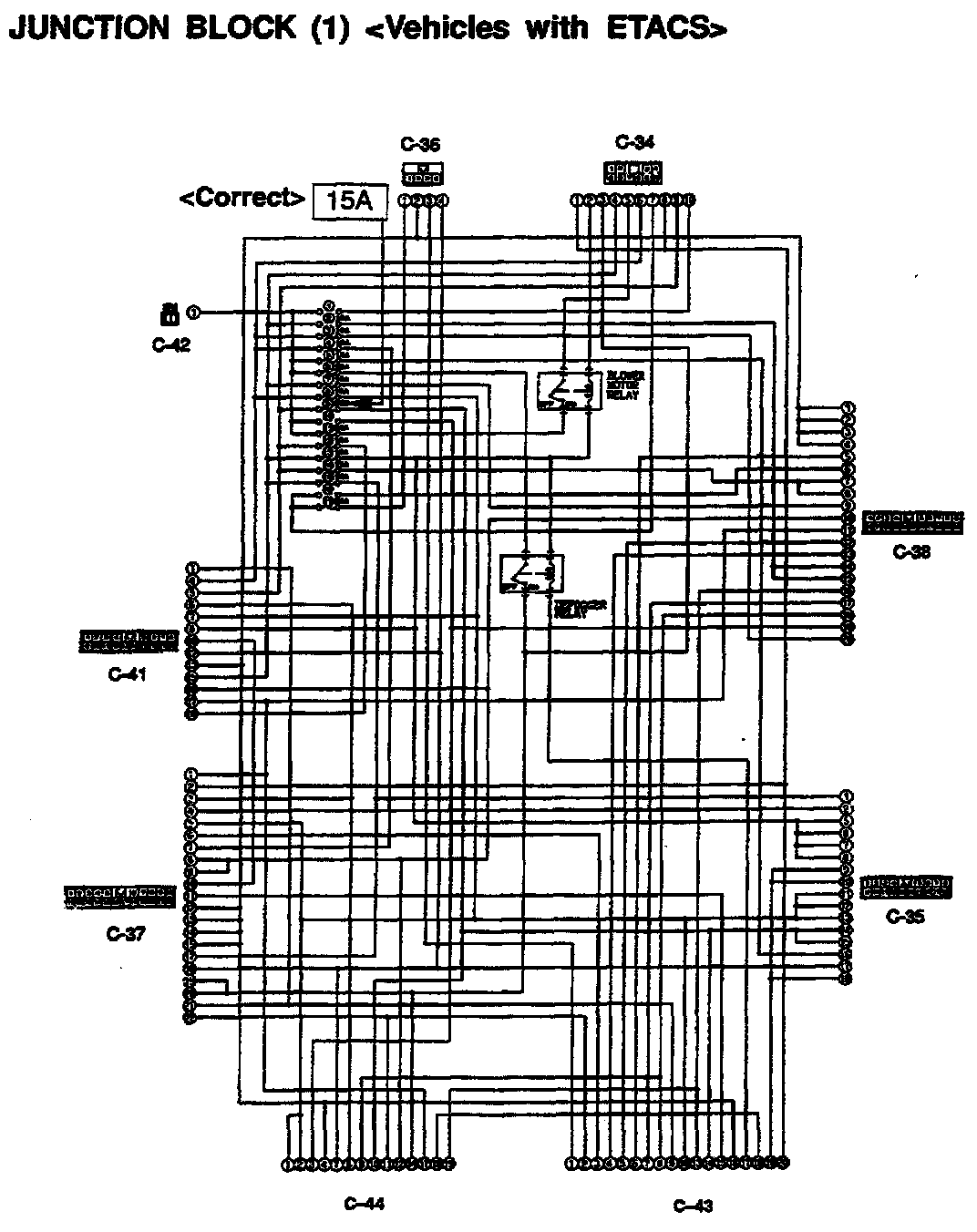

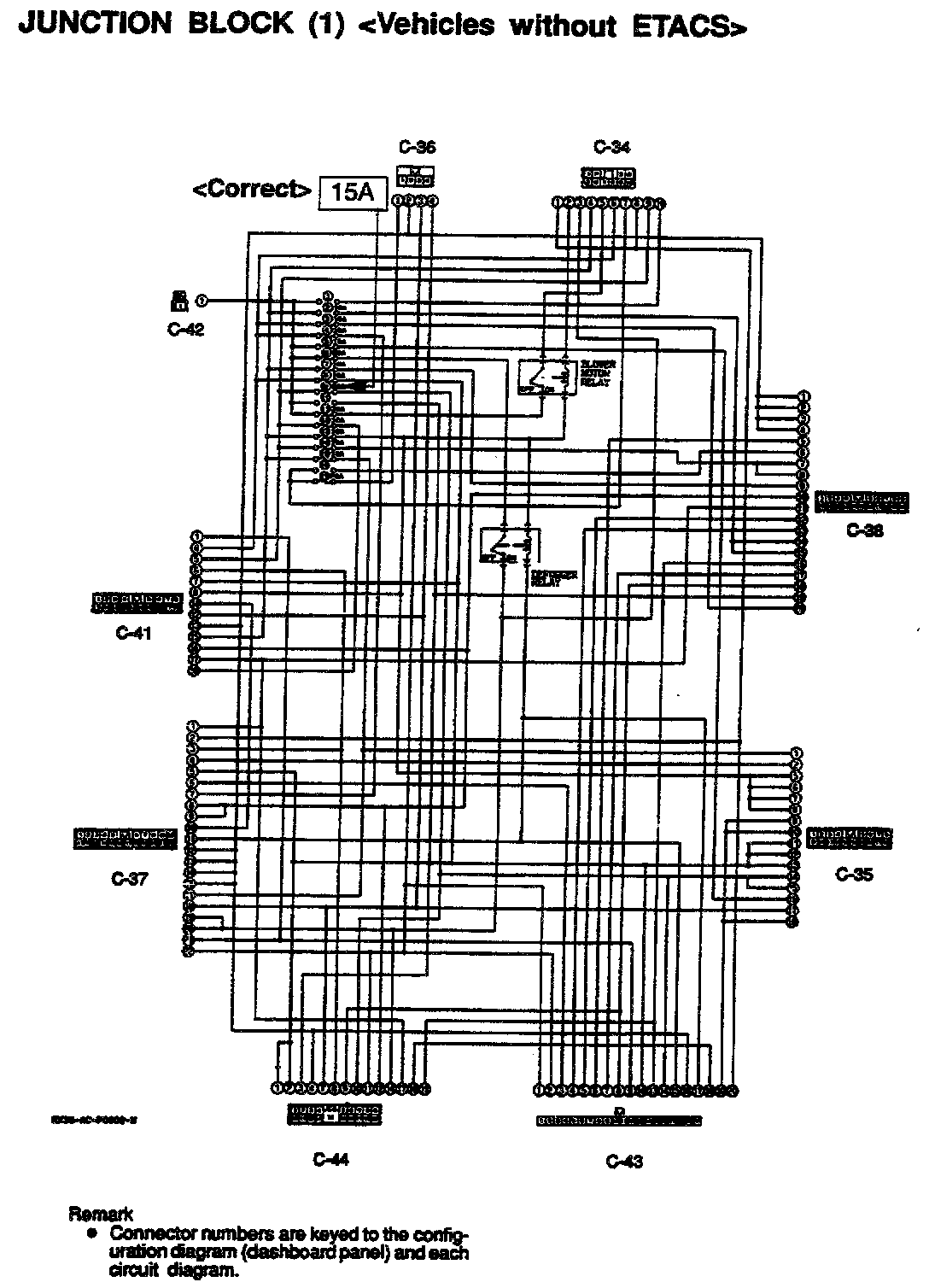

1994-95 Galant, Volume 2, page 74, 1996 Galant, Volume 2, page 58, and 1997 Galant, Volume 2, page 63. Make the illustrated fuse capacity correction and delete the load circuit information as indicated.

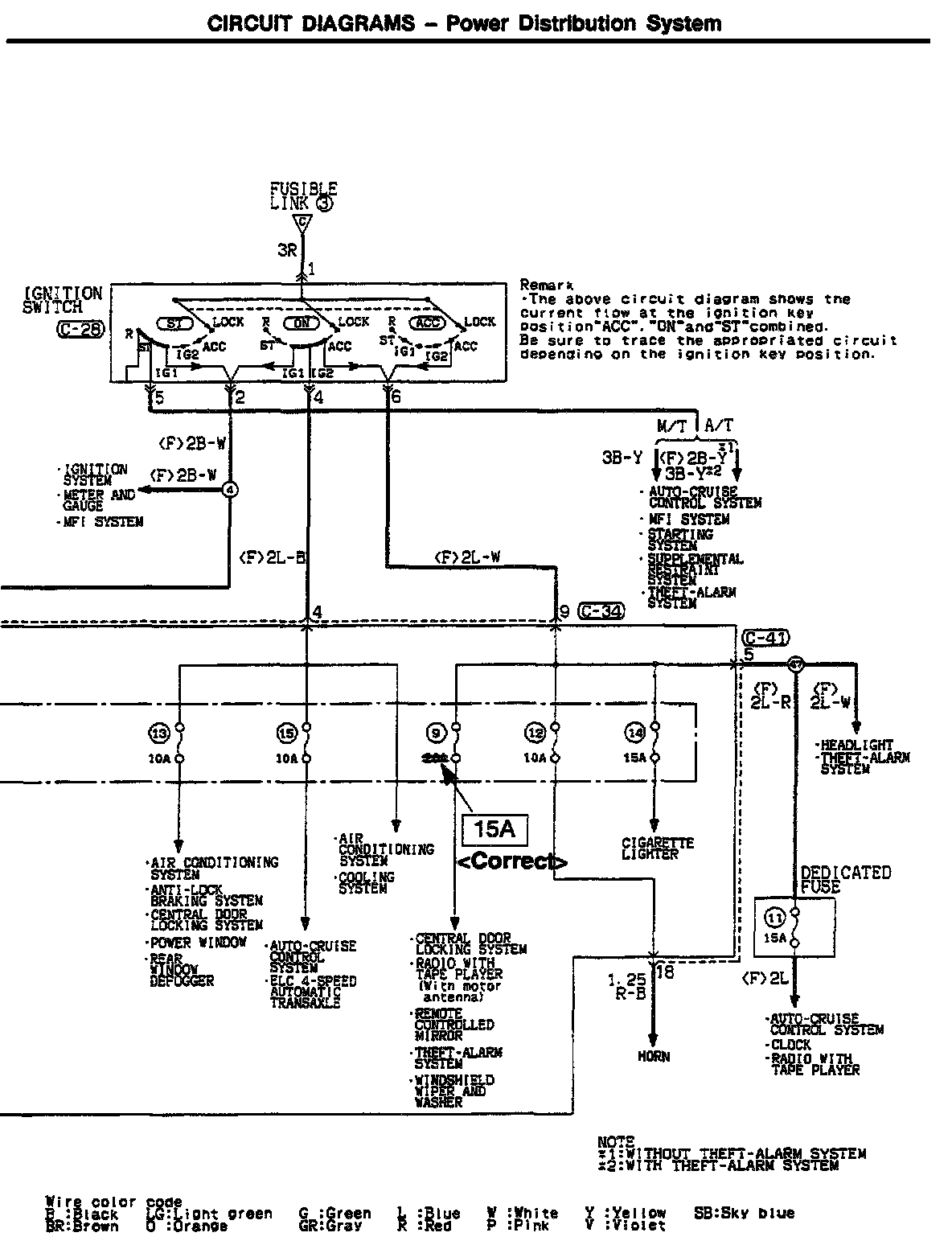

1994-95 Galant, Volume 2, page 79. Make the illustrated fuse capacity correction.





1994-95 Galant, Volume 2, page 152. Make the illustrated fuse capacity correction.

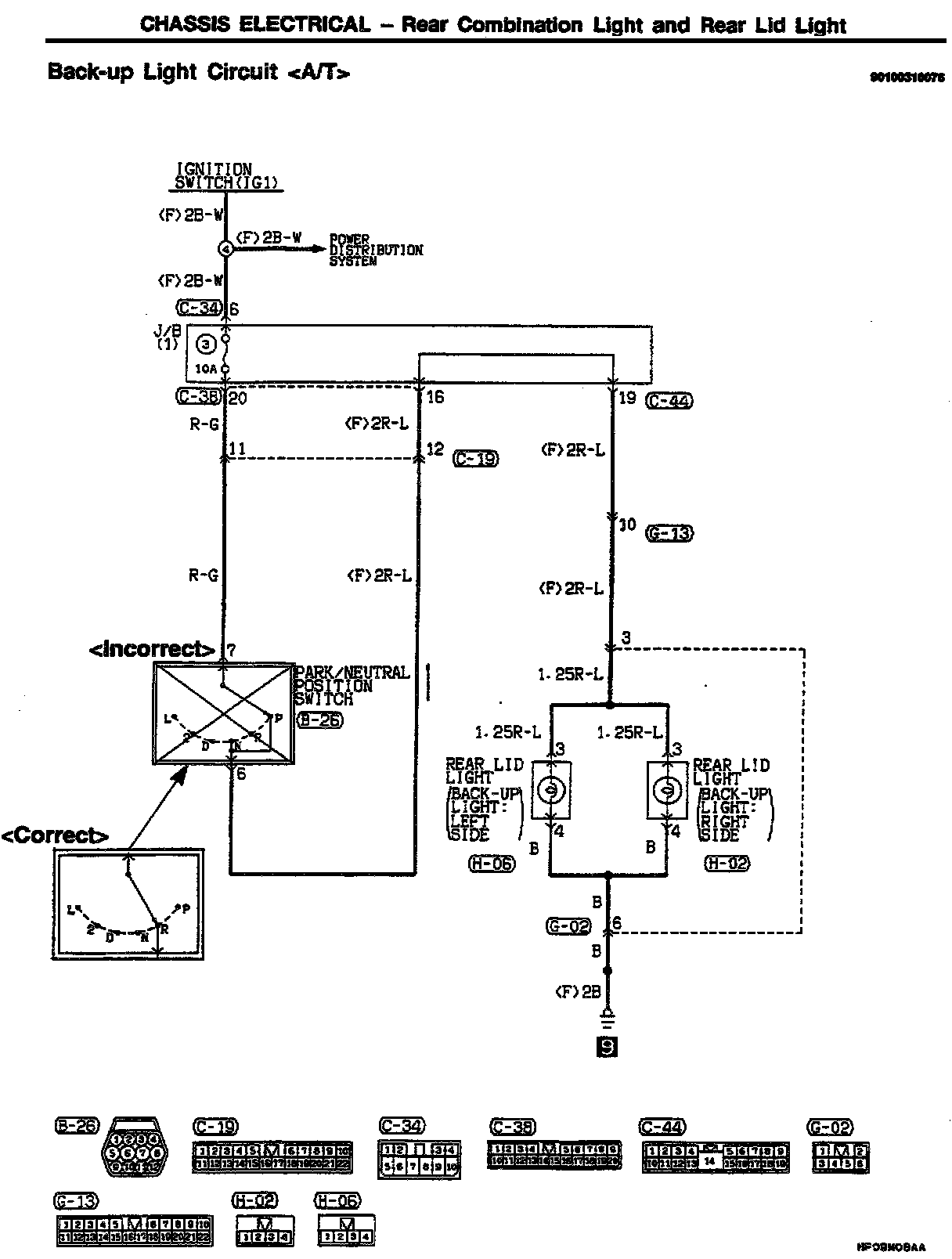

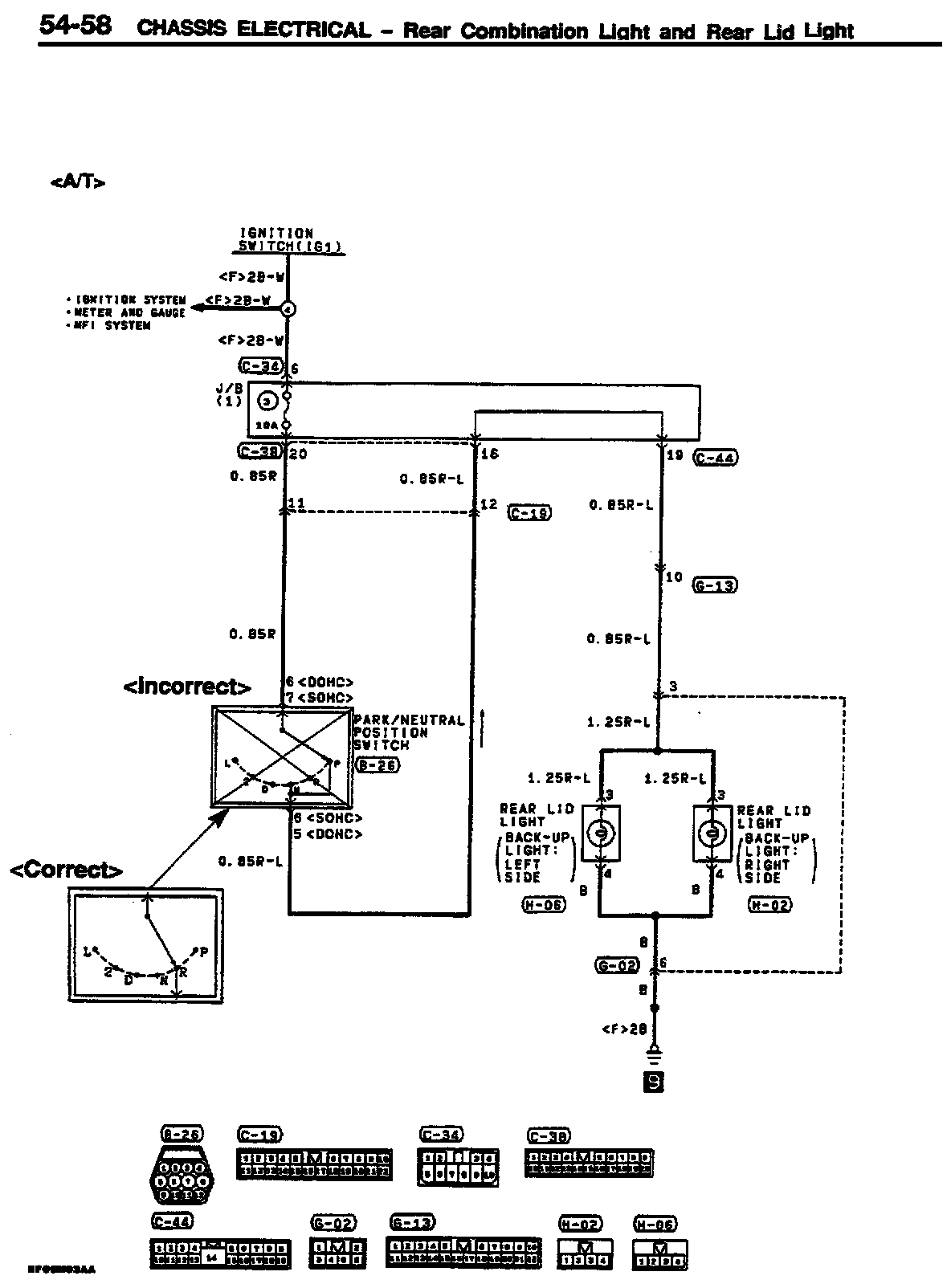

1994-95 Galant, Volume 2, page 54-58. Make the illustrated correction to the park/neutral switch position indication.

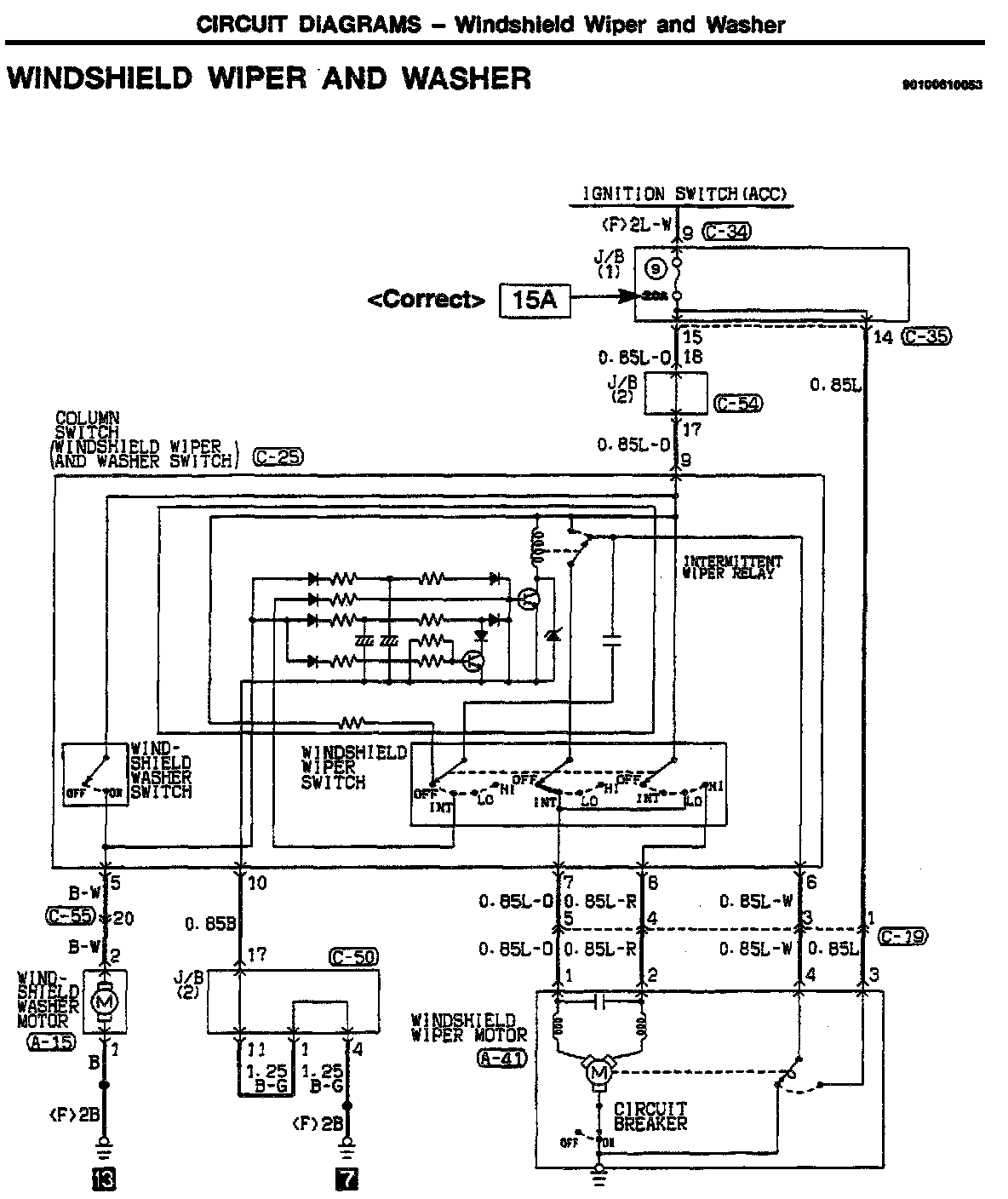

1996 Galant, Volume 2, page 63, and 1997 Galant, Volume 2, page 69. Make the illustrated capacity correction.

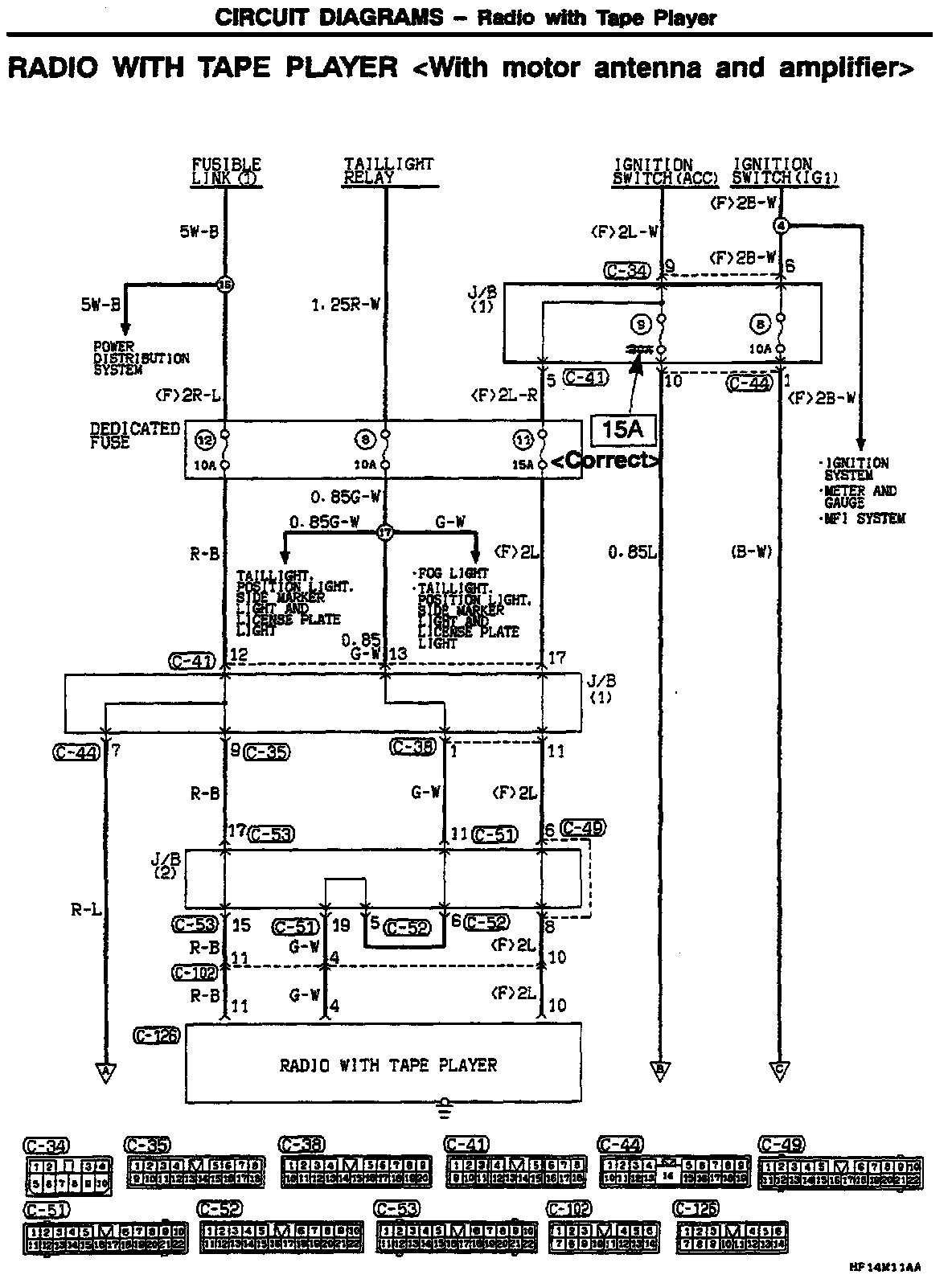

1996 Galant, Volume 2, page 108, and 1997 Galant, Volume 2, page 106. Make the illustrated fuse capacity correction.

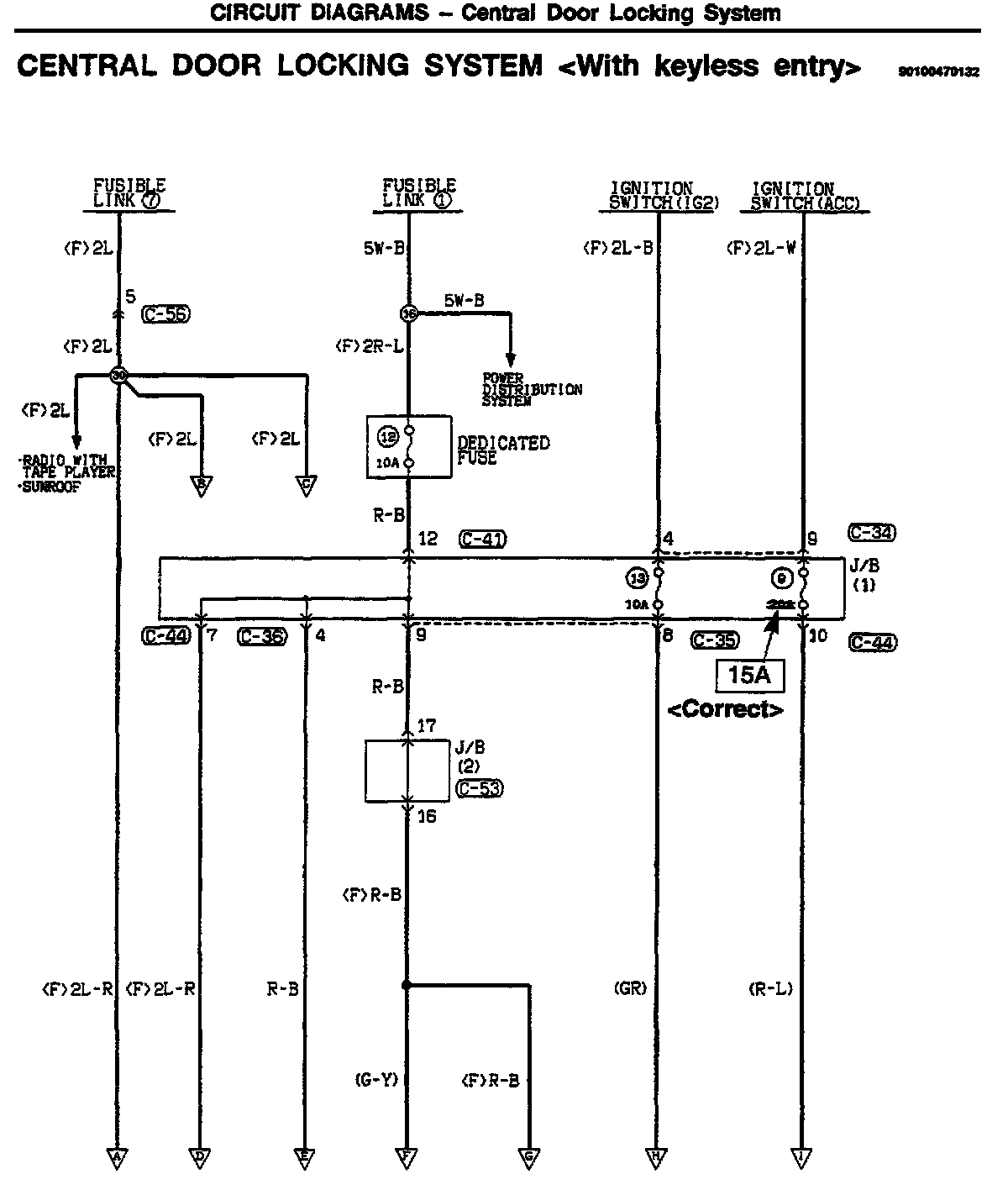

1996 Galant, Volume 2, page 126, and 1997 Galant, Volume 2, page 127. Make the illustrated fuse capacity correction.





1996 Galant, Volume 2, page 128, and 1997 Galant, Volume 2, page 128. Make the illustrated fuse capacity correction.





1996 Galant, Volume 2, page 54-60, and 1997 Galant, Volume 2, page 179. Make the illustrated correction to the park/neutral switch position indication.





1996 Galant, Volume 2, page 54-102, and 1997 Galant, Volume 2, page 198. Make the illustrated fuse capacity correction.





1996 Galant, Volume 2, page 54-143, and 1997 Galant, Volume 2, page 210. Make the illustrated fuse capacity correction.





1996 Galant, Volume 3, page 22, and 1997 Galant, Volume 2, page 202. Make the illustrated fuse capacity correction.
