Mitsubishi
>>
1994
>>
Galant L4-2350cc 2.4L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams

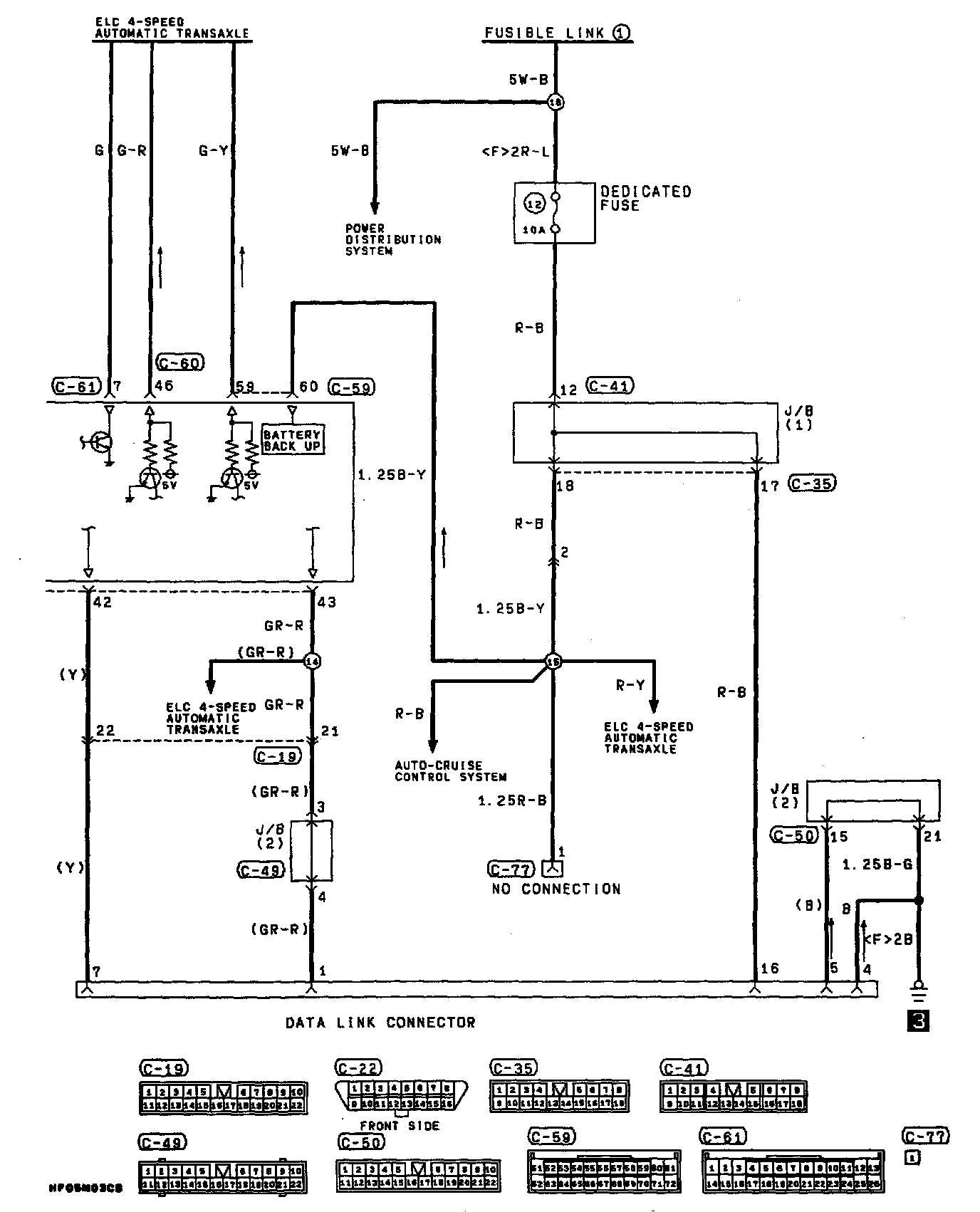

Electrical Diagrams
Part 6 Of 6:
