Home
>>
Mitsubishi
>>
1994
>>
Galant L4-2350cc 2.4L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

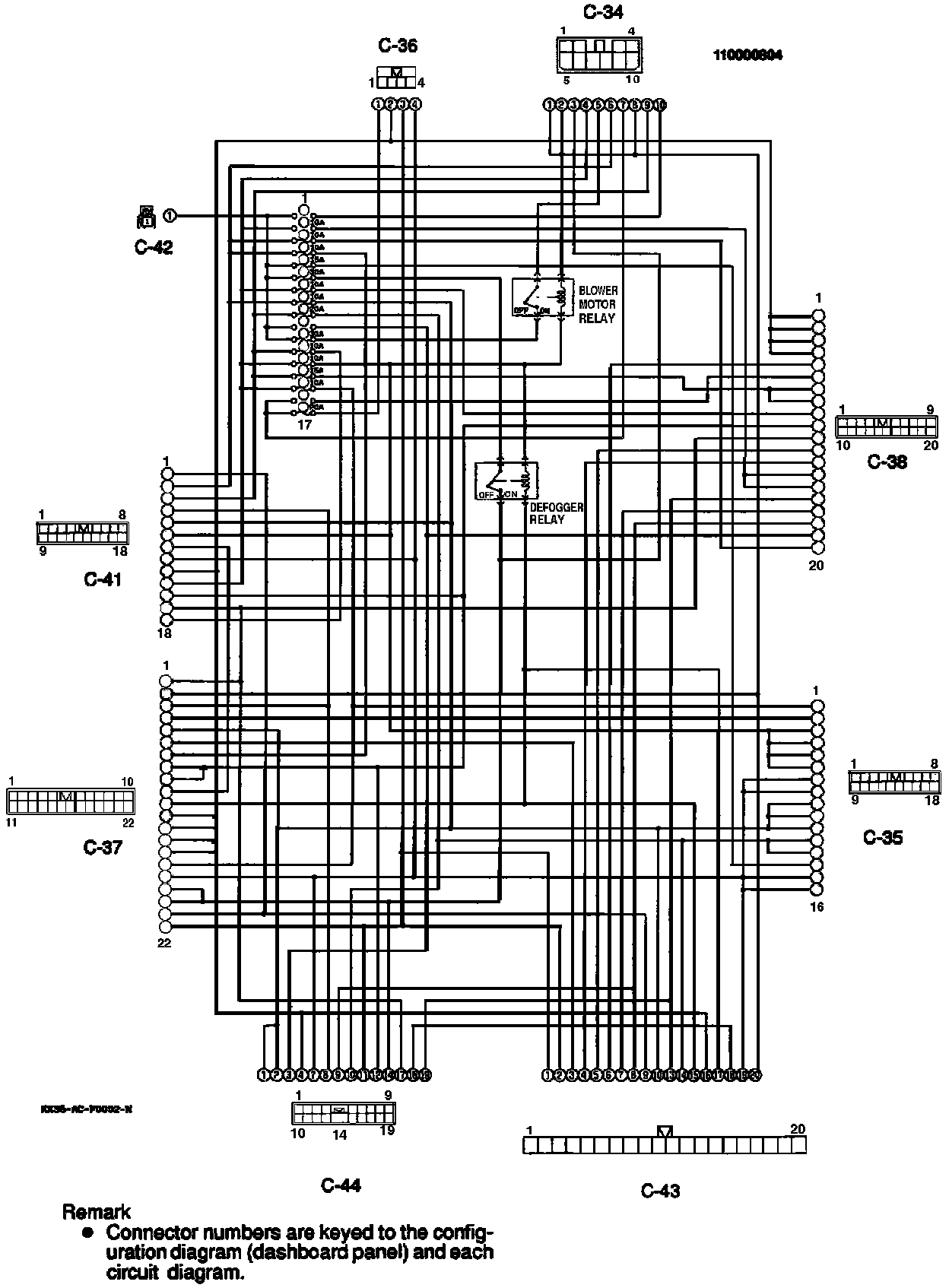

Junction Block 1 Without ETACS:

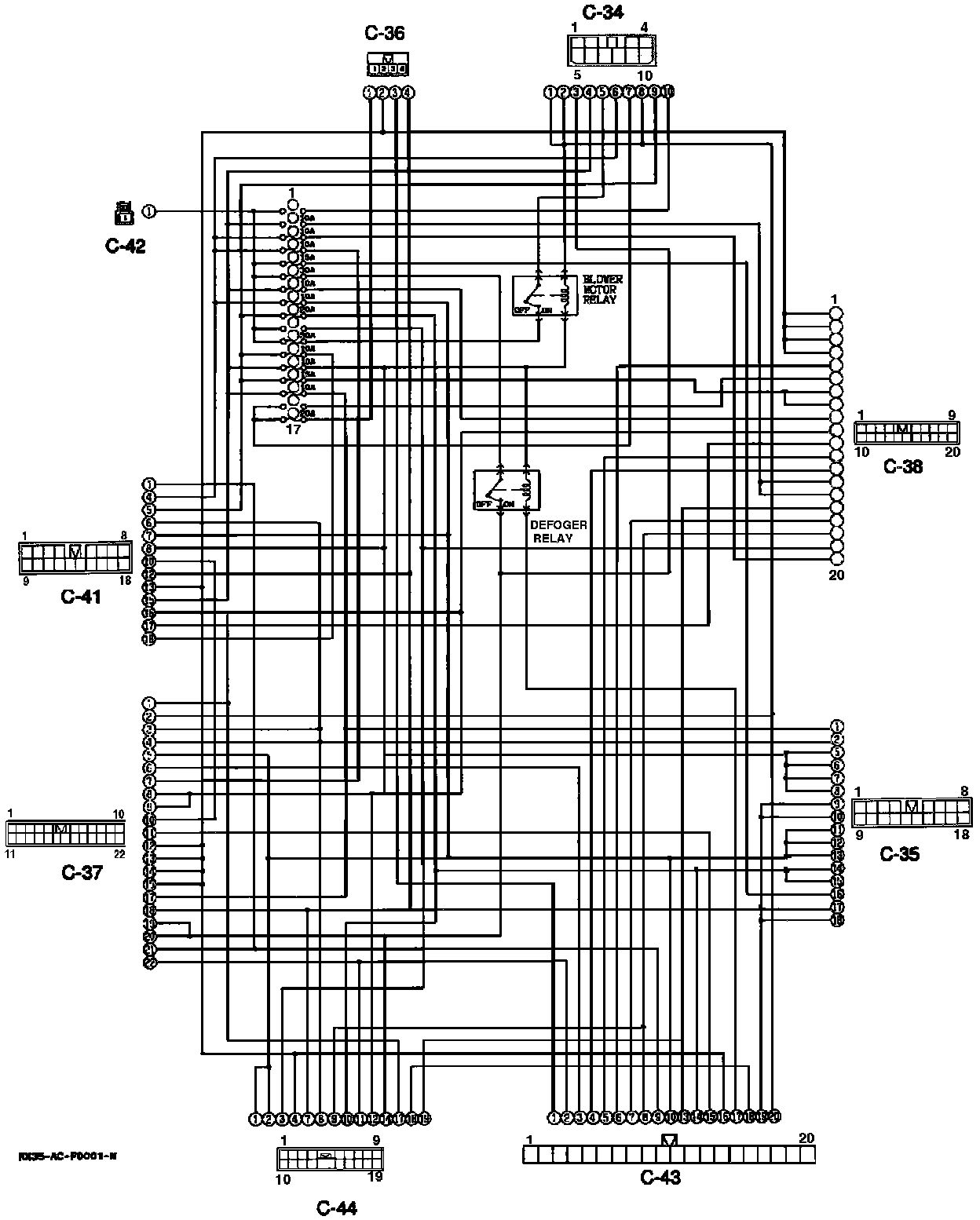

Junction Block 1 With ETACS:

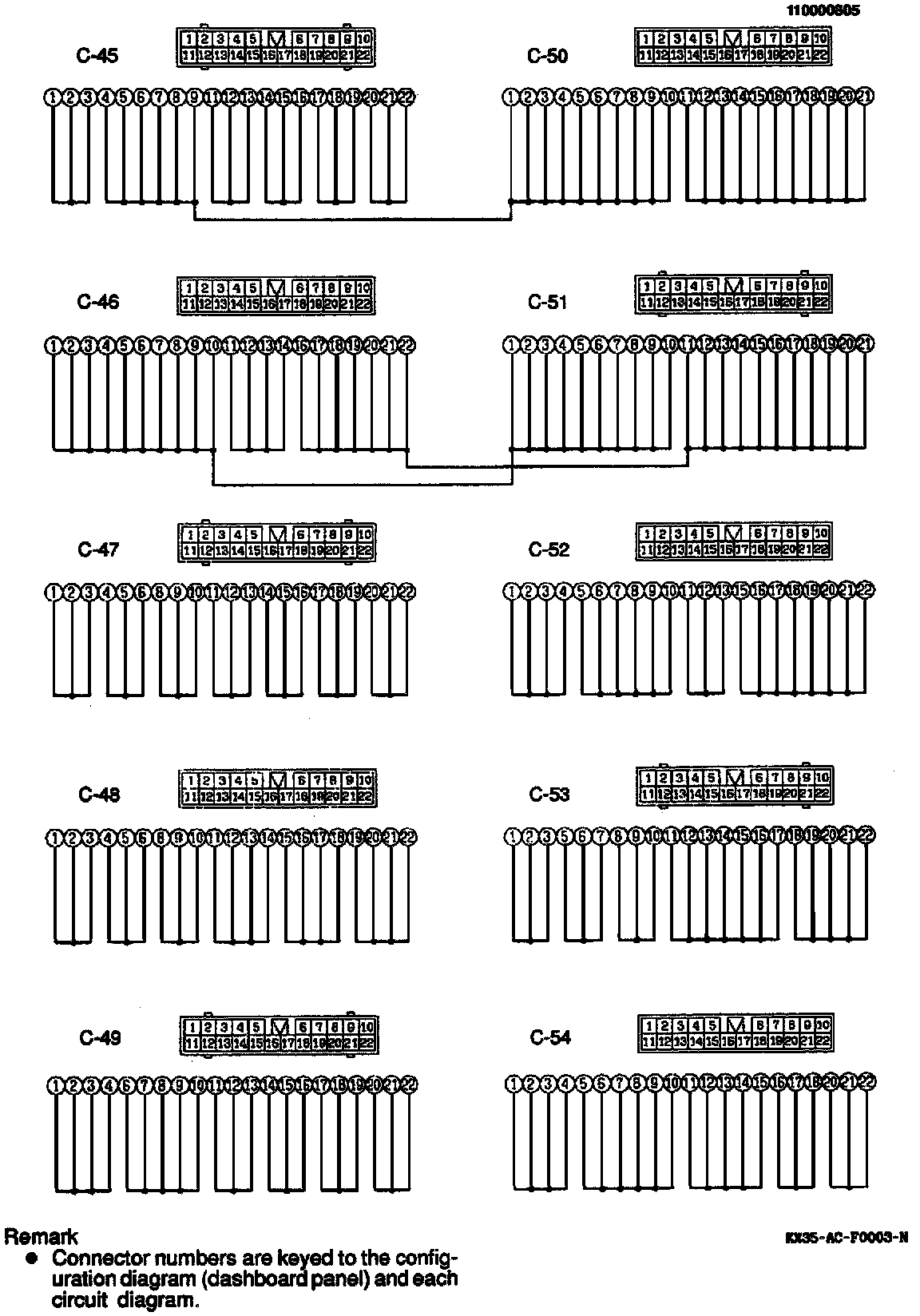

Junction Block 2:
