Rear Combination and Lid Light

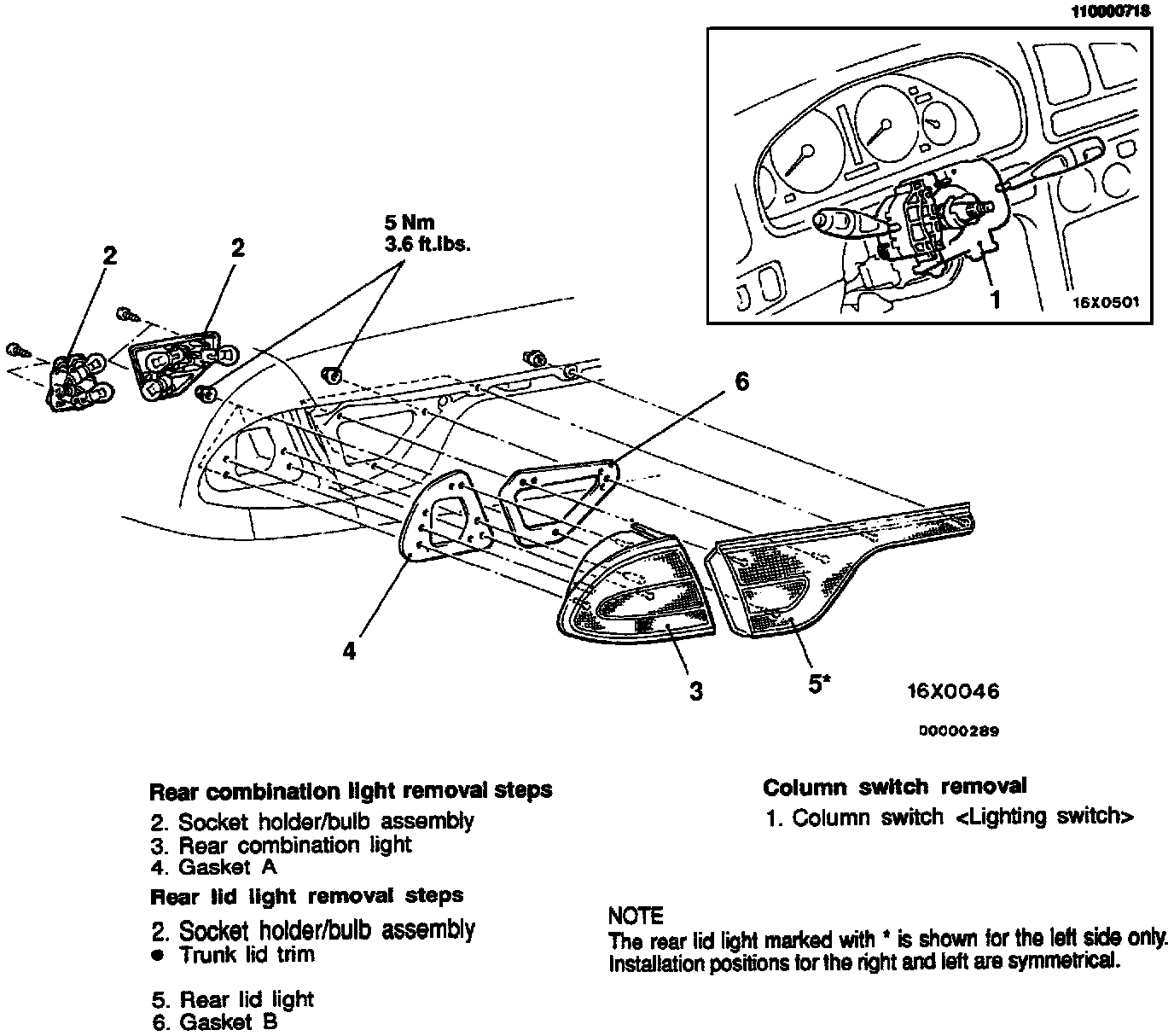

Rear Combination Light And Rear Lid Light - Removal And Installation:

REMOVE
Rear Combination Light
2. Socket holder/bulb assembly
3. Rear Combination light
4. Gasket A

Rear Lid Light
2. Socket holder/bulb assembly
- Trunk lid trim
5. Rear lid light
6. Gasket B

Column Switch
1. Column switch


INSTALL
Rear Combination Light
2. Gasket A
3. Rear Combination light
4. Socket holder/bulb assembly

Rear Lid Light
2. Gasket B
5. Rear lid light
- Trunk lid trim
6. Socket holder/bulb assembly


Column Switch
1. Column switch


NOTE: The rear lid light marked * is shown for the left side only. Installation positions for the right and left are symmetrical.
