Headlamp: Service and Repair

Column Switch:

Headlight, Front Side-Marker And Position Light - Removal And Installation:

REMOVE

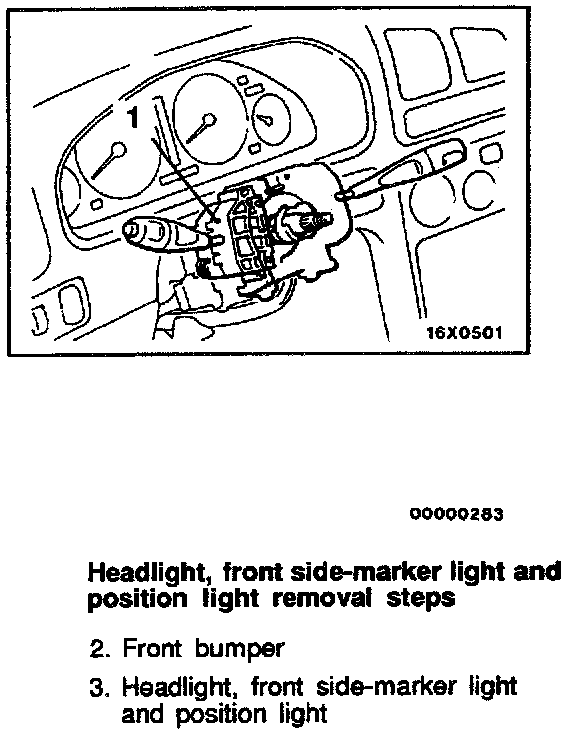

Column Switch
1. Column switch (Lighting switch and dimmer/passing switch)

Headlight, Front Side-Marker and Position Light
5. Front bumper
5. Headlight, front position light assembly



INSTALL
Column Switch
1. Column switch (Lighting switch and dimmer/passing switch)

Headlight, Front Side-Marker and Position Light
2. Headlight, front position light assembly
3. Front bumper
