Horizontal Adjustment

Headlight Aiming - Horizontal Adjustments:

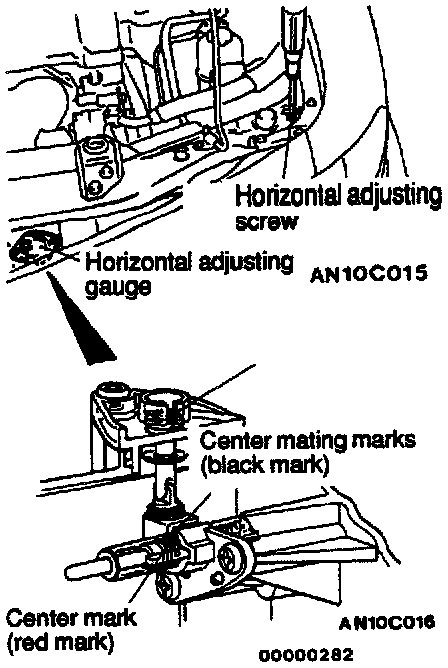

For adjusting the horizontal angle, turn the horizontal adjusting screw until the center mark (red mark) and the center mating mark (black mark) on the horizontal adjusting gauge are aligned.
