Removal Service Point

Air Outlet Center Assembly Removal:

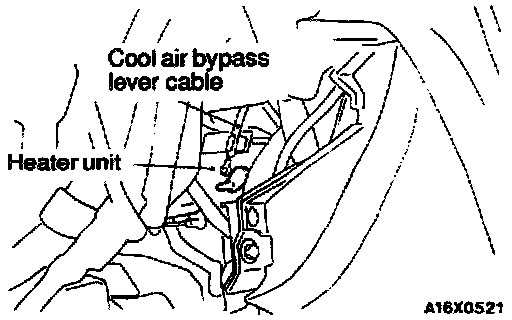

1. Remove the cool air bypass lever cable of the air outlet center assembly at the heater unit side.

Air Outlet Center Assembly Removal:

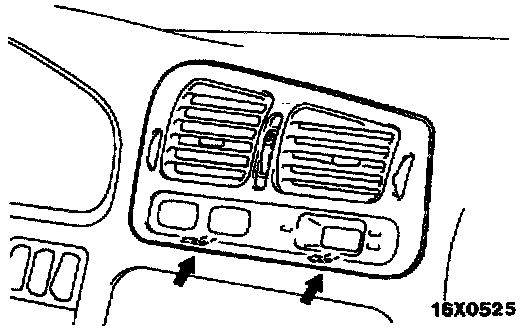

2. Push the springs upwards and remove the air outlet center assembly.
