Installation Service Point

Air Outlet Center Assembly Installation:

1. Install the air outlet center assembly to the instrument panel.

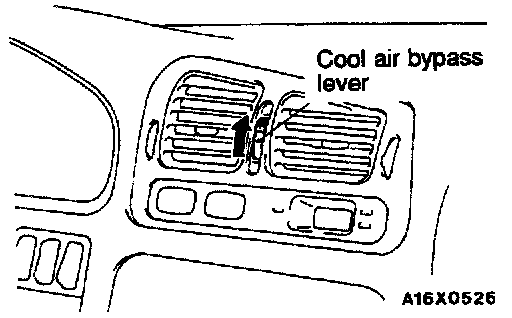

2. Turn the cool air bypass lever of the air outlet center assembly fully upward (in the direction of the arrow).

Air Outlet Center Assembly Installation:

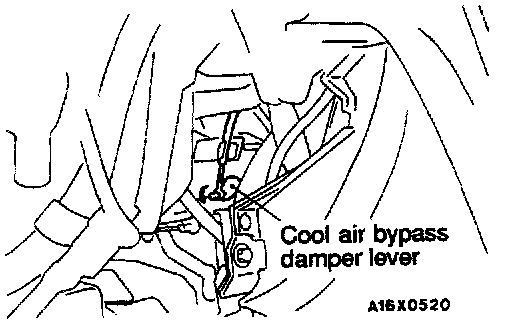

3. Turn the cool air bypass damper lever at the heater unit side fully downward (in the direction of the arrow), and install the cool air bypass lever cable.
