Evaporator Case: Service and Repair

1. Discharge refrigerant from system as outlined in Heating and Air Conditioning.
2. Disconnect evaporator inlet pipe and suction hose. Plug openings to prevent contamination.

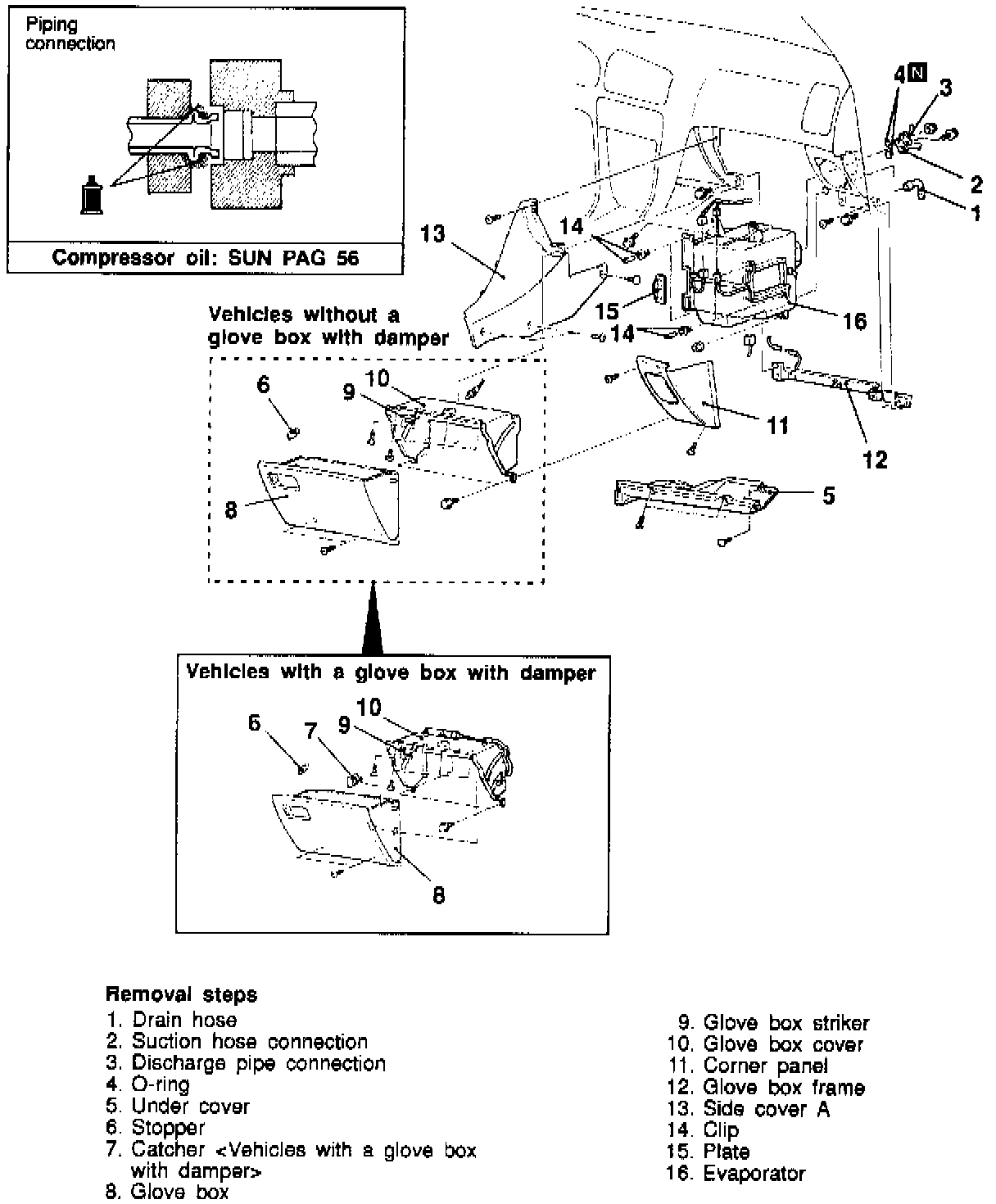

Fig. 20 Evaporator Core Replacement:

3. Remove components in numbered sequences shown in Fig. 20.
4. Reverse procedure to install, recharge A/C system with refrigerant as outlined in Heating and Air Conditioning section.
