Condenser Fan: Testing and Inspection

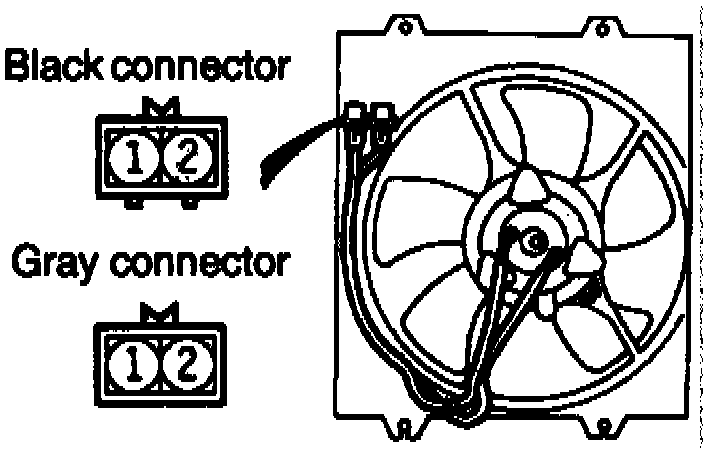

Fig. 15 Condenser Fan Motor Terminal Identification:

1. Connect battery (+) to gray connector terminal 1,Fig. 15, while grounding terminal 2; motor should operate smoothly and quietly at low speed.
2. Connect battery (+) to black connector terminal 1, Fig. 15, while grounding terminal 2; motor should operate smoothly and quietly at high speed.
3. If results are not as indicated, a new fan motor should be installed.
