Water Pump: Service and Repair

1. Relieve fuel system pressure as outlined under Technician Safety Information, then drain engine coolant into a suitable container.
2. Remove timing belt as outlined under Timing Belt.

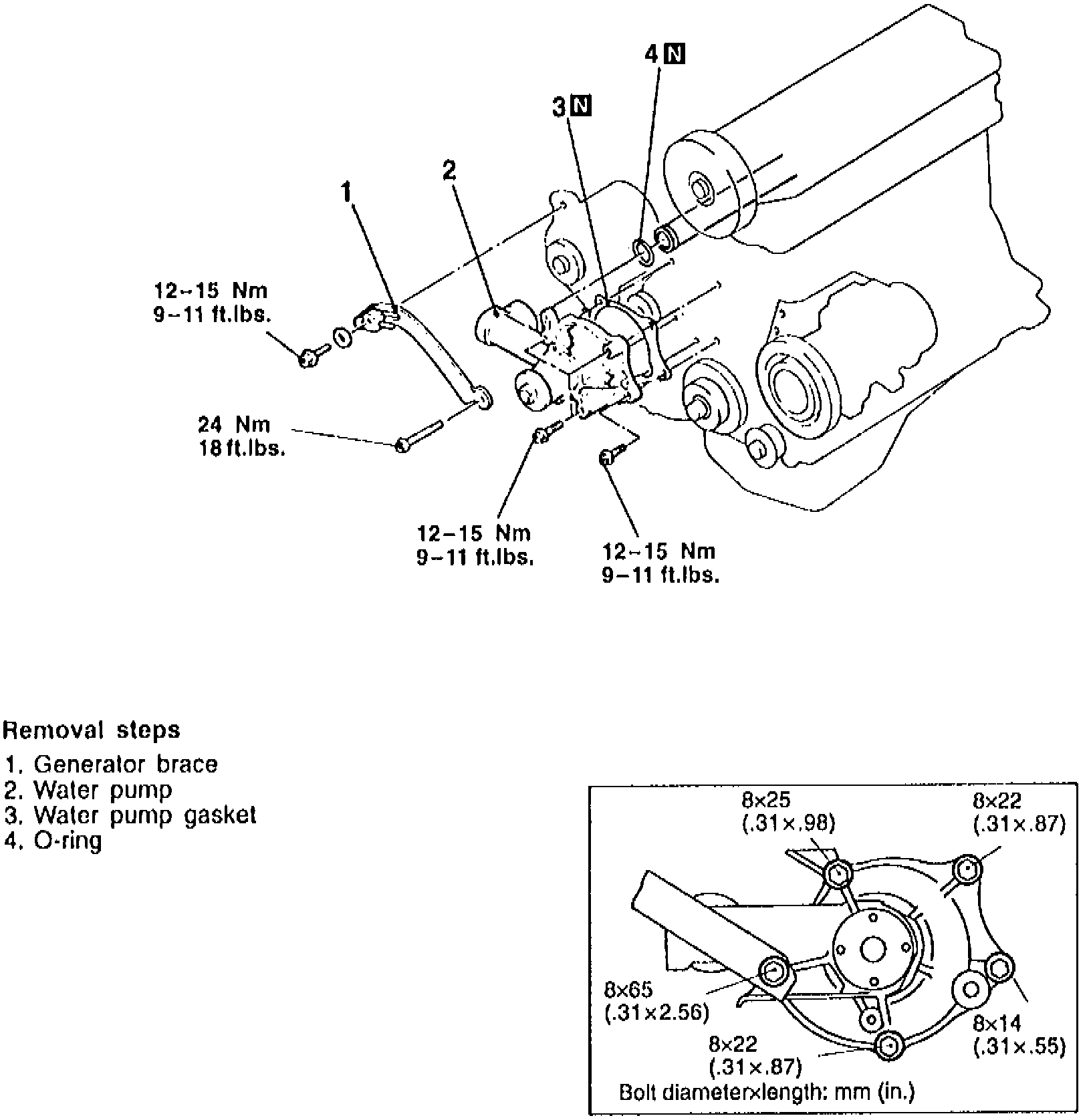

Fig. 43 Water Pump Replacement:

3. Remove water pump in numbered sequence shown, Fig. 43.
4. Reverse procedure to install.
