Removal and Replacement

1. Relieve fuel system pressure as outlined under Technician Safety Information, then scribe and remove hood.
2. Drain engine coolant into a suitable container, then remove transaxle.
3. Remove radiator as outlined under Radiator, then the engine lower cover.

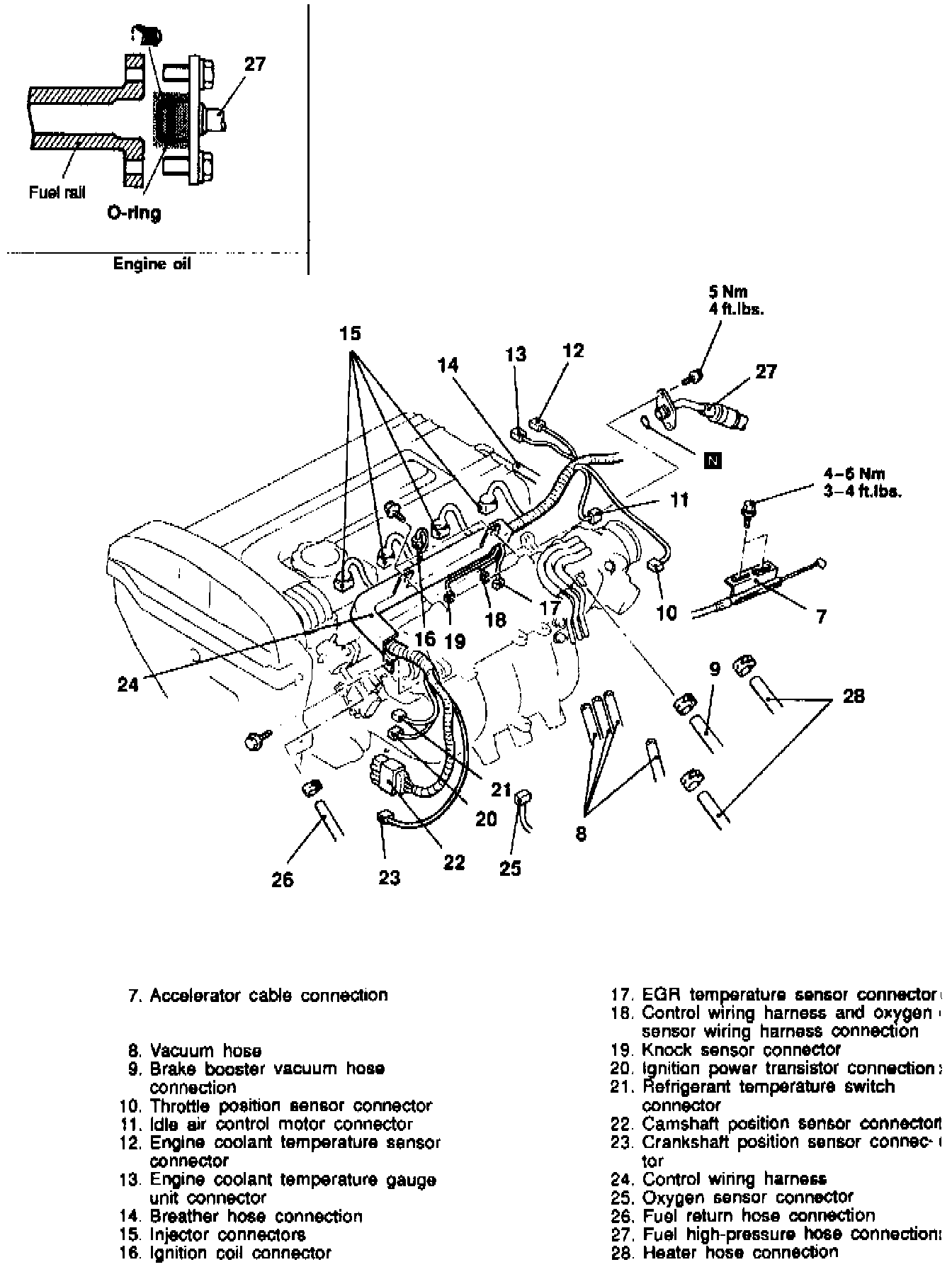

Fig. 6 Engine Assembly Replacement (Part 1 Of 3):

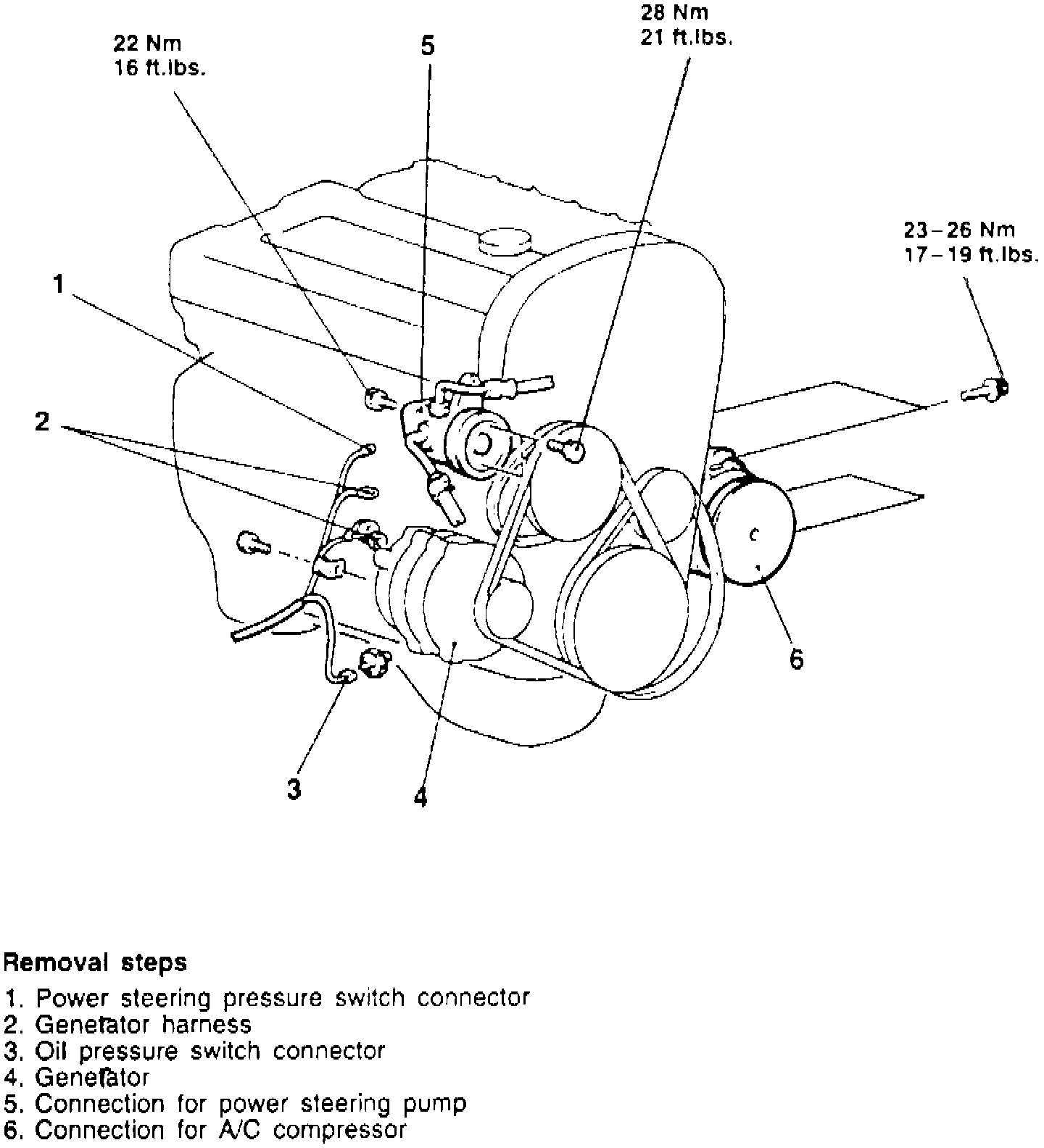

Fig. 6 Engine Assembly Replacement (Part 2 Of 3):

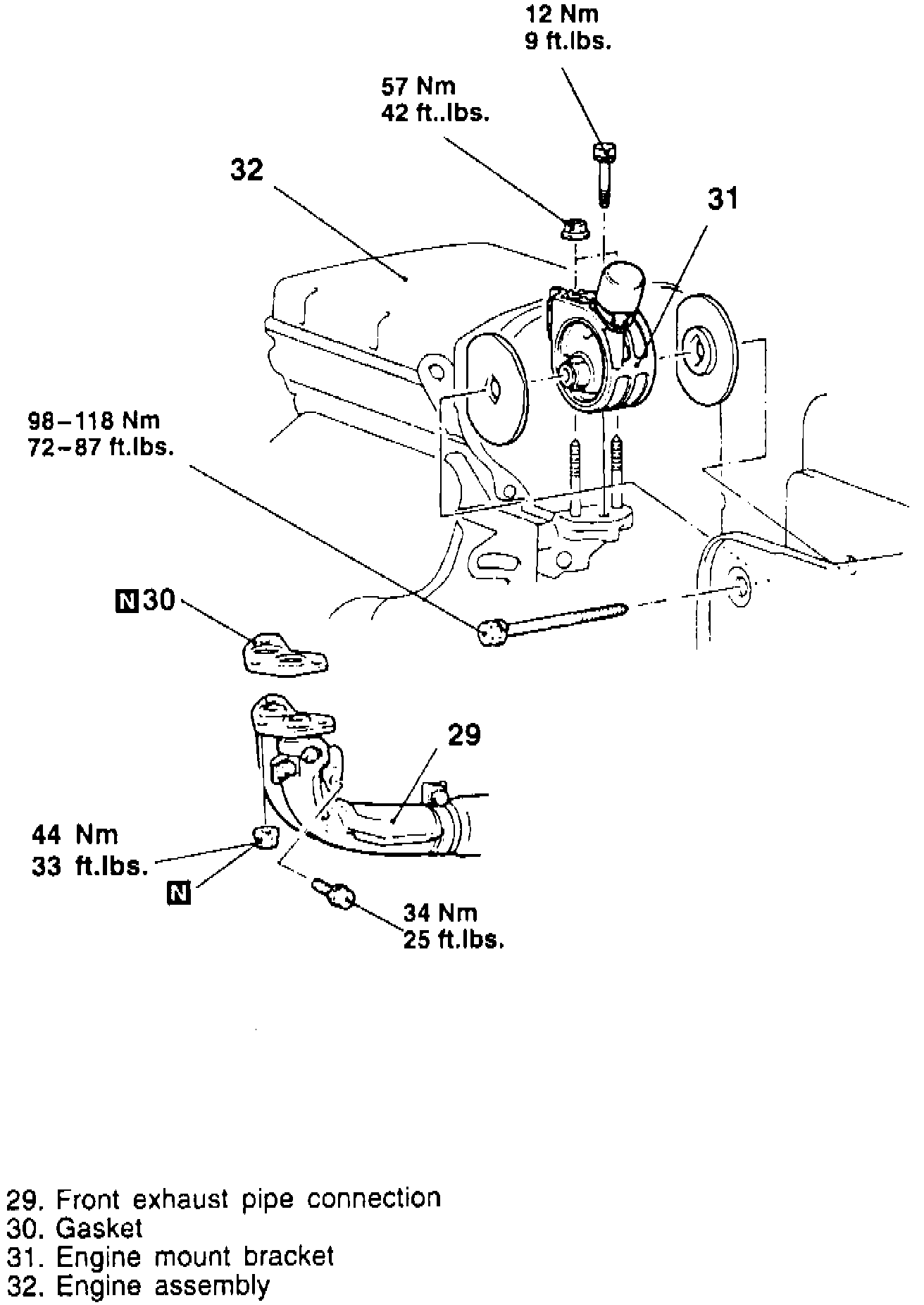

Fig. 6 Engine Assembly Replacement (Part 3 Of 3):

4. Remove engine assembly in numbered sequence shown in Fig. 6, noting the following:
a. When removing power steering pump and A/C compressor, leave hoses attached and support aside.
b. Ensure engine is supported when transaxle is removed. A block of wood placed between oil pan and a floor jack will suffice until a suitable engine lifting device can be installed.
5. Reverse procedure to install. Tighten all engine mounting bolts and nuts to specifications.
