Intake Manifold: Service and Repair

1. Relieve fuel system pressure as outlined under Technician Safety Information, then drain engine coolant into a suitable container.

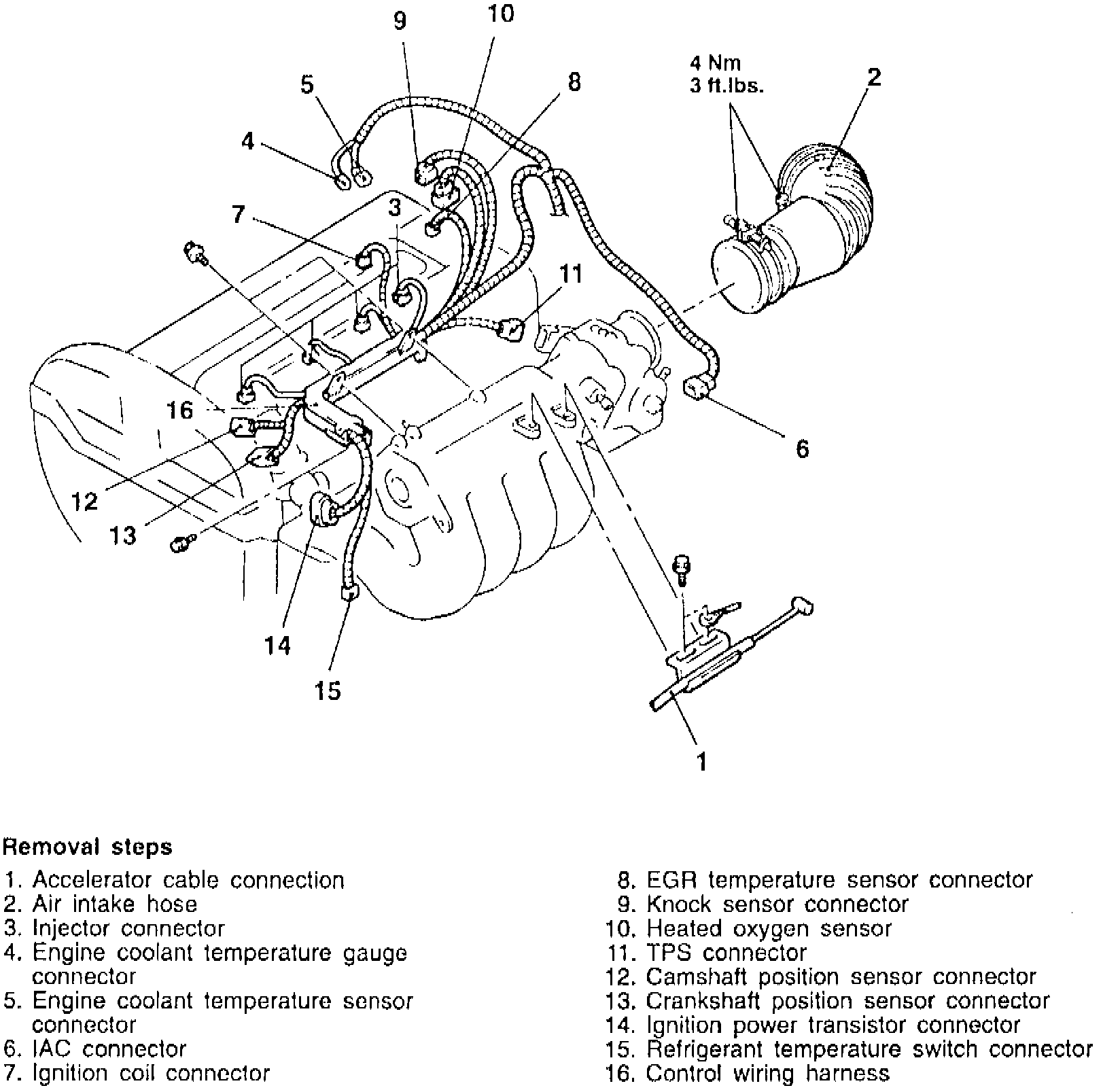

Fig. 8 Intake Manifold Replacement (Part 1 Of 2):

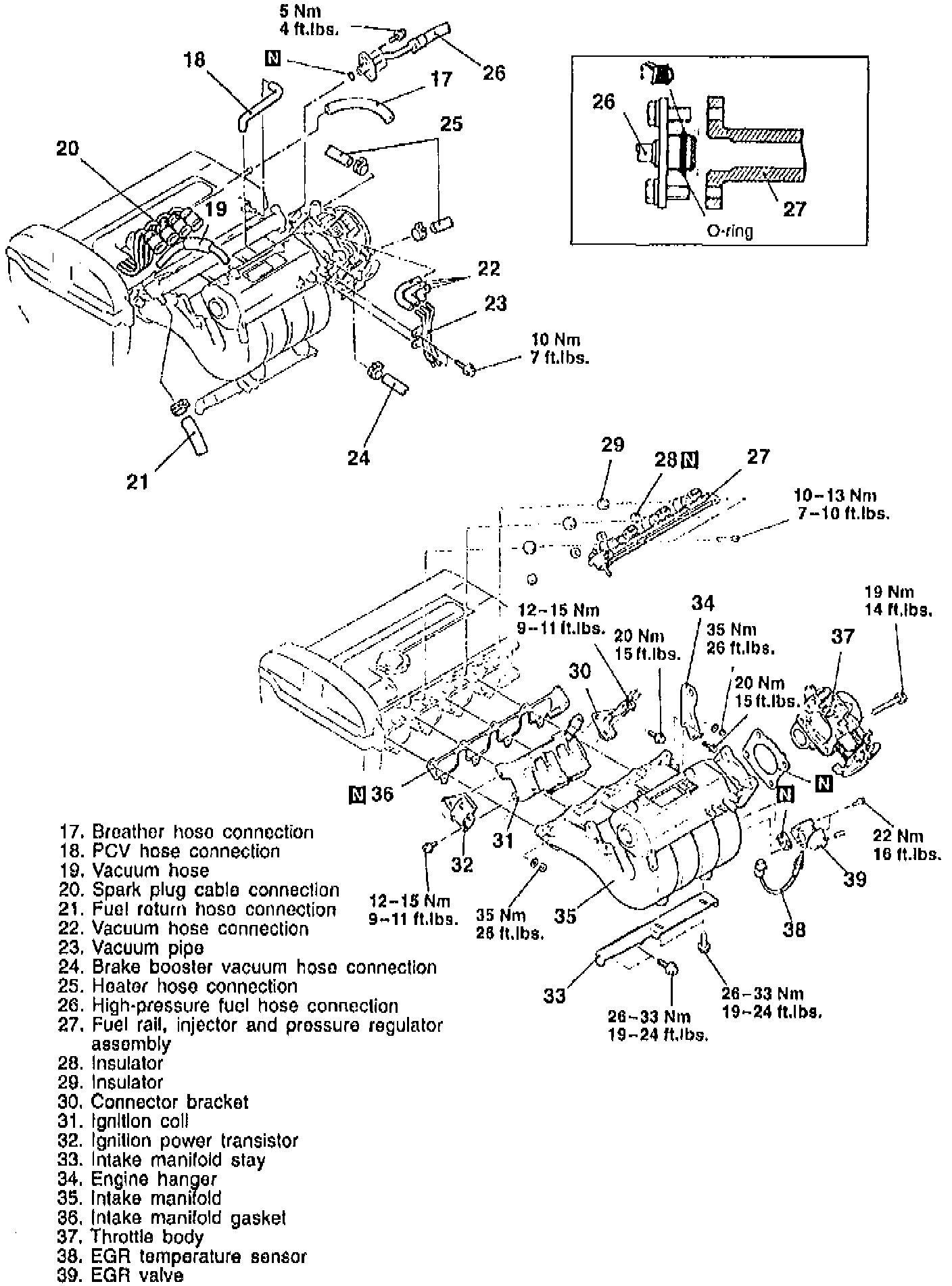

Fig. 8 Intake Manifold Replacement (Part 2 Of 2):

2. Remove intake manifold in numbered sequence shown, Fig. 7 and 8, then inspect cylinder head mating surface for distortion using a straightedge and a feeler gauge. Distortion must be below 0.008 inch.
3. Reverse procedure to install. Tighten all bolts and nuts to specifications.
