Turn Signals

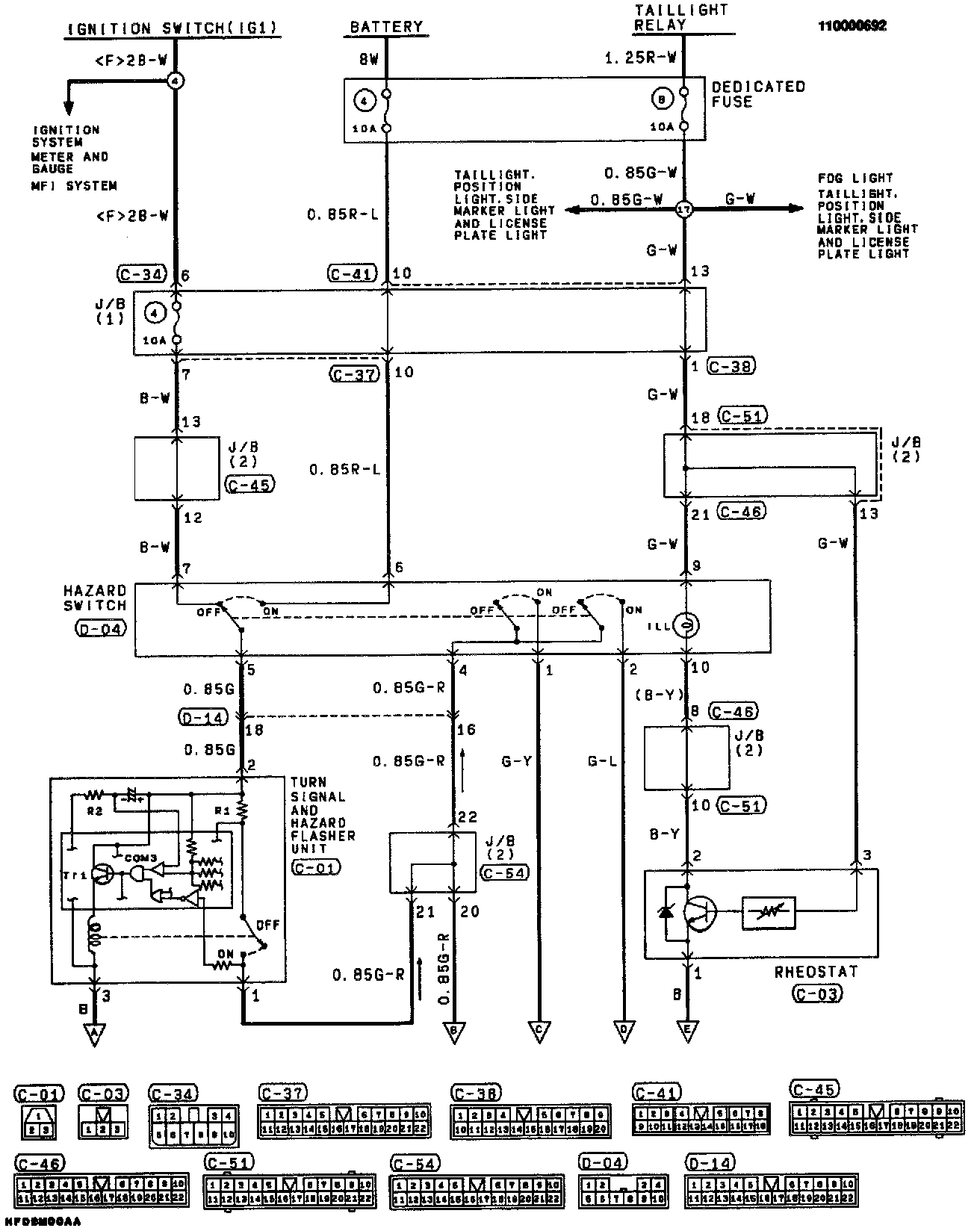

Turn-Signal Light And Hazard Light Circuit (Part 1 Of 2):

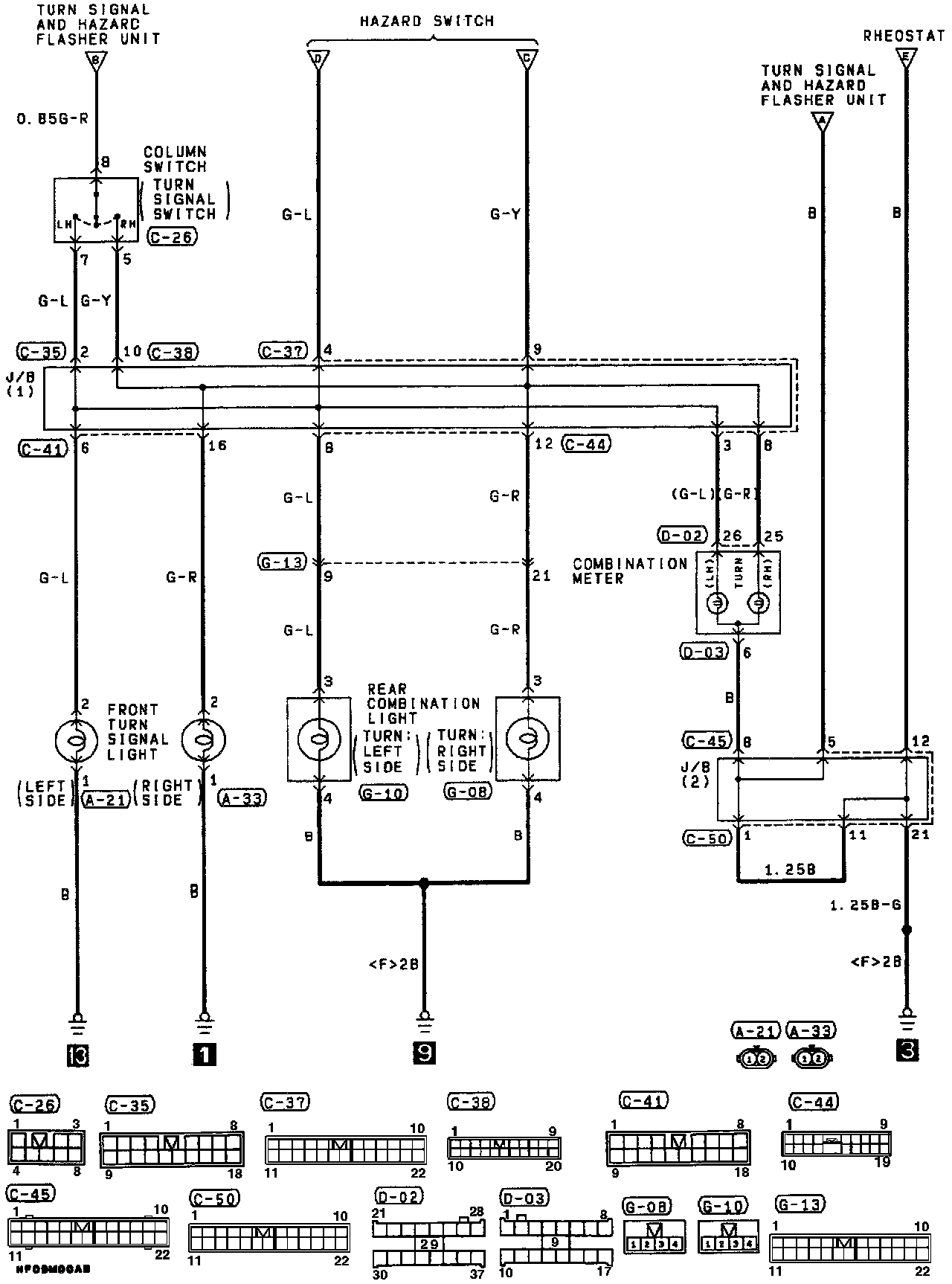

Turn-Signal Light And Hazard Light Circuit (Part 2 Of 2):
