Steering
Steering

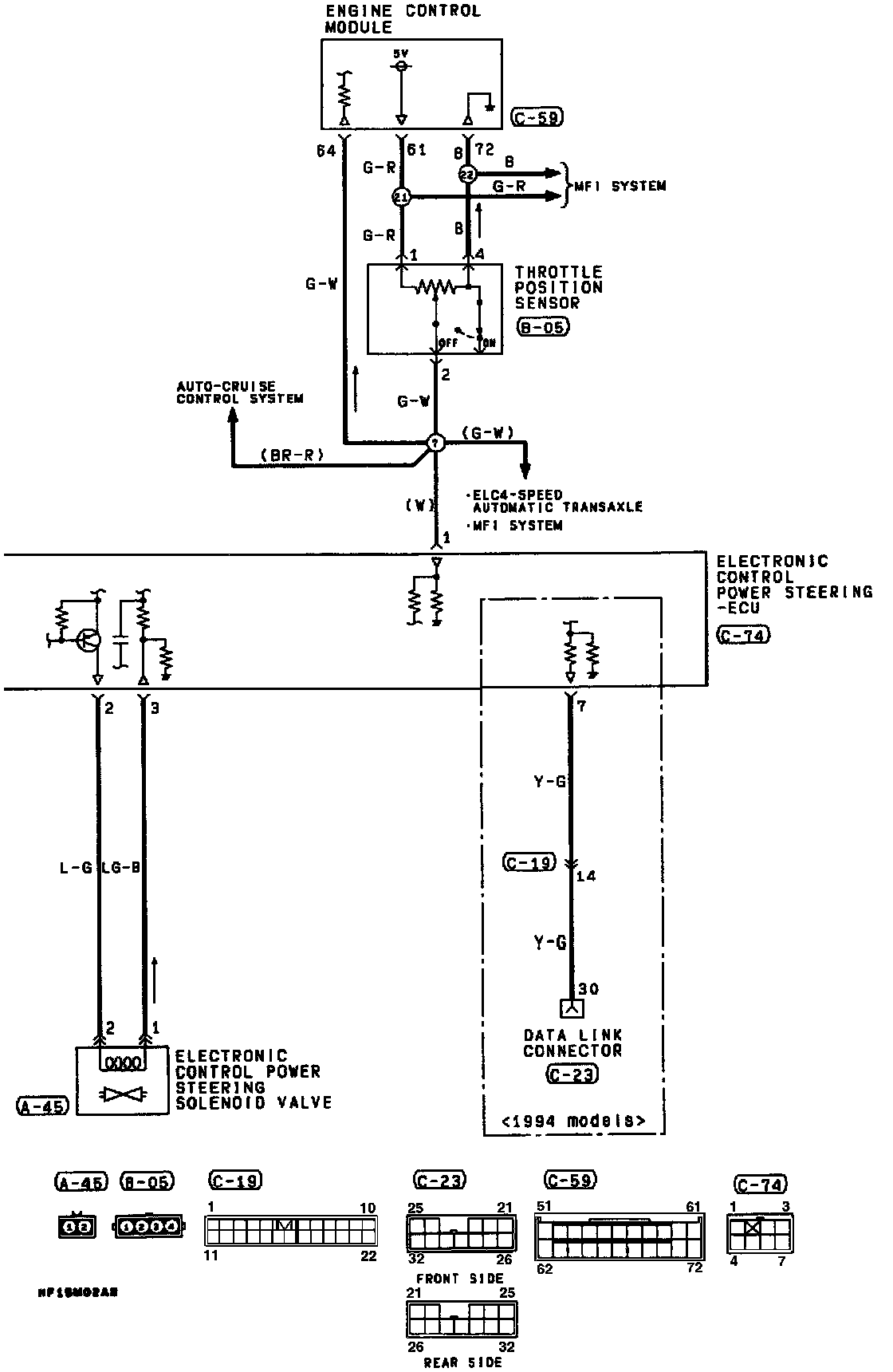

Electronic Control Power Steering (EPS) (Part 1 Of 2):

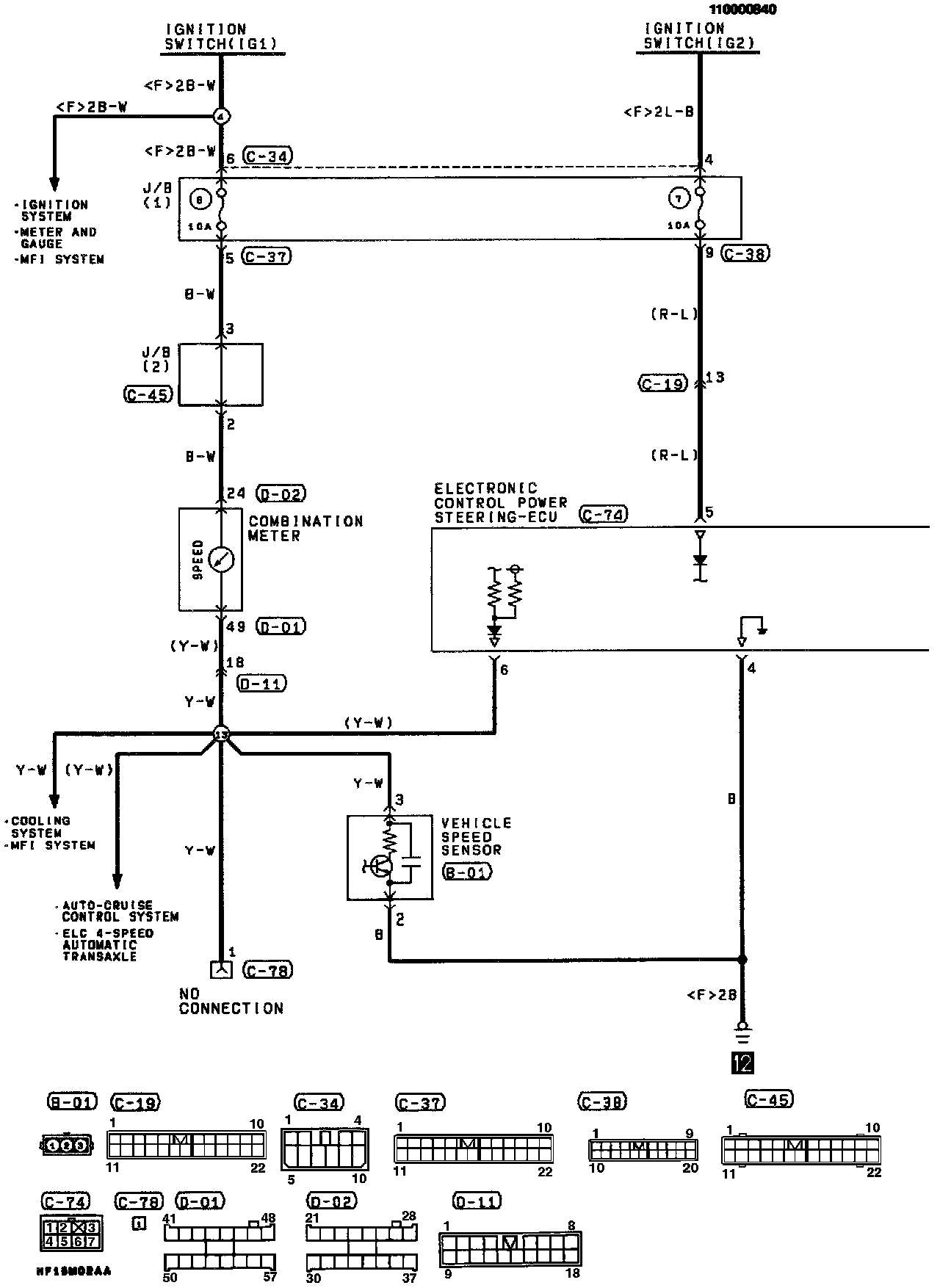

Electronic Control Power Steering (EPS) (Part 2 Of 2):
