Home >> Mitsubishi >> 1994 >> Galant L4-2350cc 2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> Ignition Switch >> Ignition Key Reminder Warning Buzzer Circuit >> Vehicles With ETACS-ECU

Vehicles With ETACS-ECU

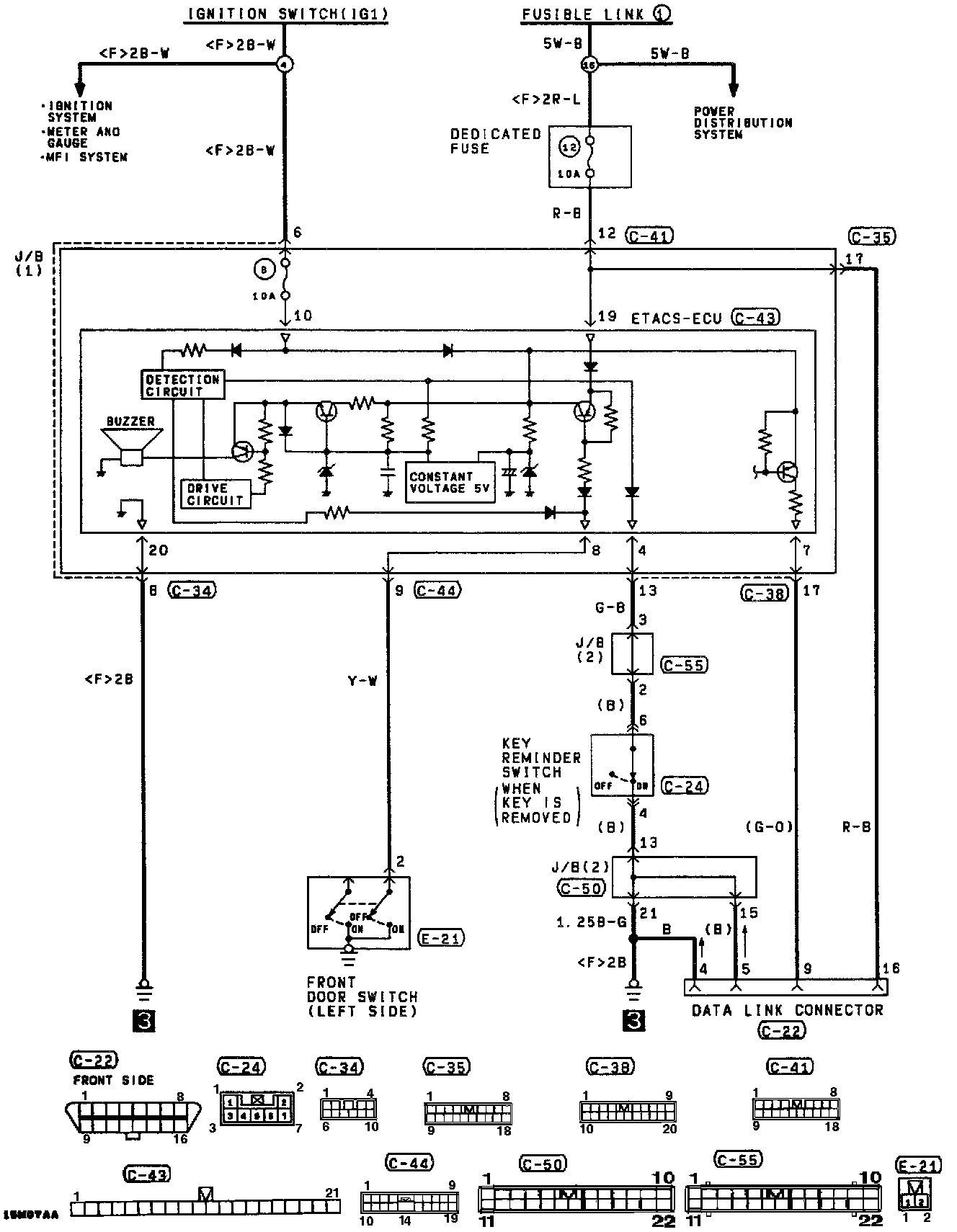

Ignition Key Reminder Warning Buzzer Circuit:
