Power Locks

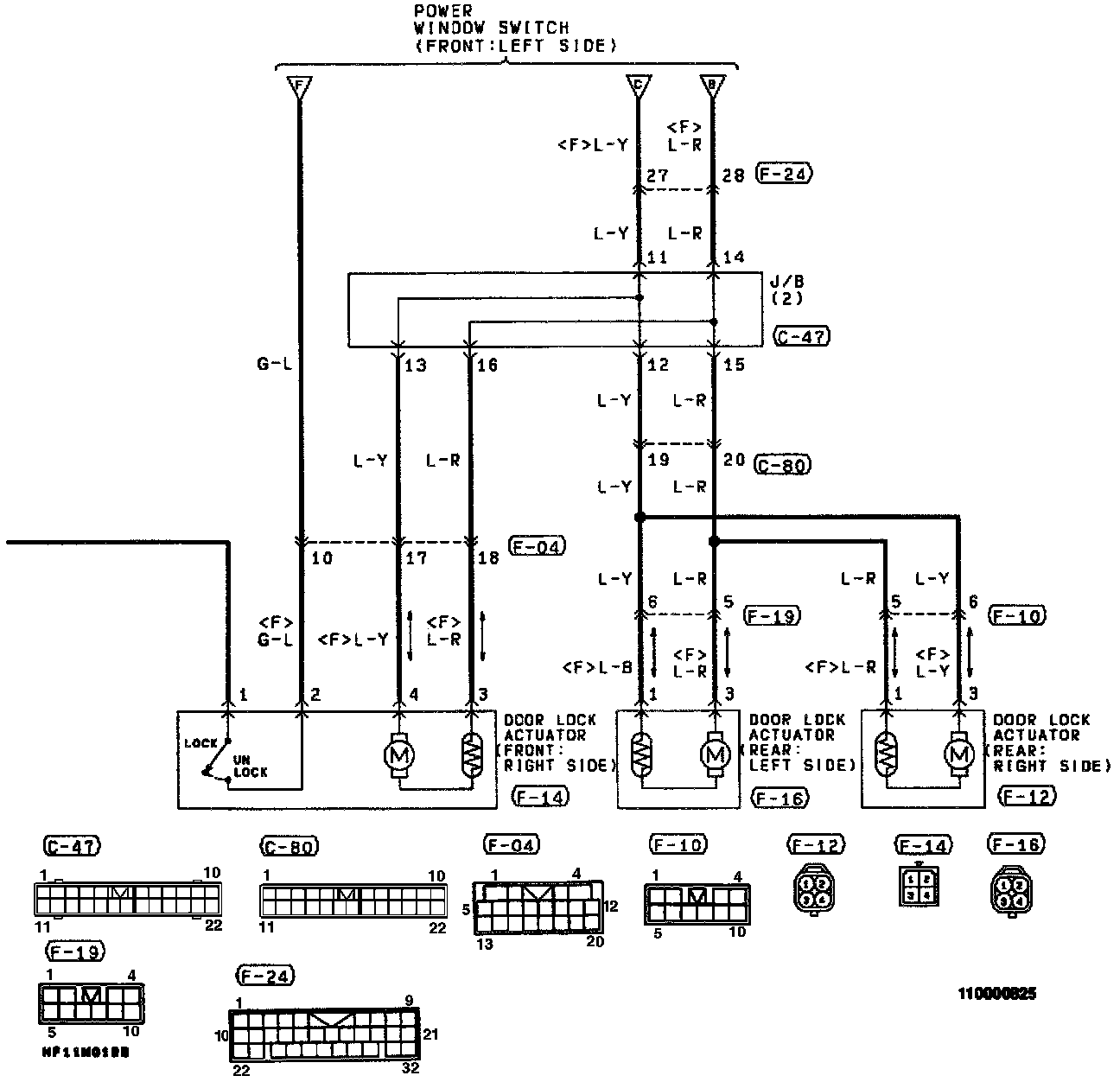

Central Door Locking System (Part 1 Of 4):

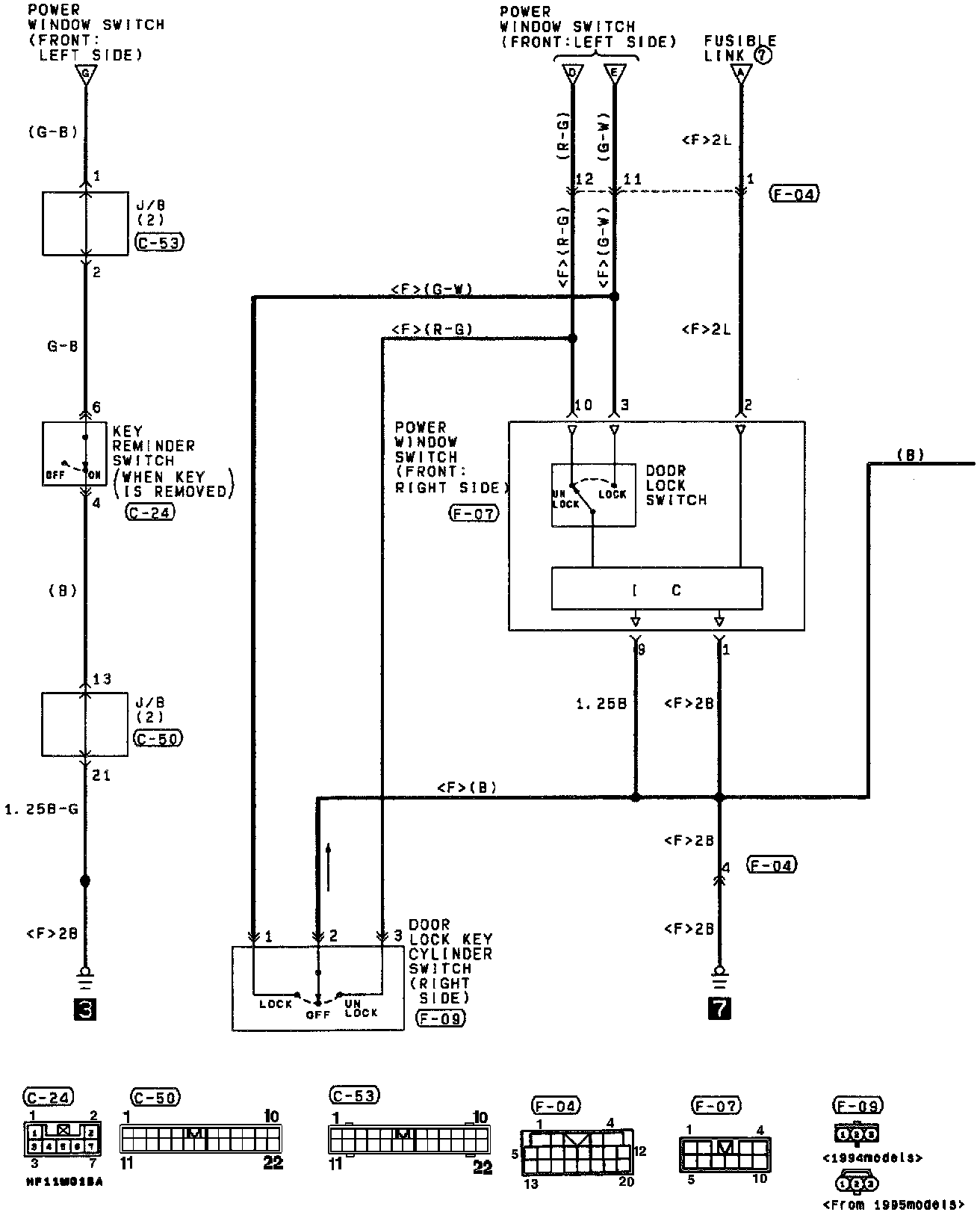

Central Door Locking System (Part 2 Of 4):

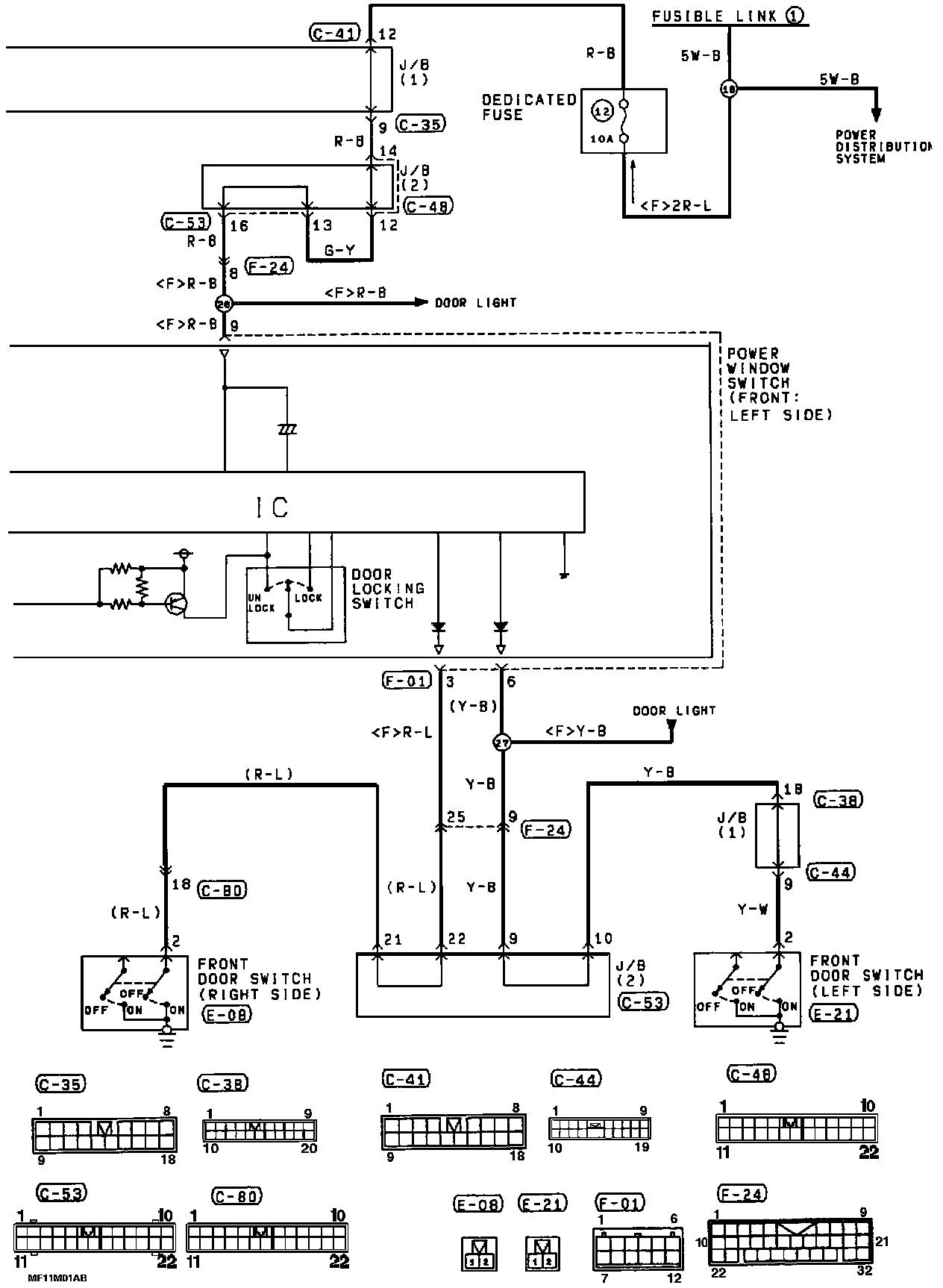

Central Door Locking System (Part 3 Of 4):

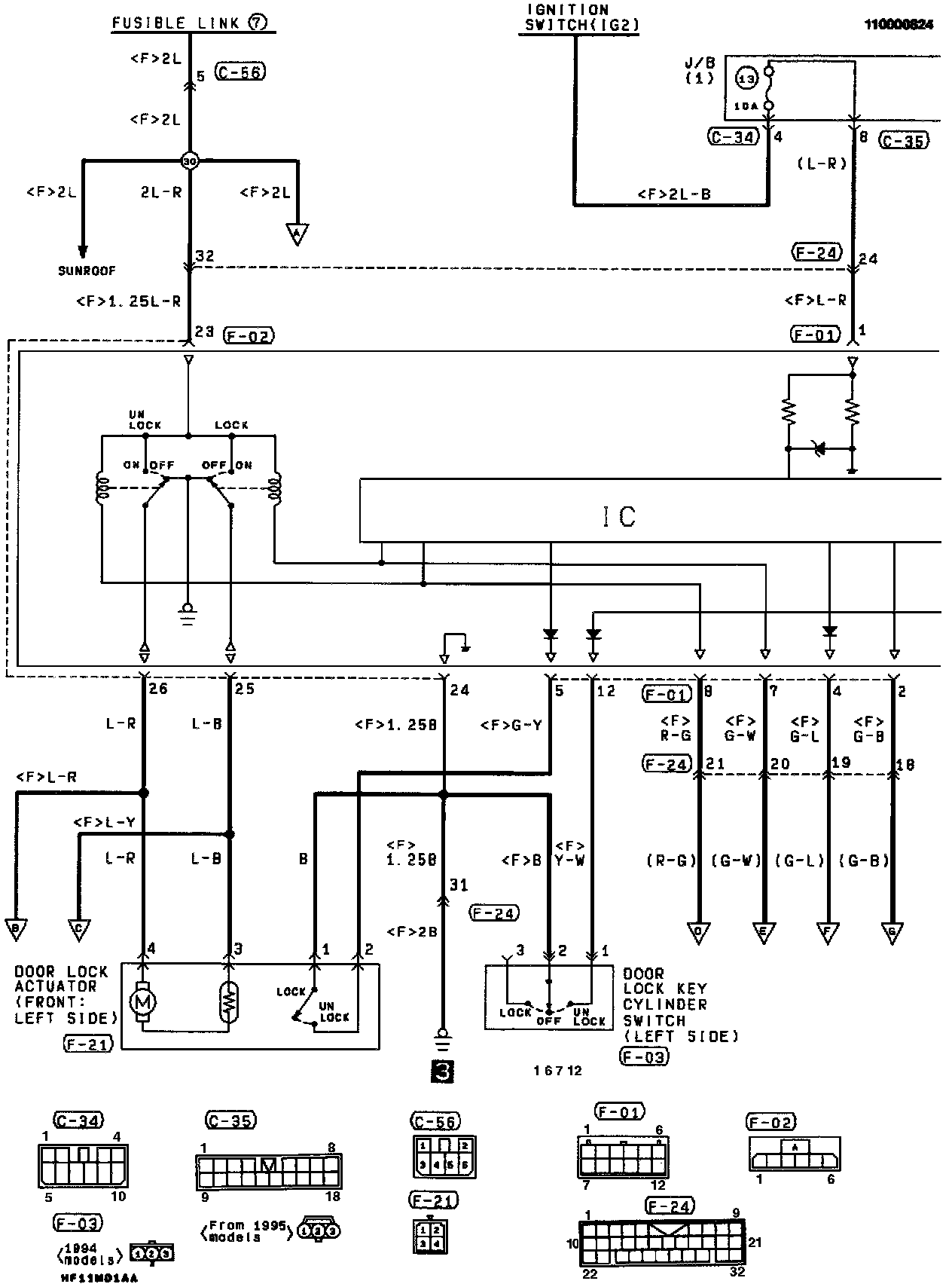

Central Door Locking System (Part 4 Of 4):

For information regarding the RKE system see TSb # 98-42A-008 and 93-00-009.
