License Plate Lamp

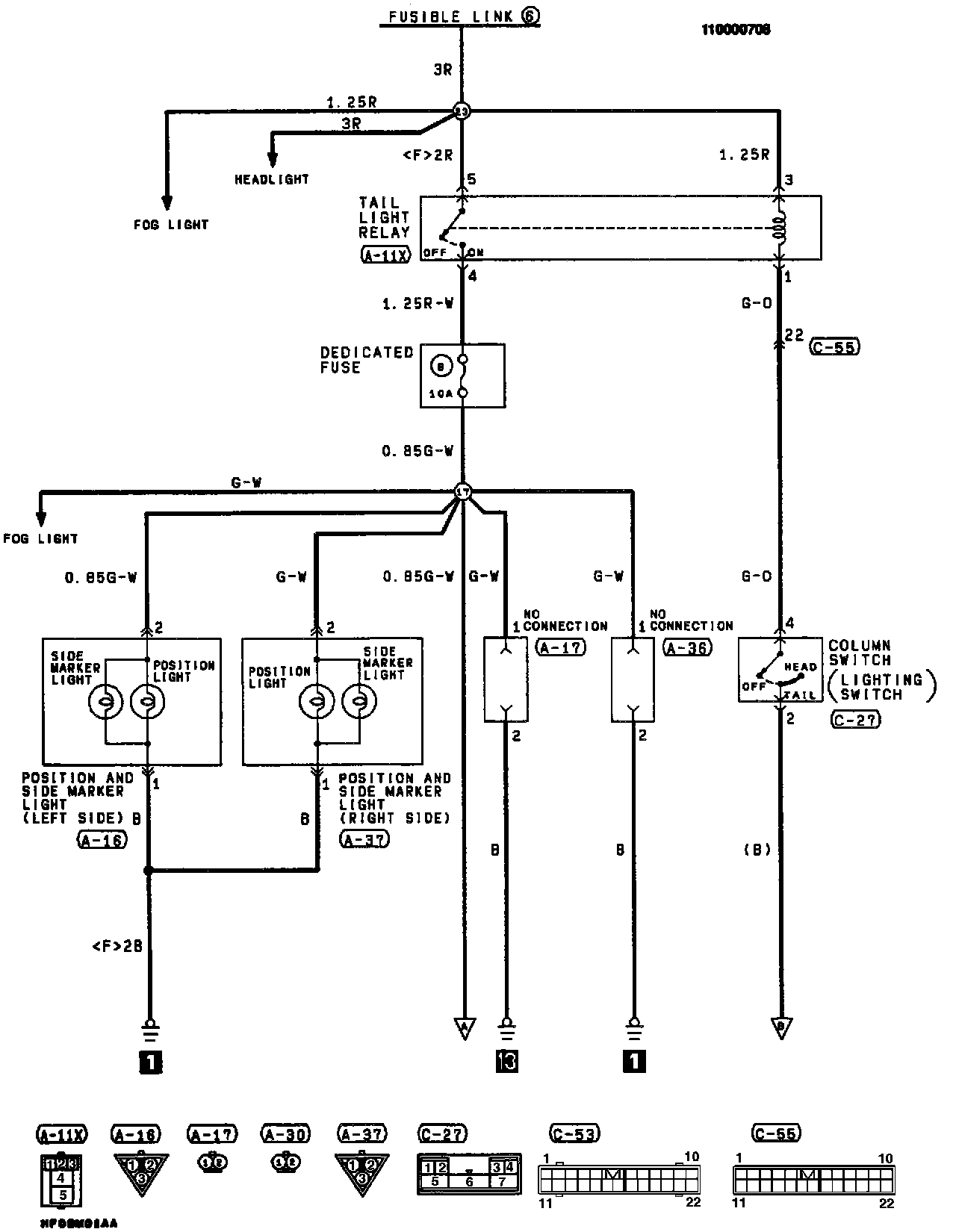

Taillight, Position Light, Side-marker Light And License Pate Light Circuit (Part 1 Of 4):




Taillight, Position Light, Side-marker Light And License Pate Light Circuit (Part 2 Of 4):

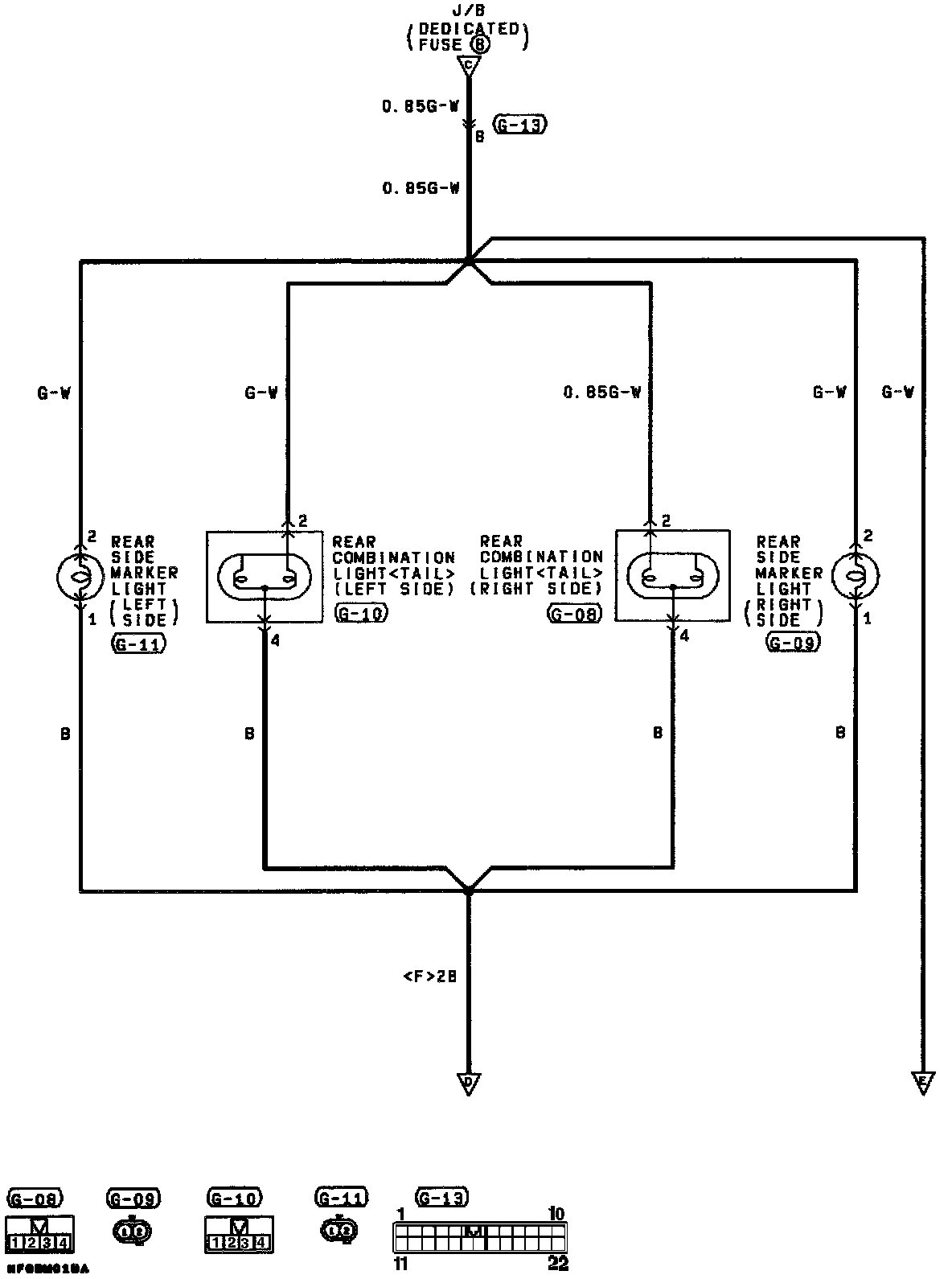

Taillight, Position Light, Side-marker Light And License Pate Light Circuit (Part 3 Of 4):

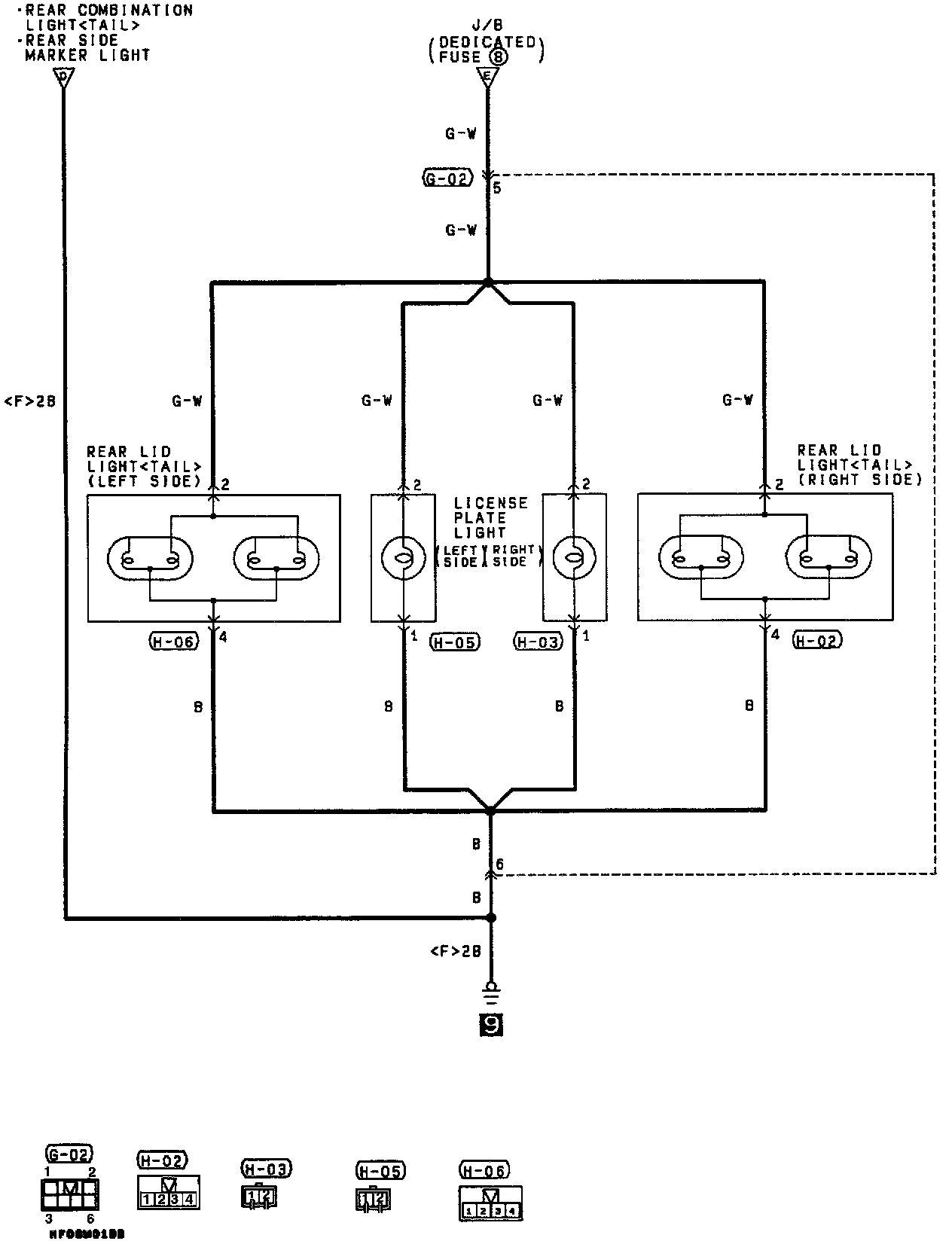

Taillight, Position Light, Side-marker Light And License Pate Light Circuit (Part 4 Of 4):
