Dim-Down Type

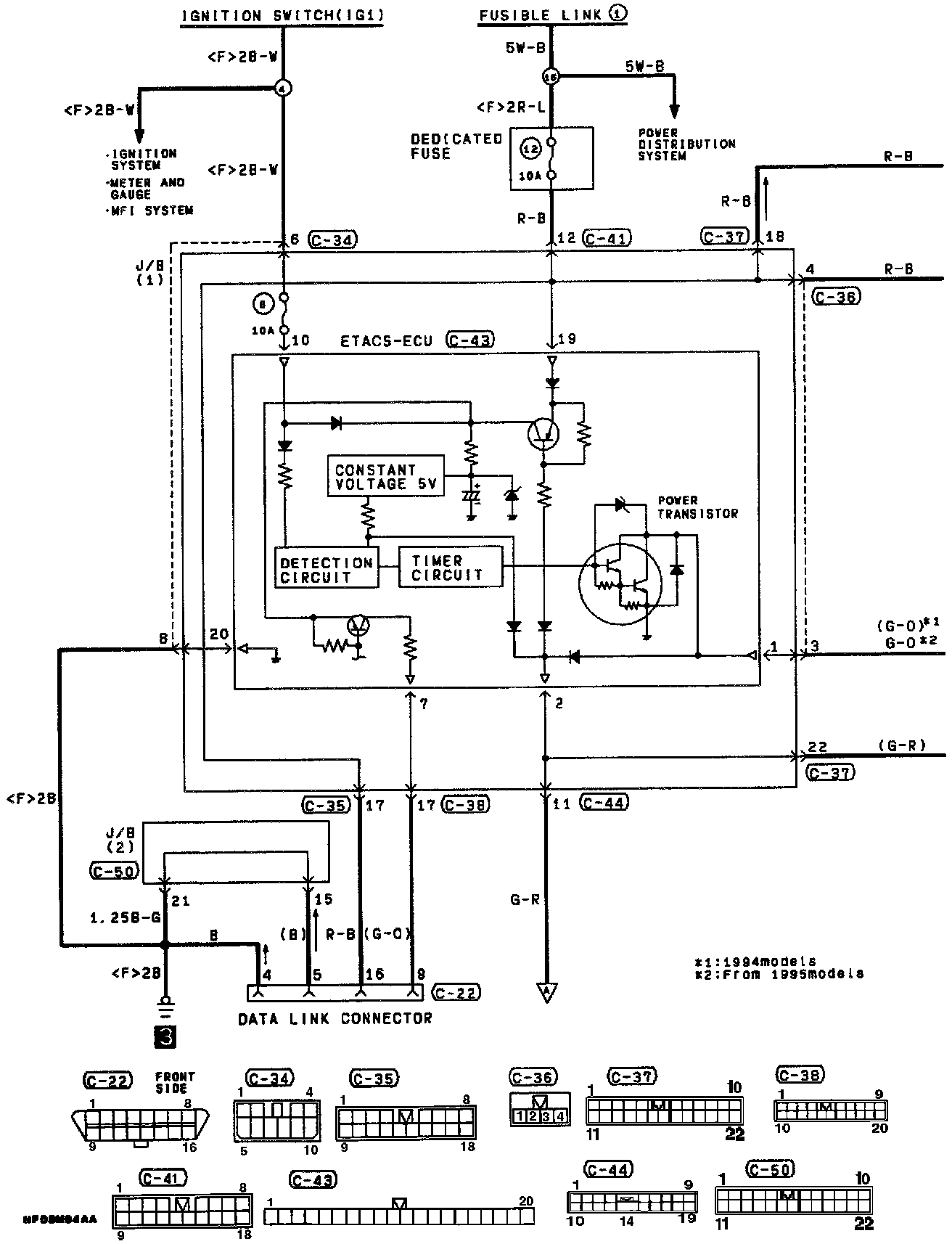

Dome Light (Dim-Down Type) Circuit (Part 1 Of 2):

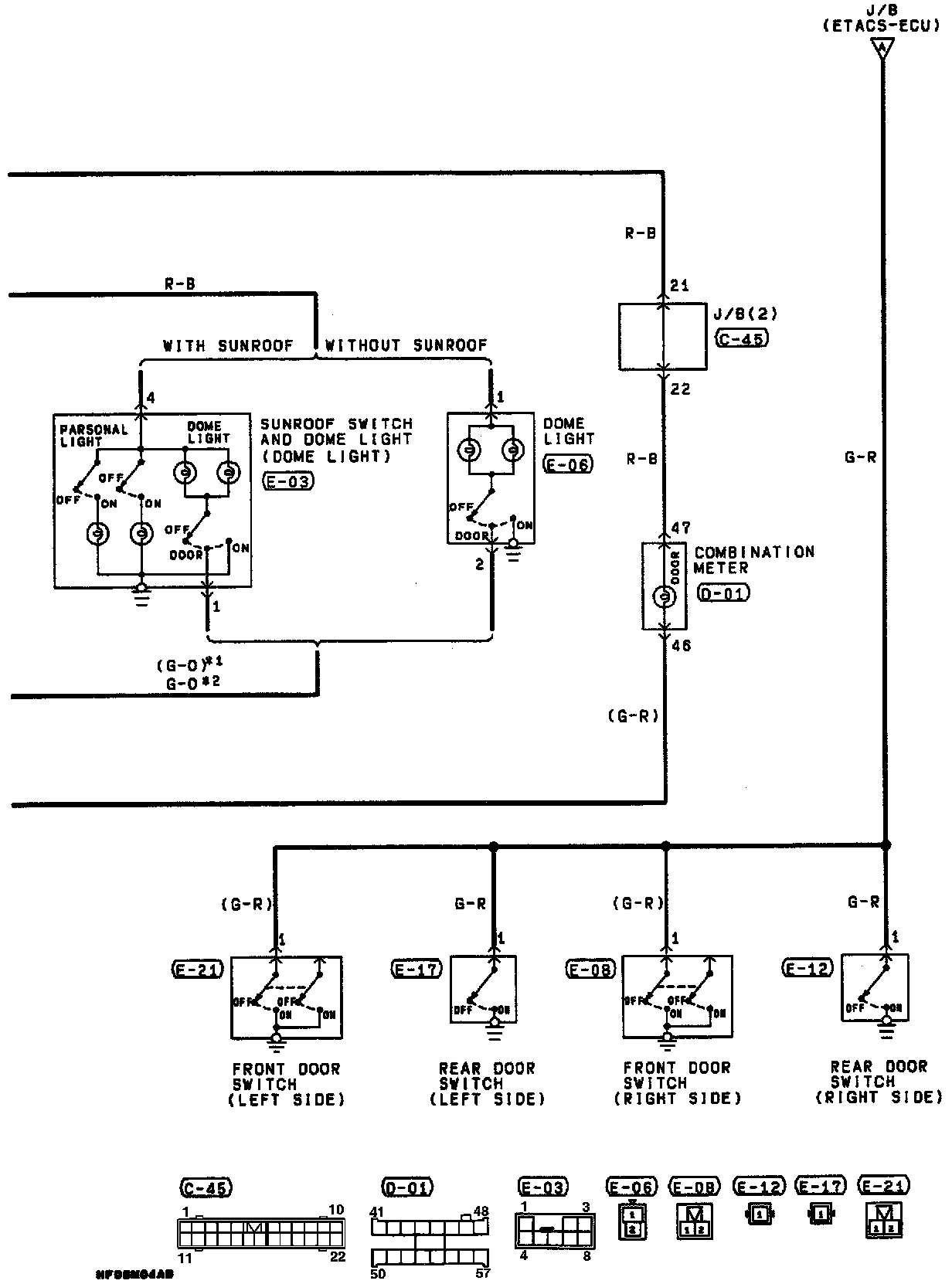

Dome Light (Dim-Down Type) Circuit (Part 2 Of 2):
