Antilock Brakes / Traction Control Systems

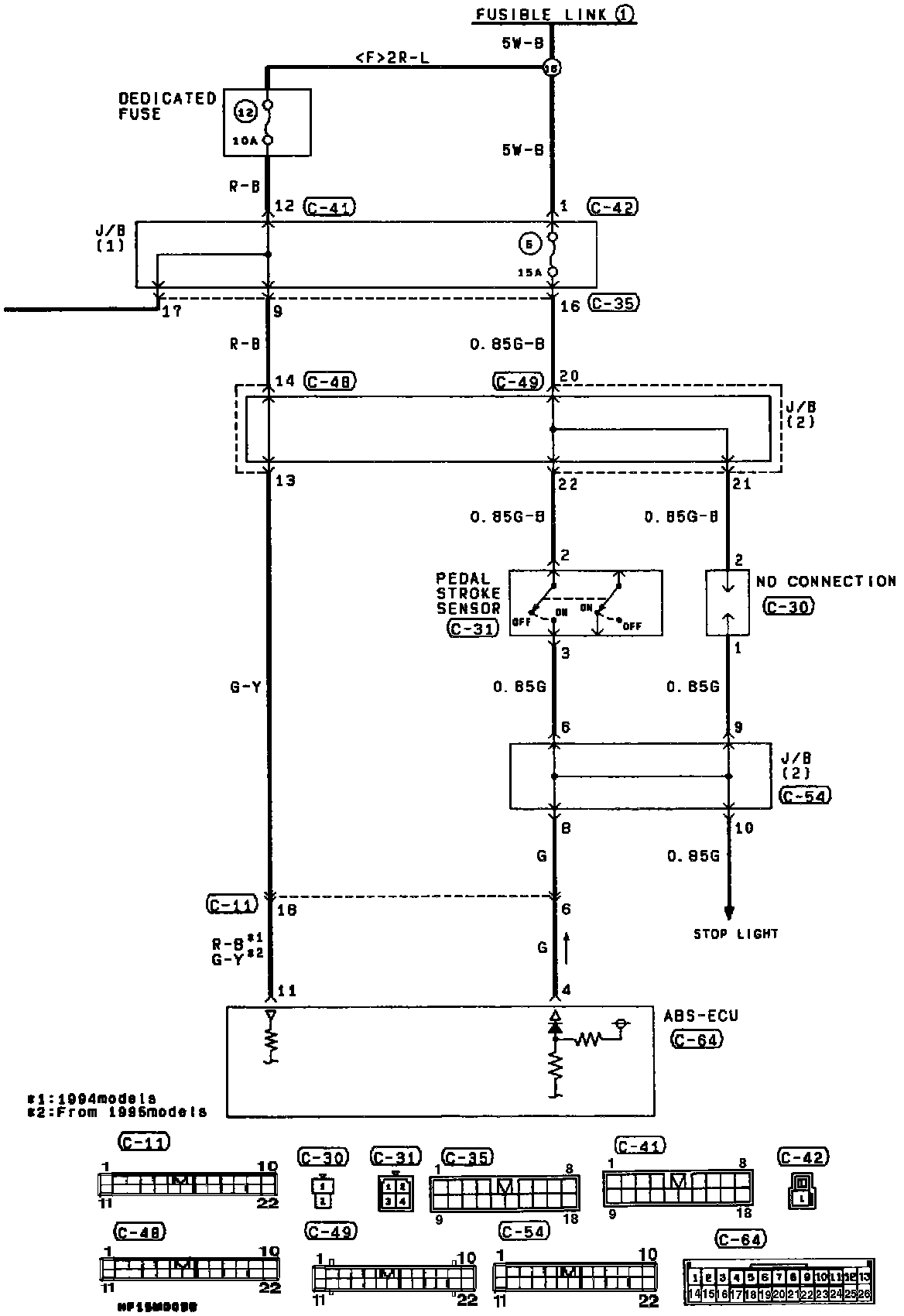

Anti-Lock Braking System (ABS) (Part 1 Of 4):

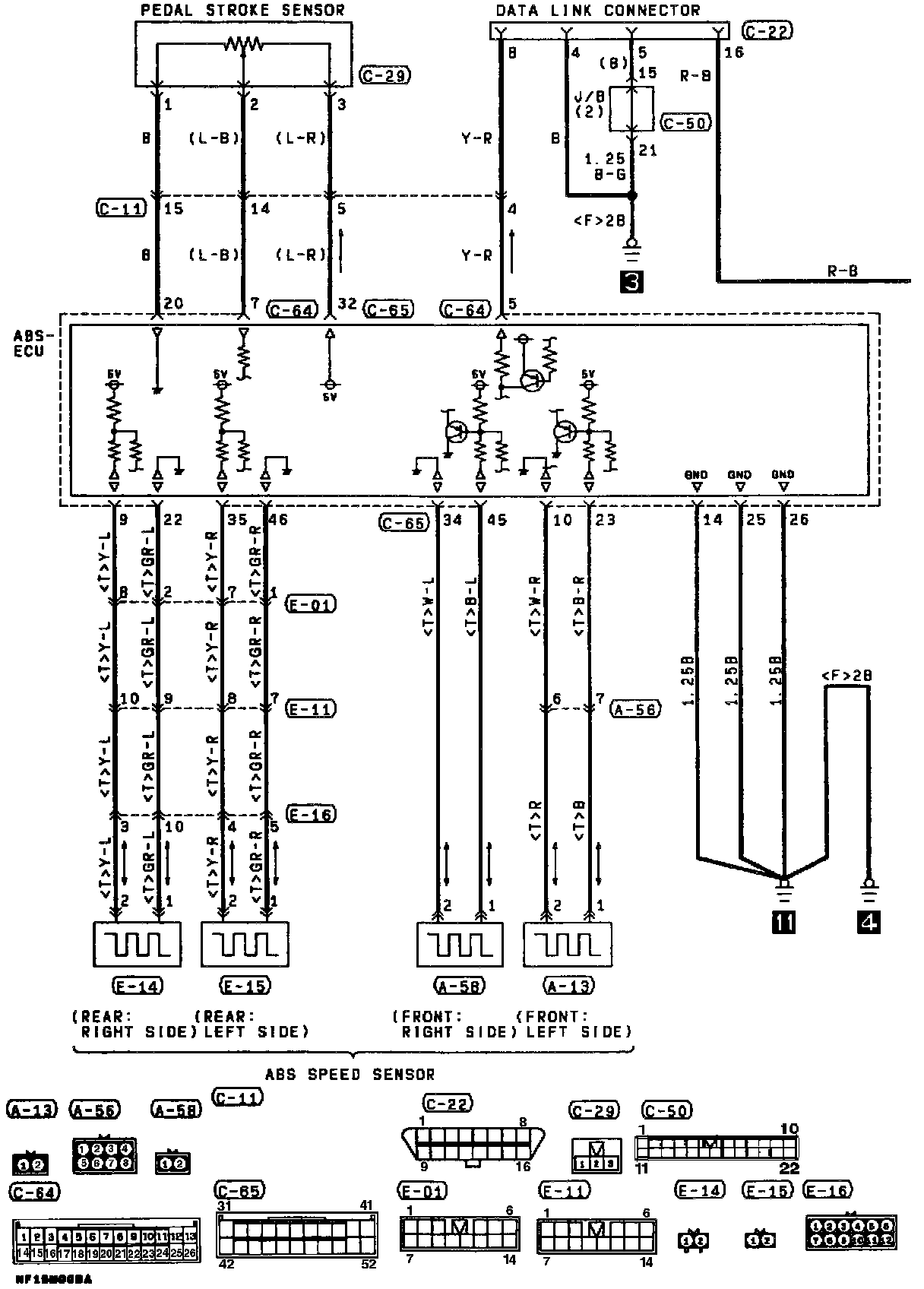

Anti-Lock Braking System (ABS) (Part 2 Of 4):

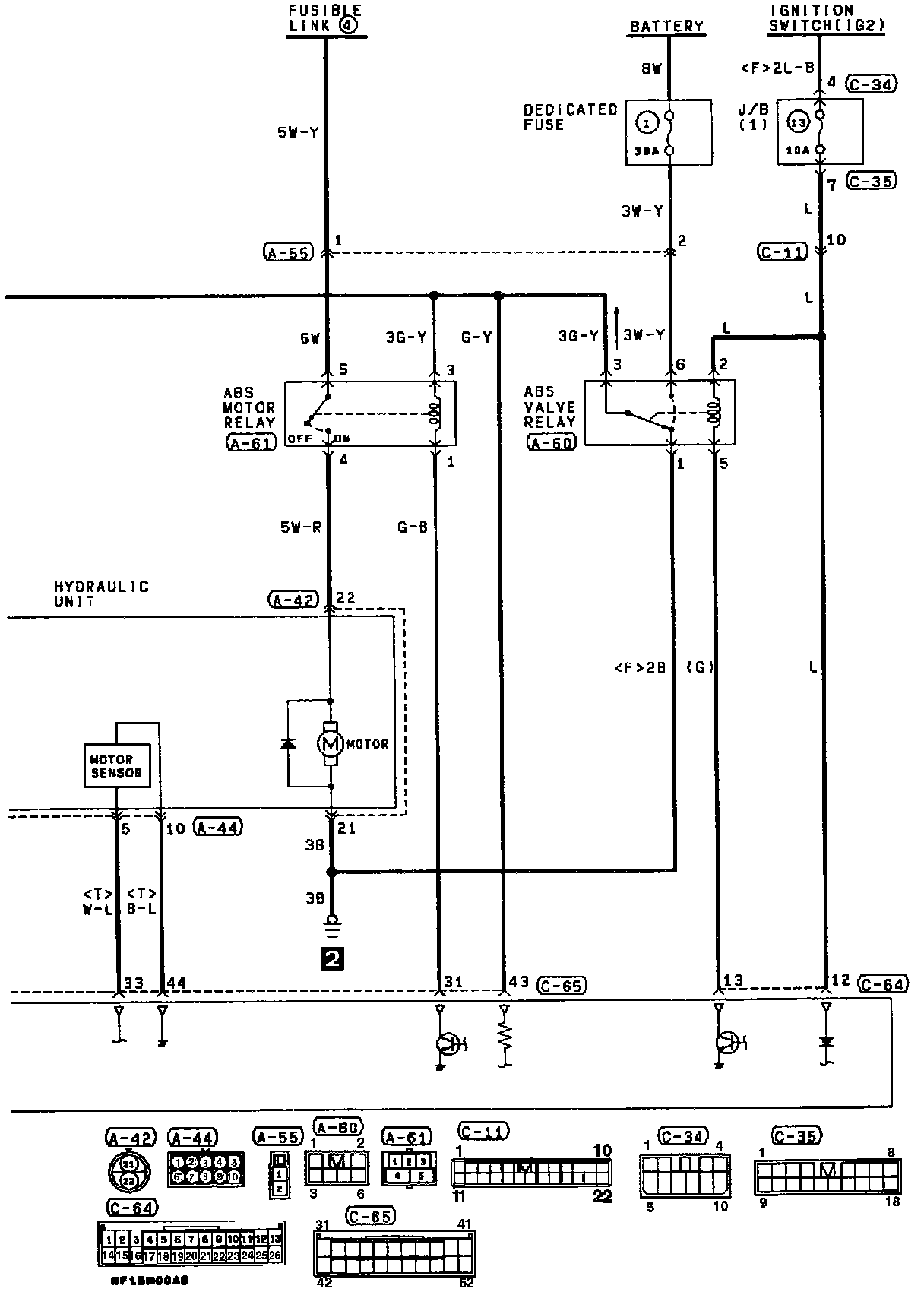

Anti-Lock Braking System (ABS) (Part 3 Of 4):

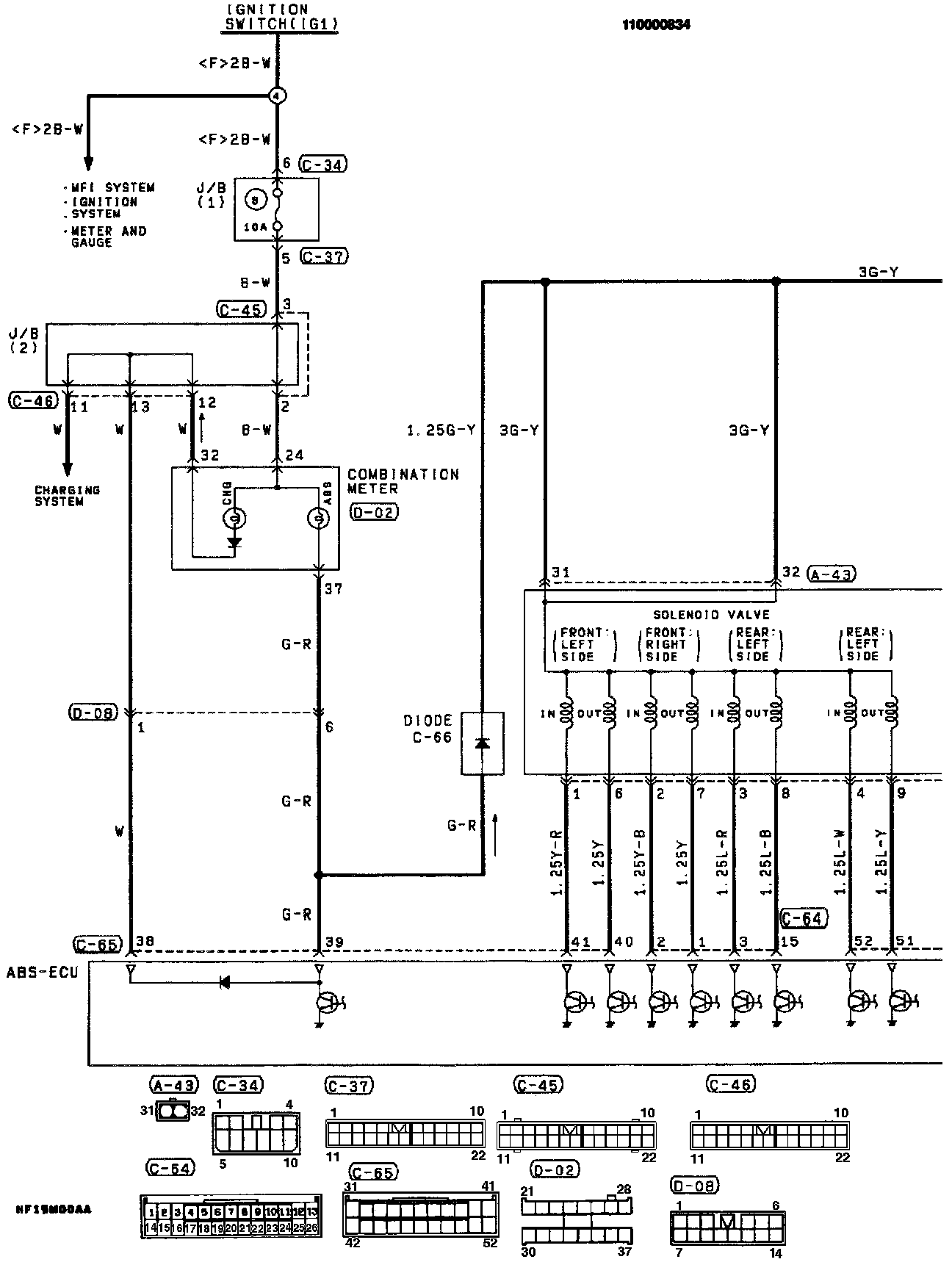

Anti-Lock Braking System (ABS) (Part 4 Of 4):
