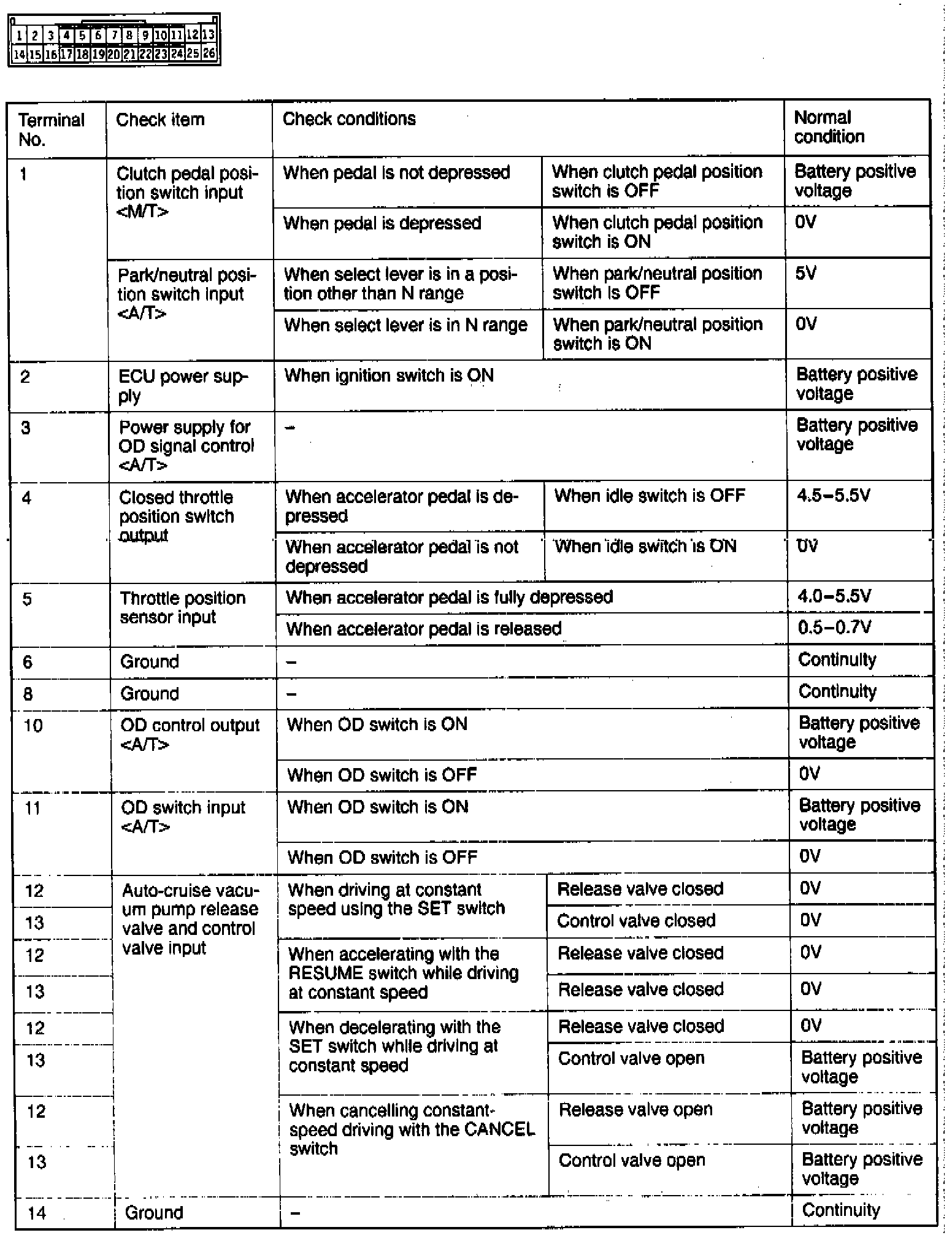

Pinout Values and Diagnostic Parameters
Fig. 26 Auto Cruise Control Signal Circuit Inspection (Part 1 Of 2 ):
Fig. 26 Auto Cruise Control Signal Circuit Inspection (Part 2 Of 2 ):
Refer to Fig. 26 for test procedure.
Refer to Fig. 26 for test procedure.
