Galant L4-2350cc 2.4L DOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

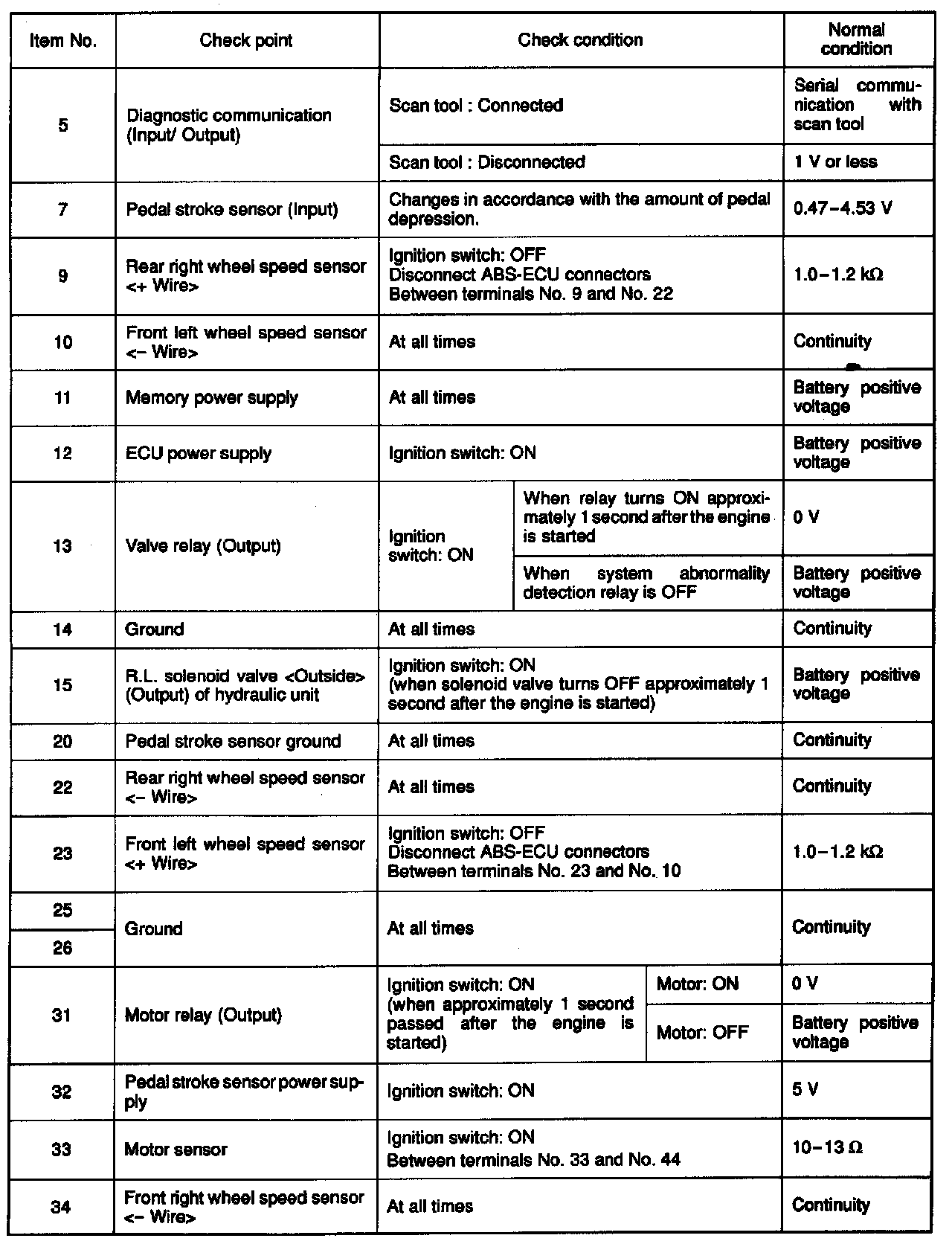

Check At ABS-ECU:

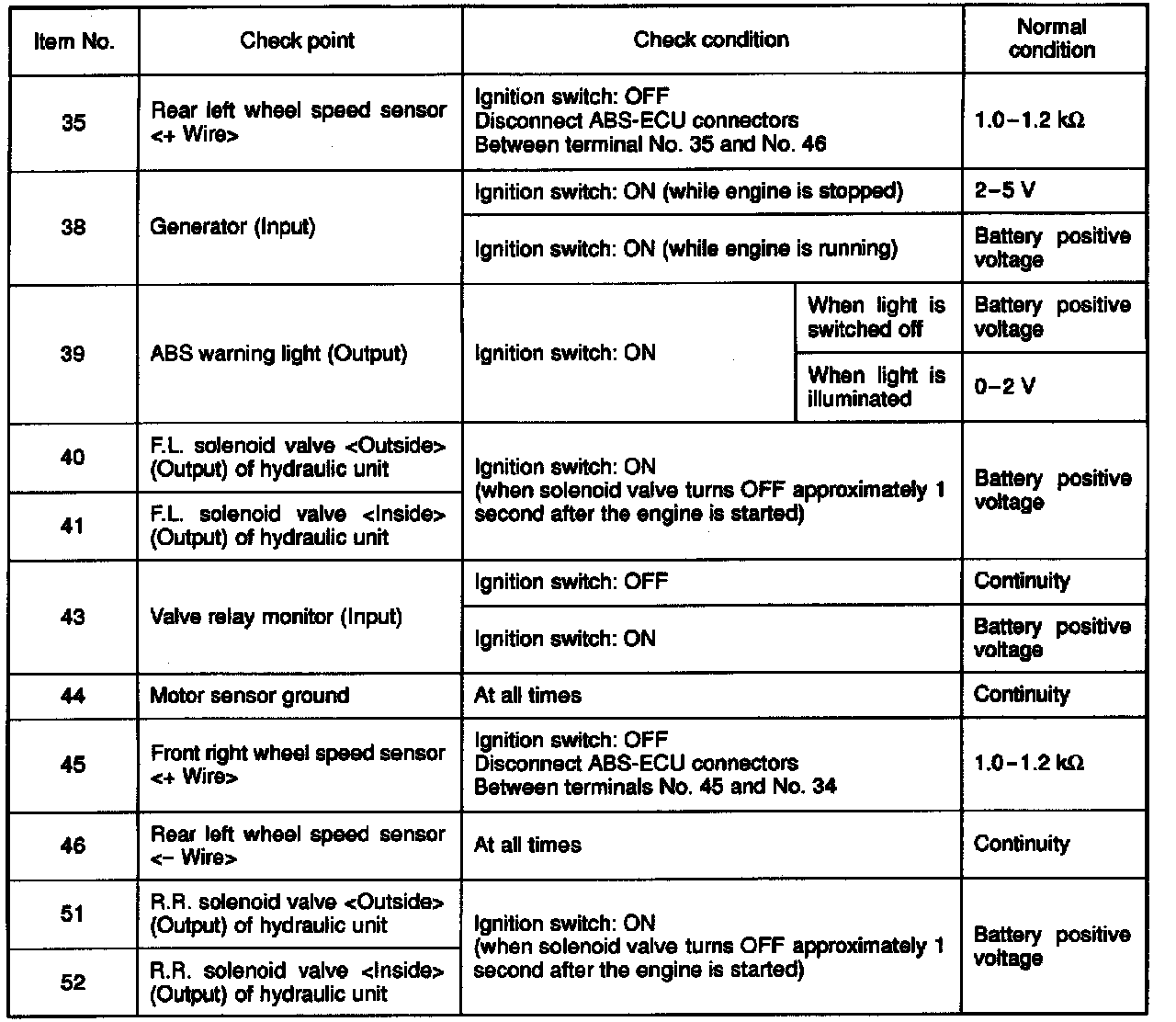

Check At ABS-ECU:

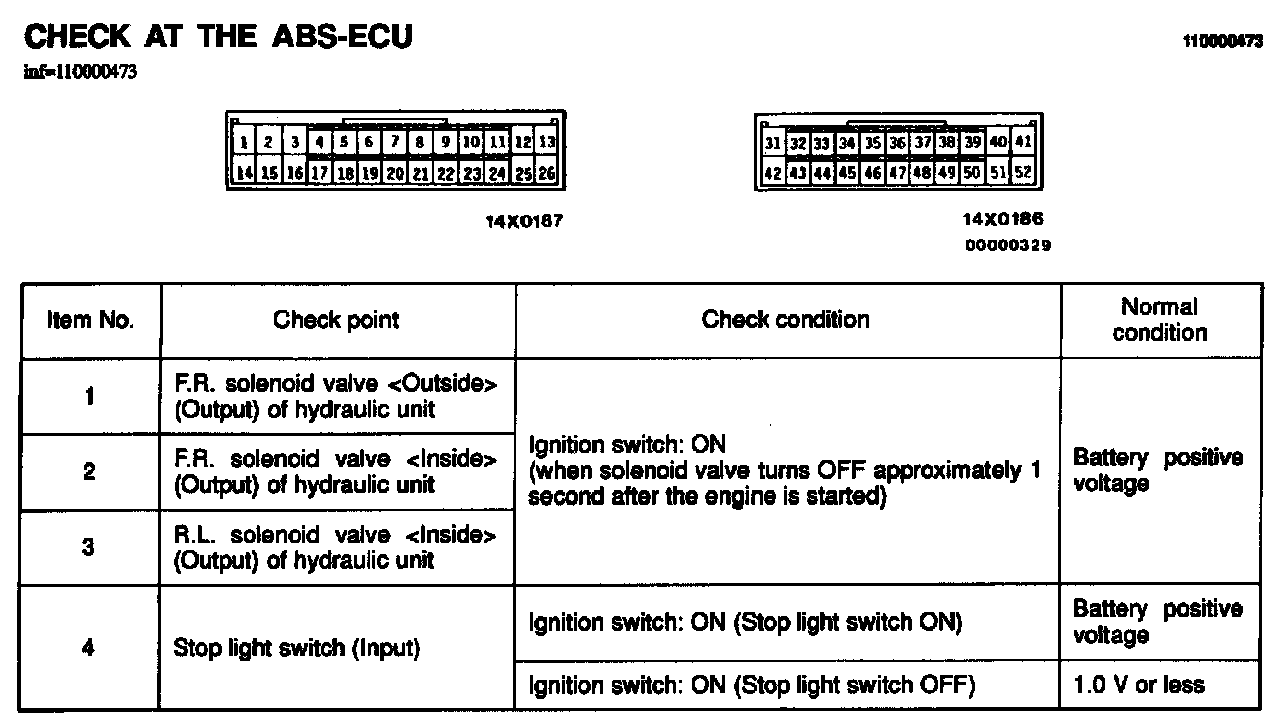

Check At ABS-ECU:
