Removal and Replacement

Caution:

1. The hydraulic unit is heavy, and so care should be taken when removing it.
2. The hydraulic unit is not to be disassembled; its nuts and bolts must not be loosened.
3. The hydraulic unit must not be dropped or otherwise subjected to impact shocks.
4. The hydraulic unit must not be turned upside down or laid on its side.







INSTALLATION

1. Reverse of removal

Note: >A< BRAKE PIPE CONNECTION

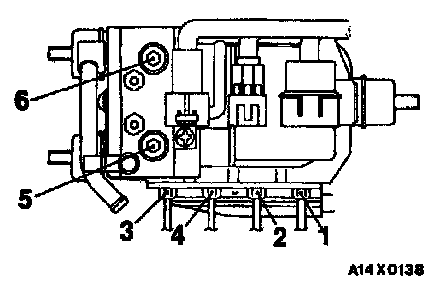

Connect the pipes to the hydraulic unit as shown in the illustration.

1. Hydraulic unit - Front brake (L.H.)
2. Hydraulic unit - Rear brake (R.H.)
3. Hydraulic unit - Front brake (R.H.)
4. Hydraulic unit - Rear braker (L.H.)
5. Hydraulic unit - Master cylinder (for left front and right rear)
6. Hydraulic unit - Master cylinder (for right front and left rear)
