Dashboard / Instrument Panel: Service and Repair

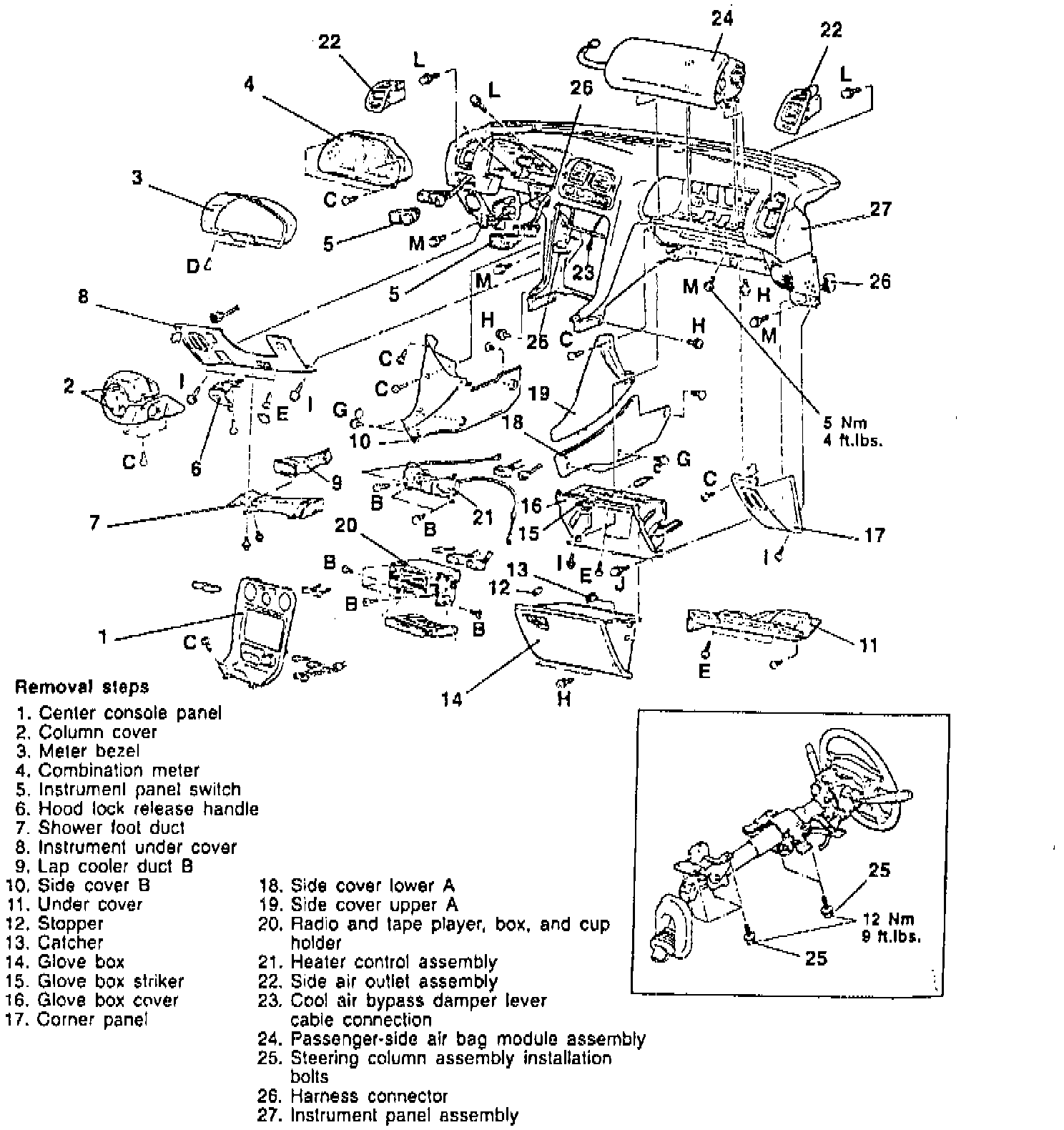

Fig. 11 Instrument Panel Replacement:

1. Remove dash panel in numbered sequence shown, Fig. 11.
2. Reverse procedure to install, noting the following:
a. Connect cool air bypass damper lever cable by turning lever on air outlet fully upward, then positioning lever on heater unit fully downward and fitting cable over connection point.
