Home >> Mitsubishi >> 1994 >> Expo LRV L4-1834cc 1.8L SOHC 16 Valve >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams

Heating and Air Conditioning: Diagrams

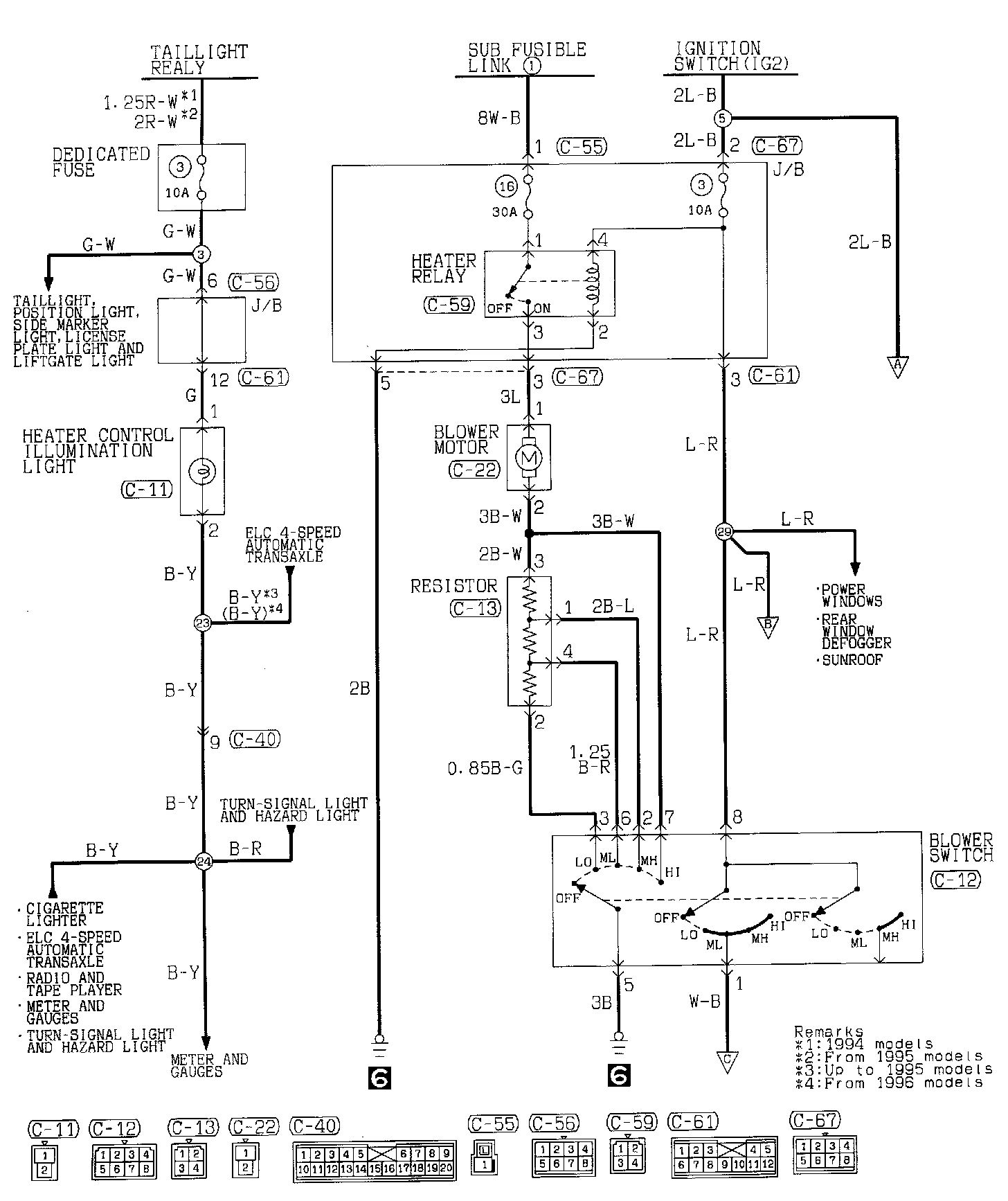

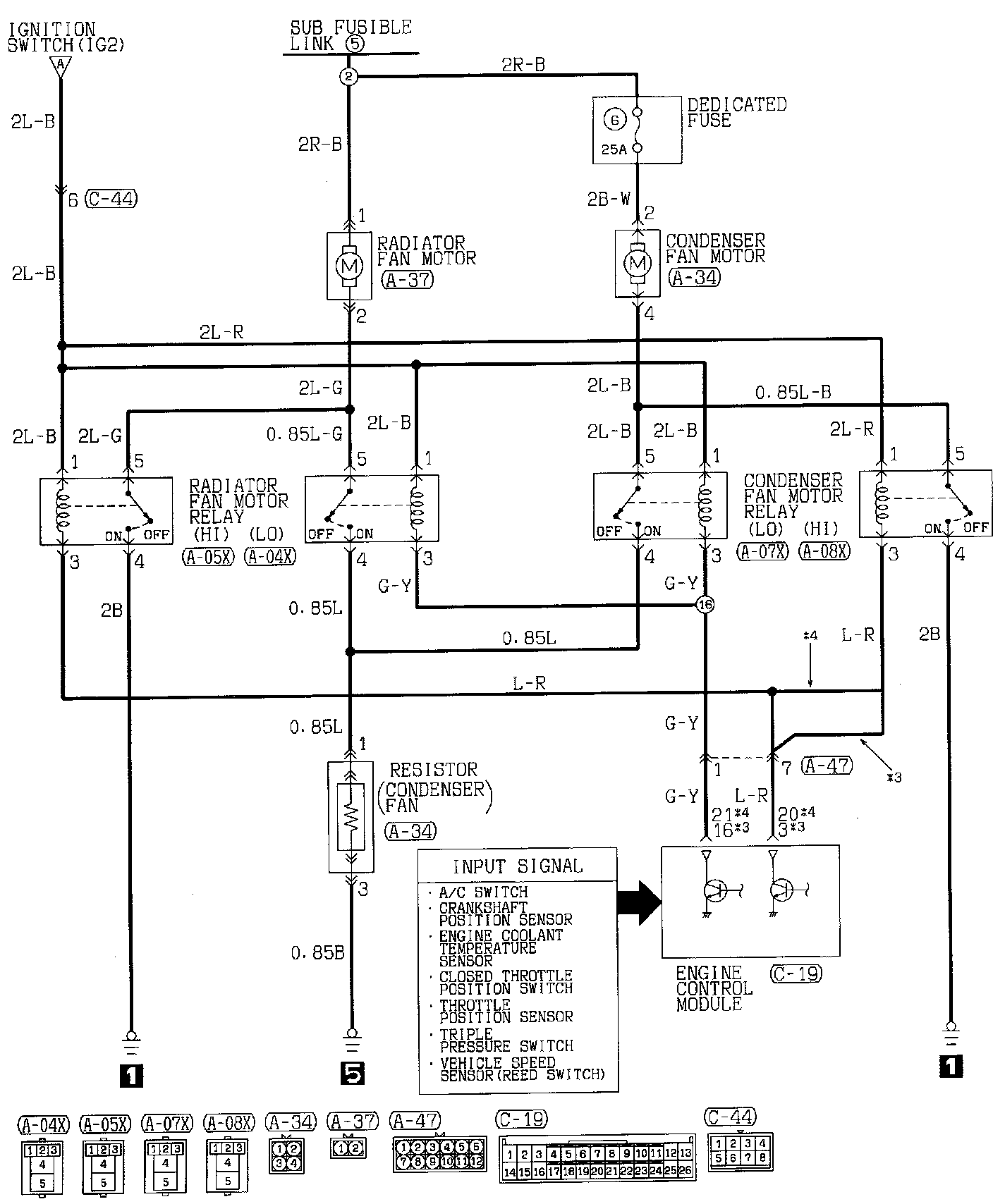

HEATER AND AIR CONDITIONING
<1.8L Engine (From 1994 models)>
