A - ABS Warning Light Does Not Light at All
A - ABS Warning Light Does Not Light at All

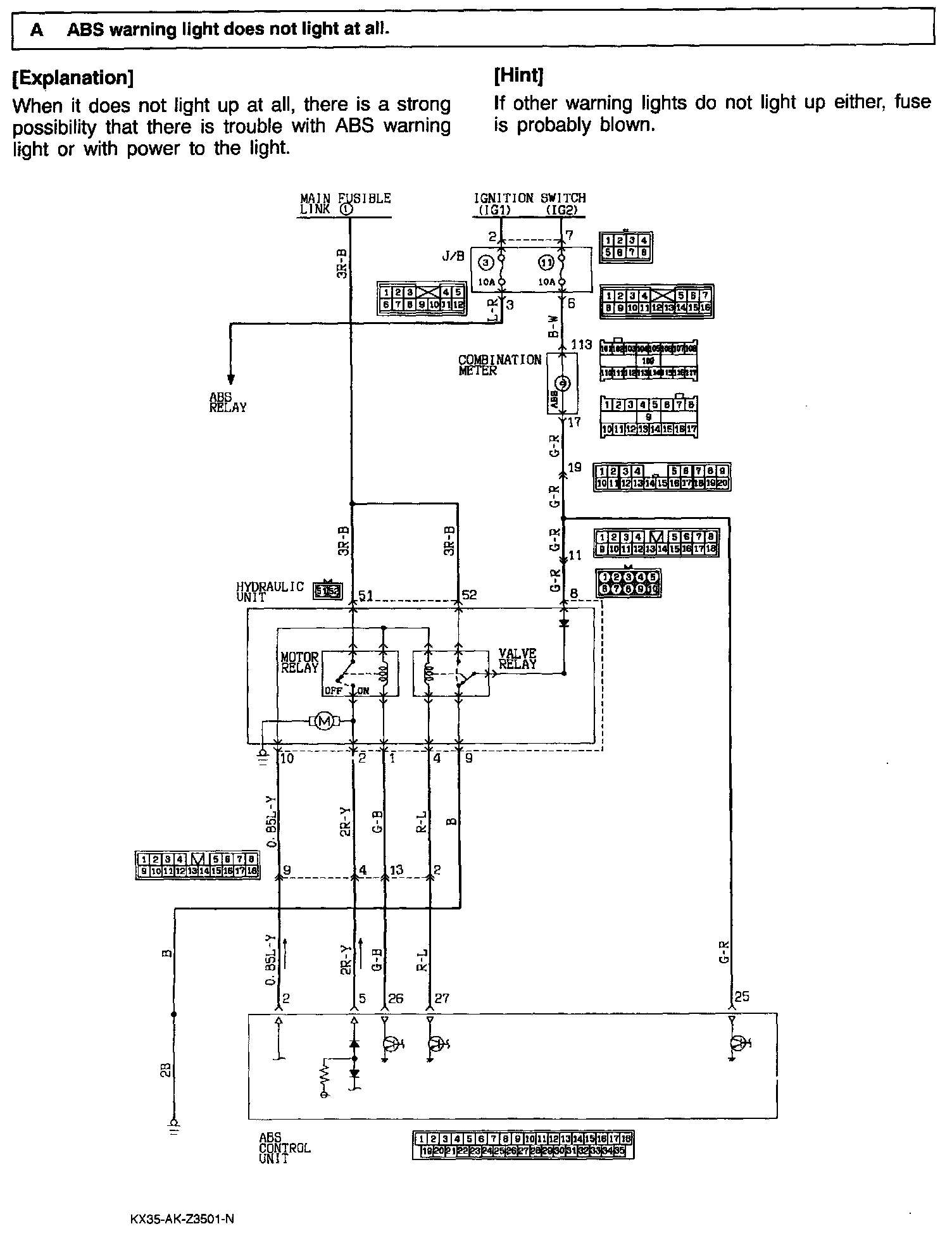

CHART A

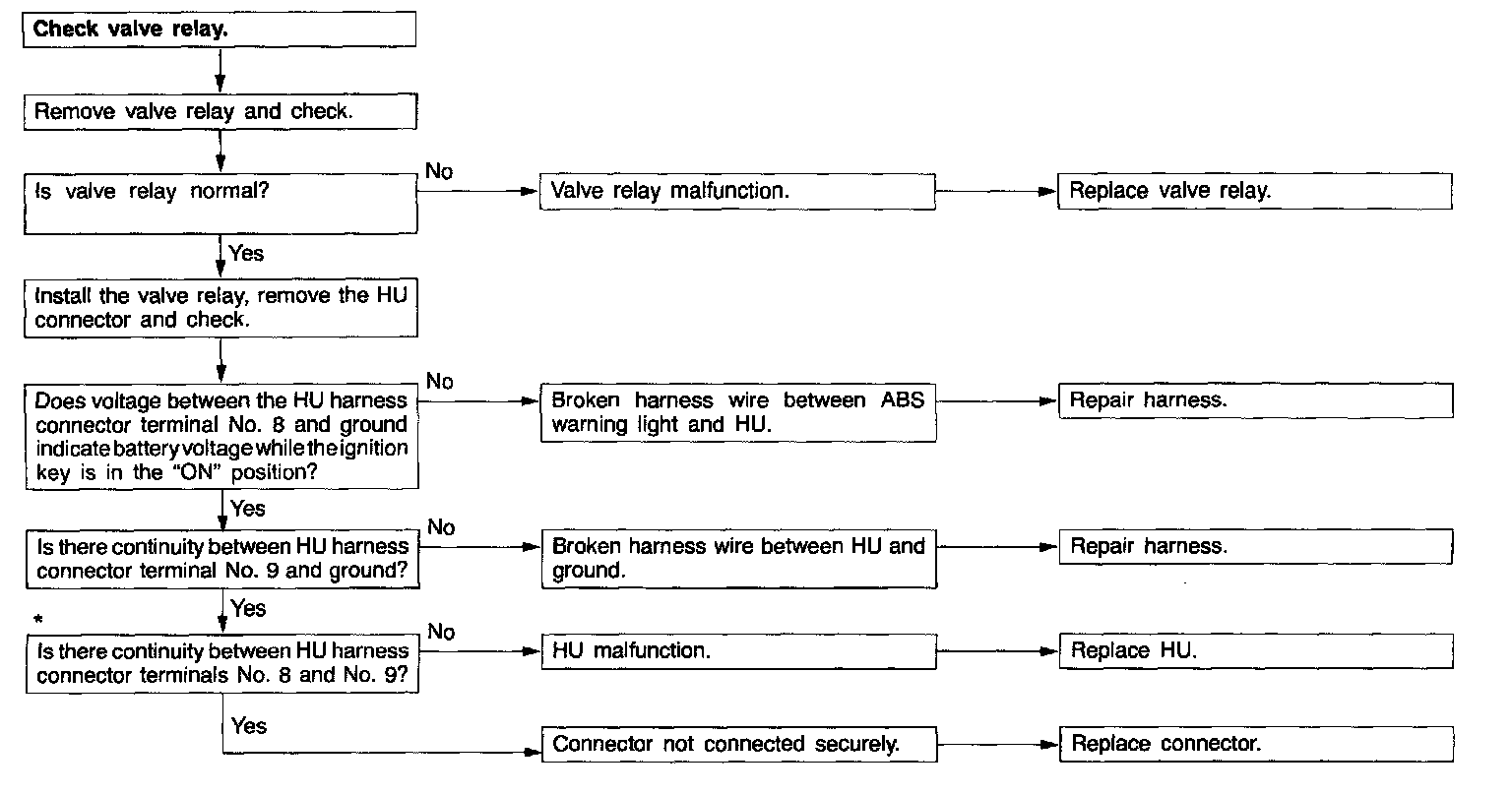

Part 1:

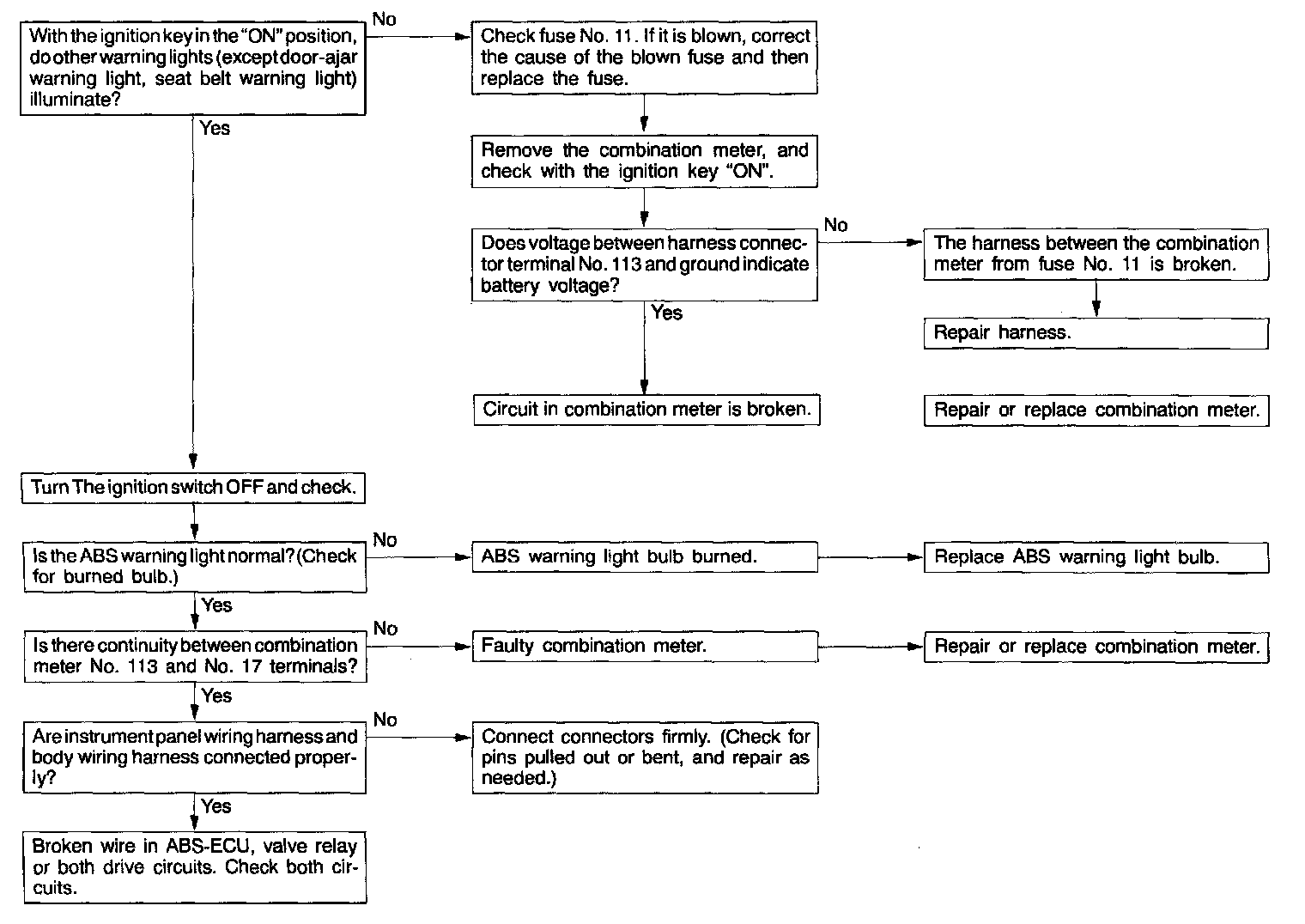

Part 2:

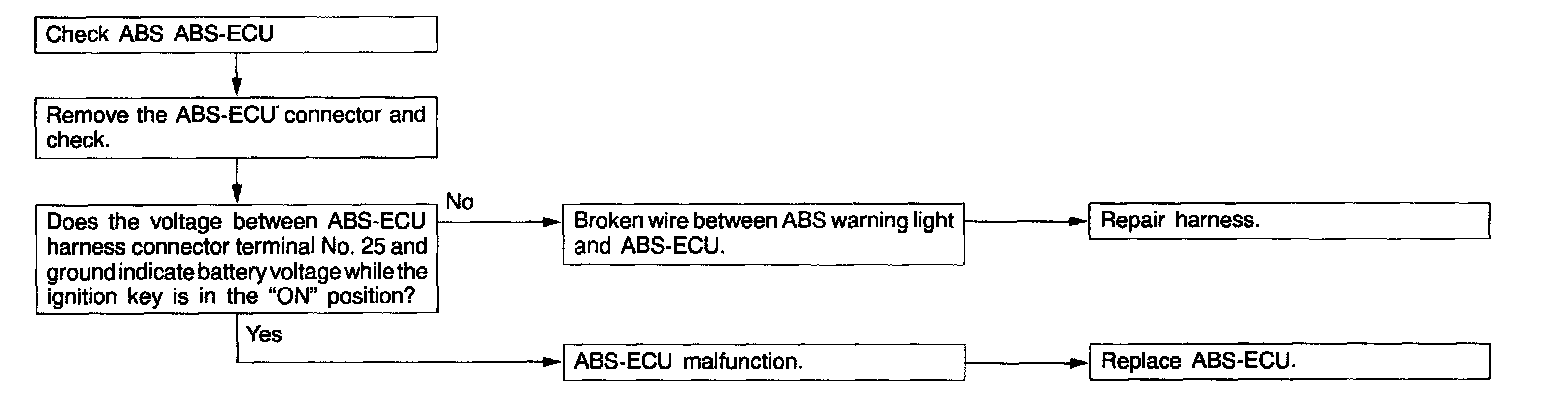

Part 3:
Part 4:
NOTE:
For inspection sections marked by*, pay attention to the polarity of the diodes.(Refer to the circuit diagram.)
