Rear Wiper / Washer Switch

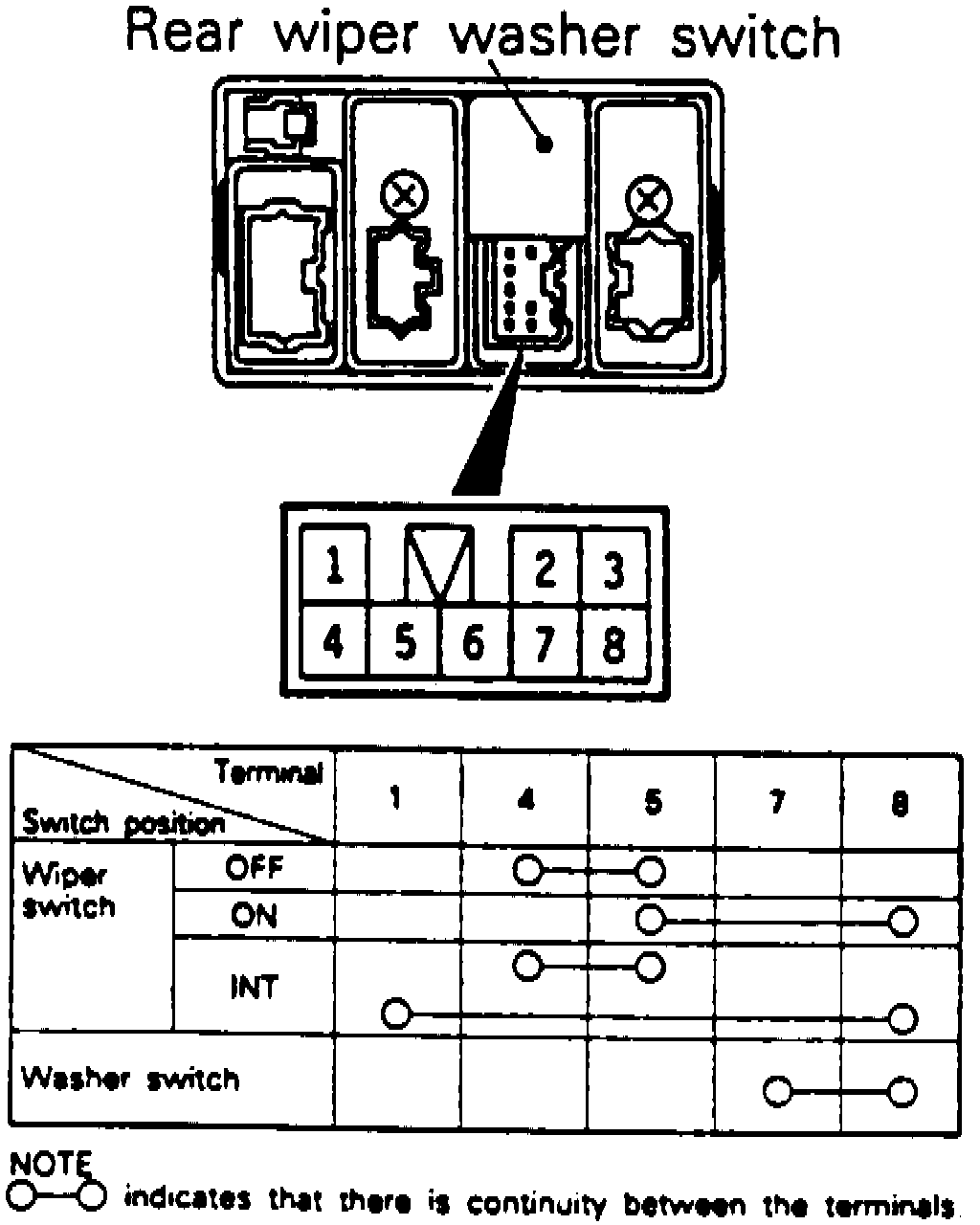

Fig. 49 Rear Wiper & Washer Switch Inspection:





Remove switch from cluster and check continuity between terminals as shown in Fig. 49.
