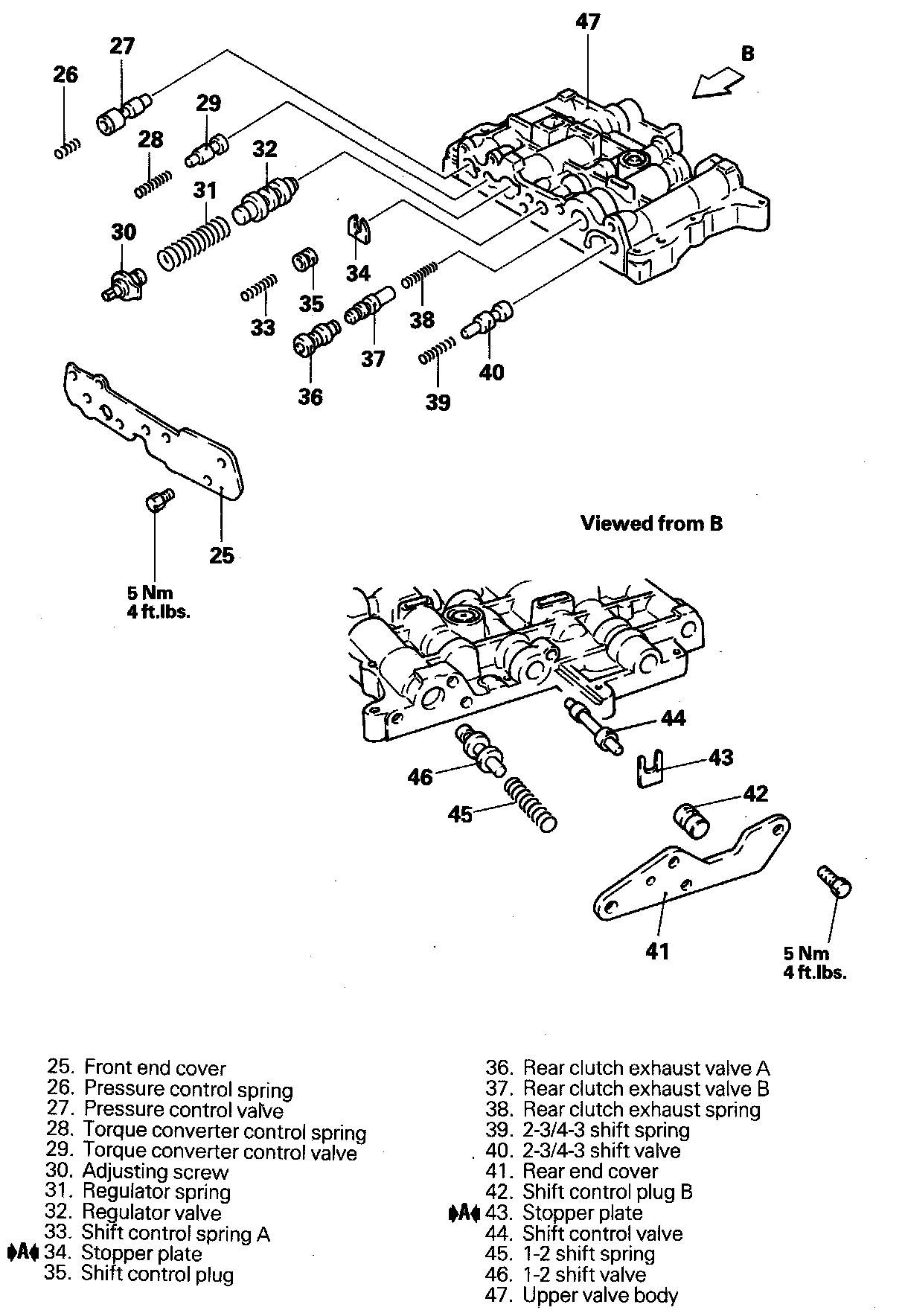

Valve Body: Service and Repair

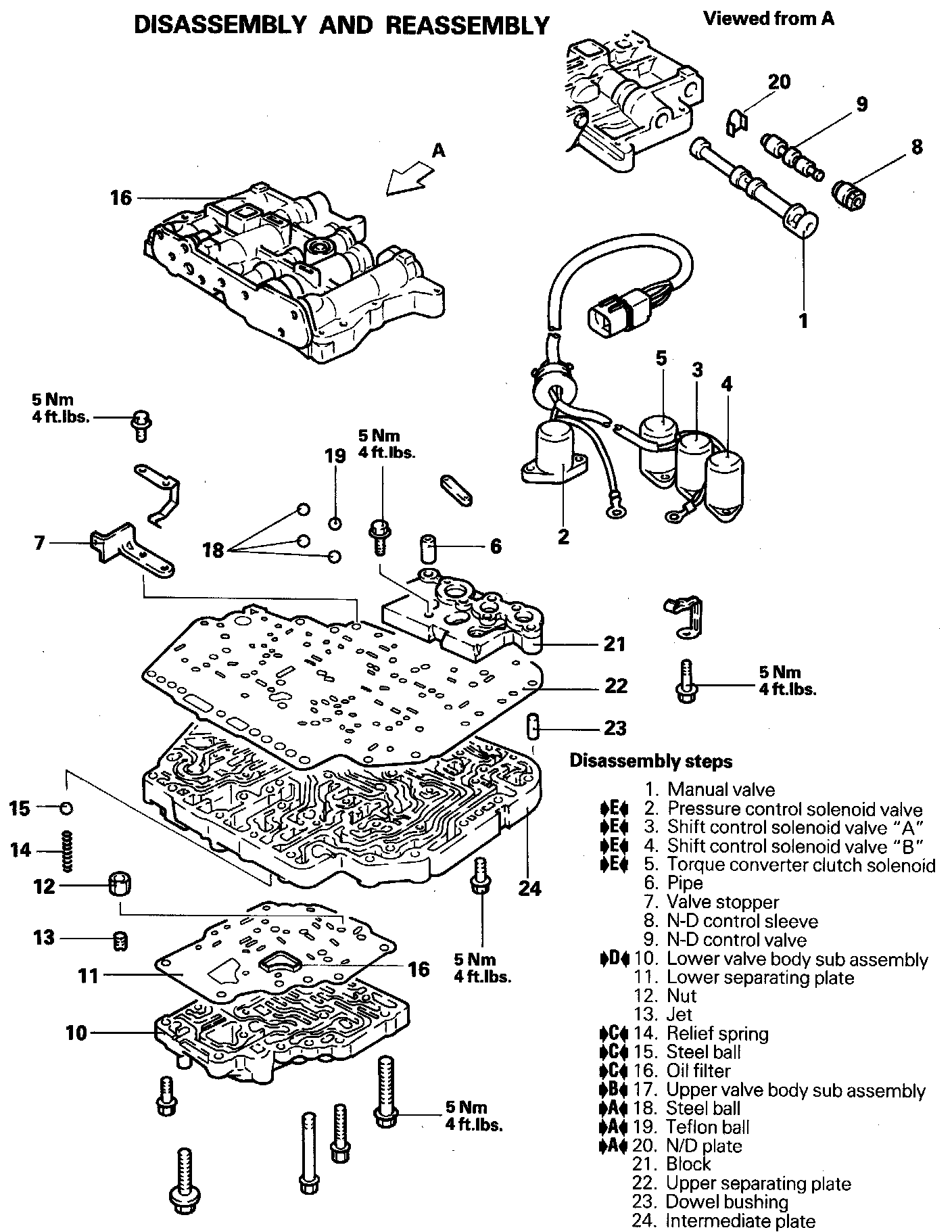

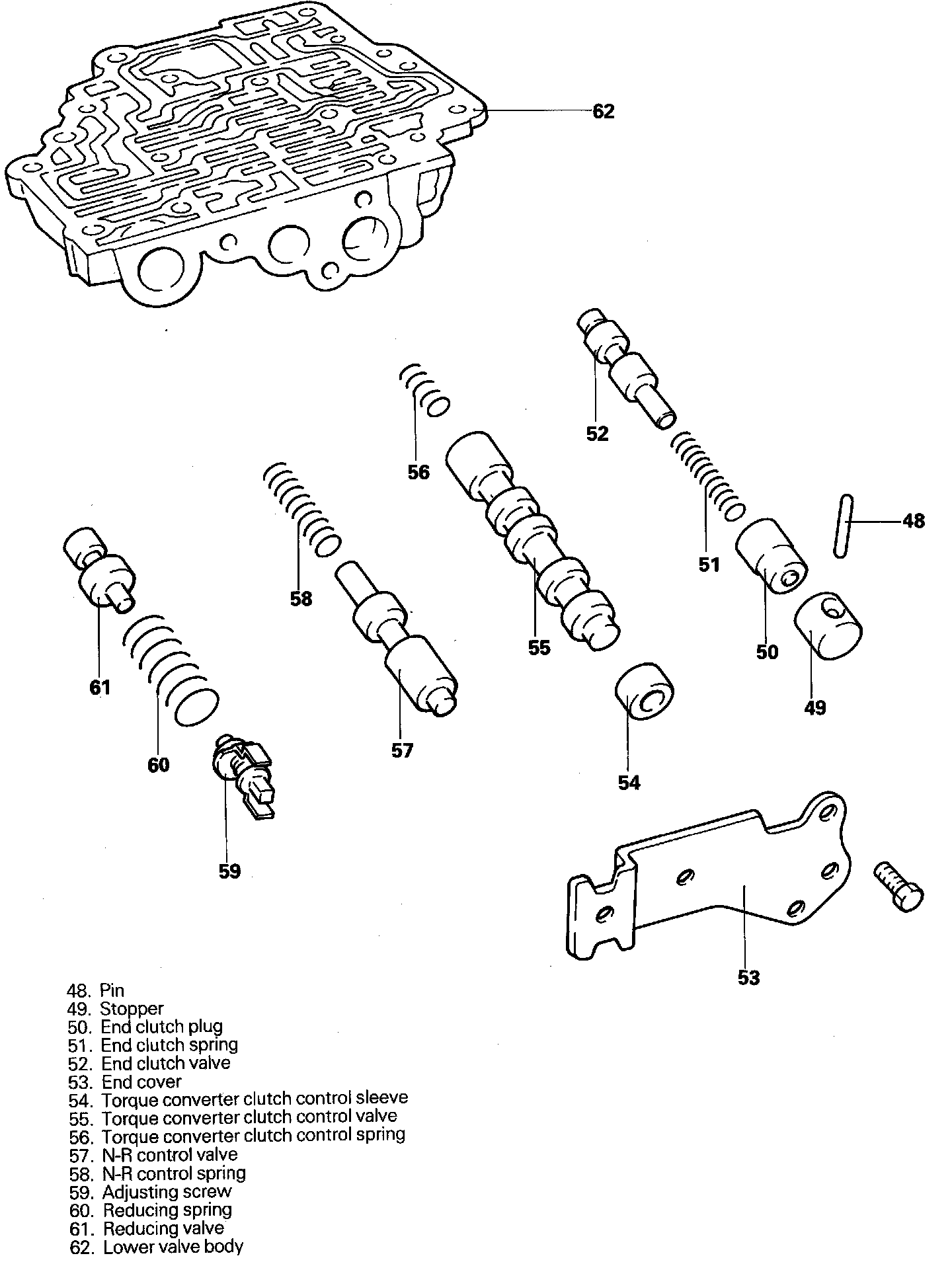

DISASSEMBLY

REASSEMBLY SERVICE POINTS

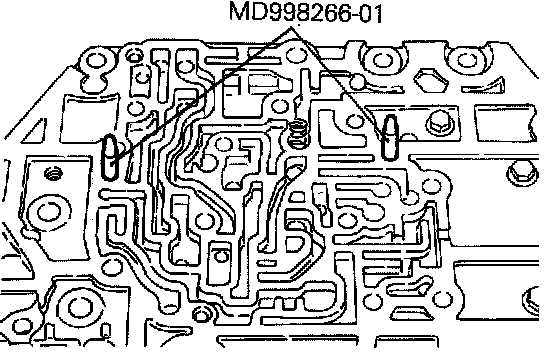

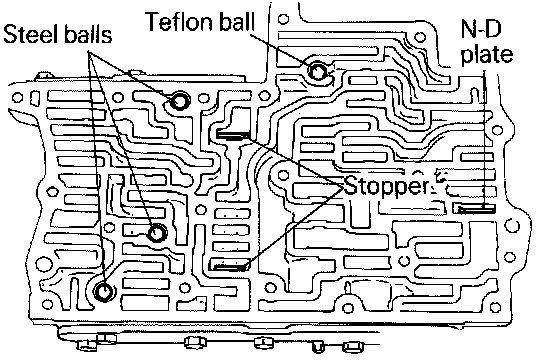

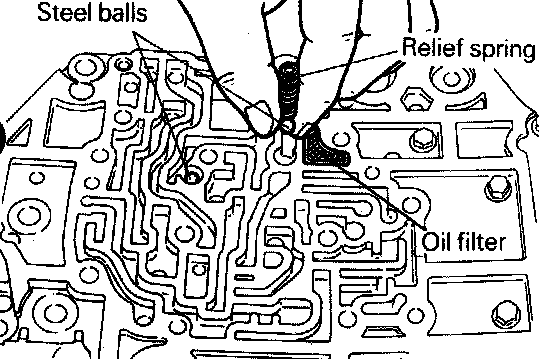

(A) STOPPER PLATE / N-D PLATE / TEFLON BALL / STEEL BALL LOCATION

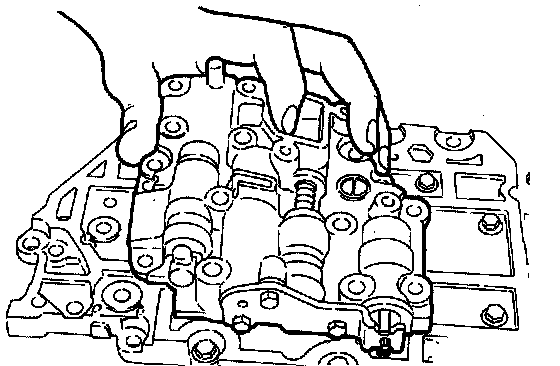

(B) UPPER VALVE BODY SUB ASSEMBLY INSTALLATION

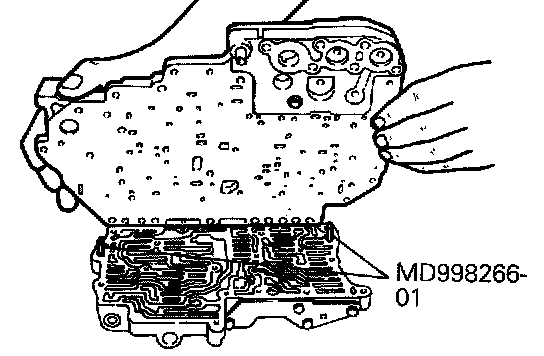

(1) Mount the special tools, and secure the upper separating plate and intermediate plate with the eight mounting bolts. Then, demount the special tools.

(1) Mount the special tools on the intermediate plate.

(2) Install the separating plate.

(3) Secure the lower valve body with the bolts. Then, remove the special tools.

SOLENOID VALVE ASSEMBLY INSTALLATION

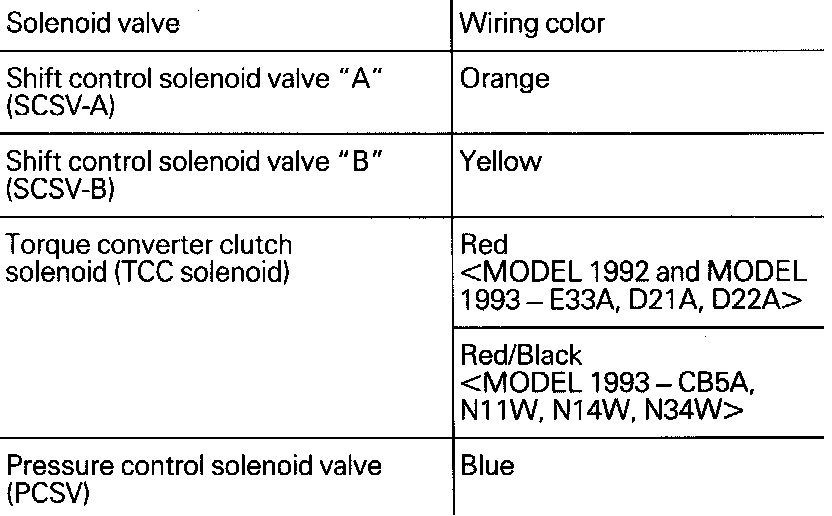

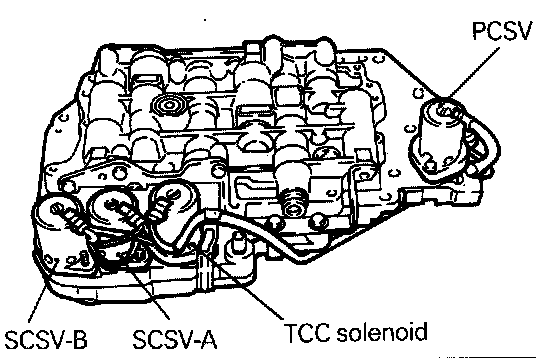

(1) Install each solenoid valve in the position shown in the figure.
