Front Suspension

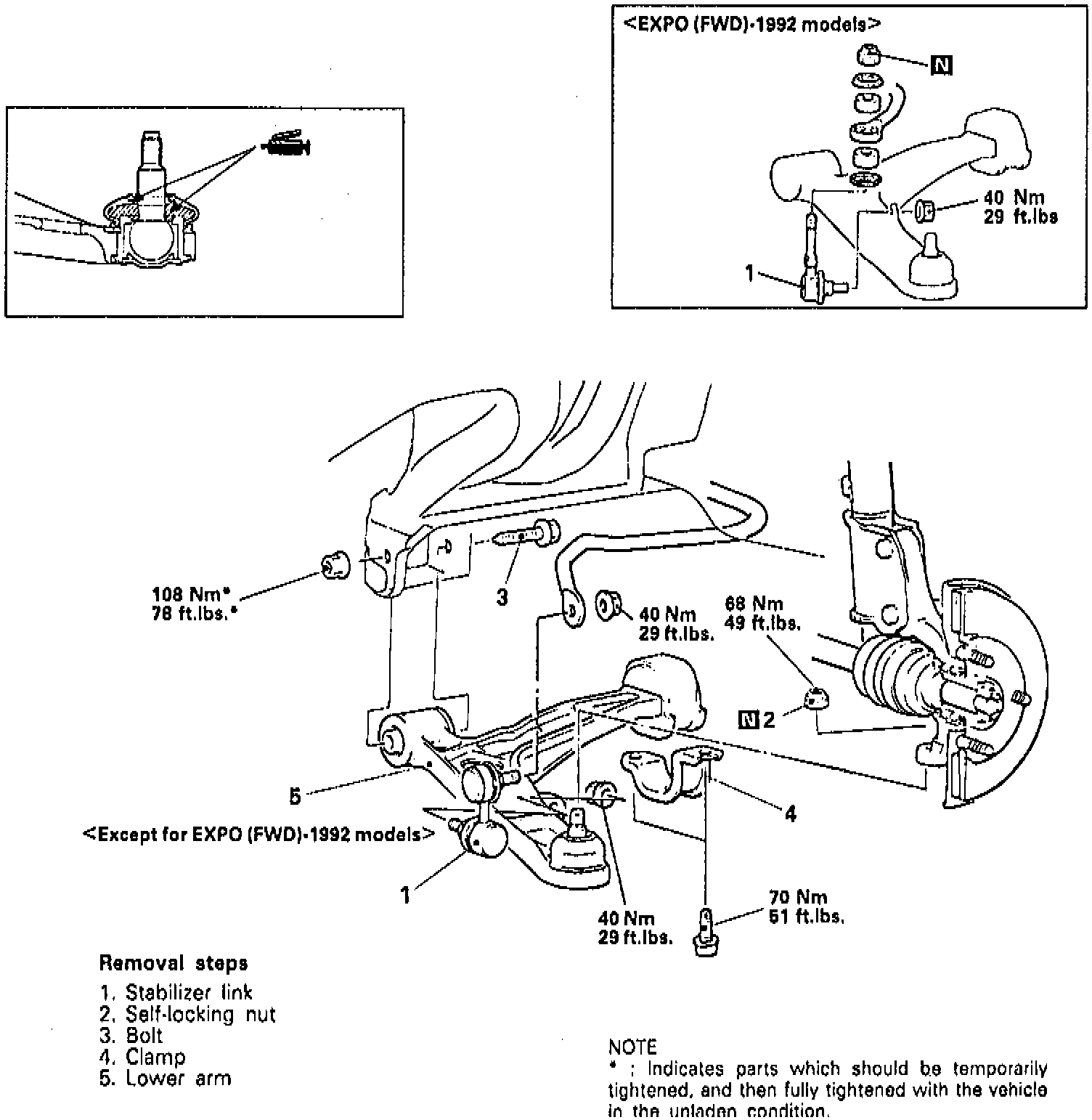

Fig. 7 Lower Control Arm & Ball Joint Replacement:

Replace lower control arm and ball joint in numbered sequence shown in Fig. 7. Disconnect knuckle from lower arm ball joint using steering linkage puller MB991113-01, or equivalent. Loosen but do not remove ball joint nut until lower control arm is ready to be removed.
