Removal and Replacement

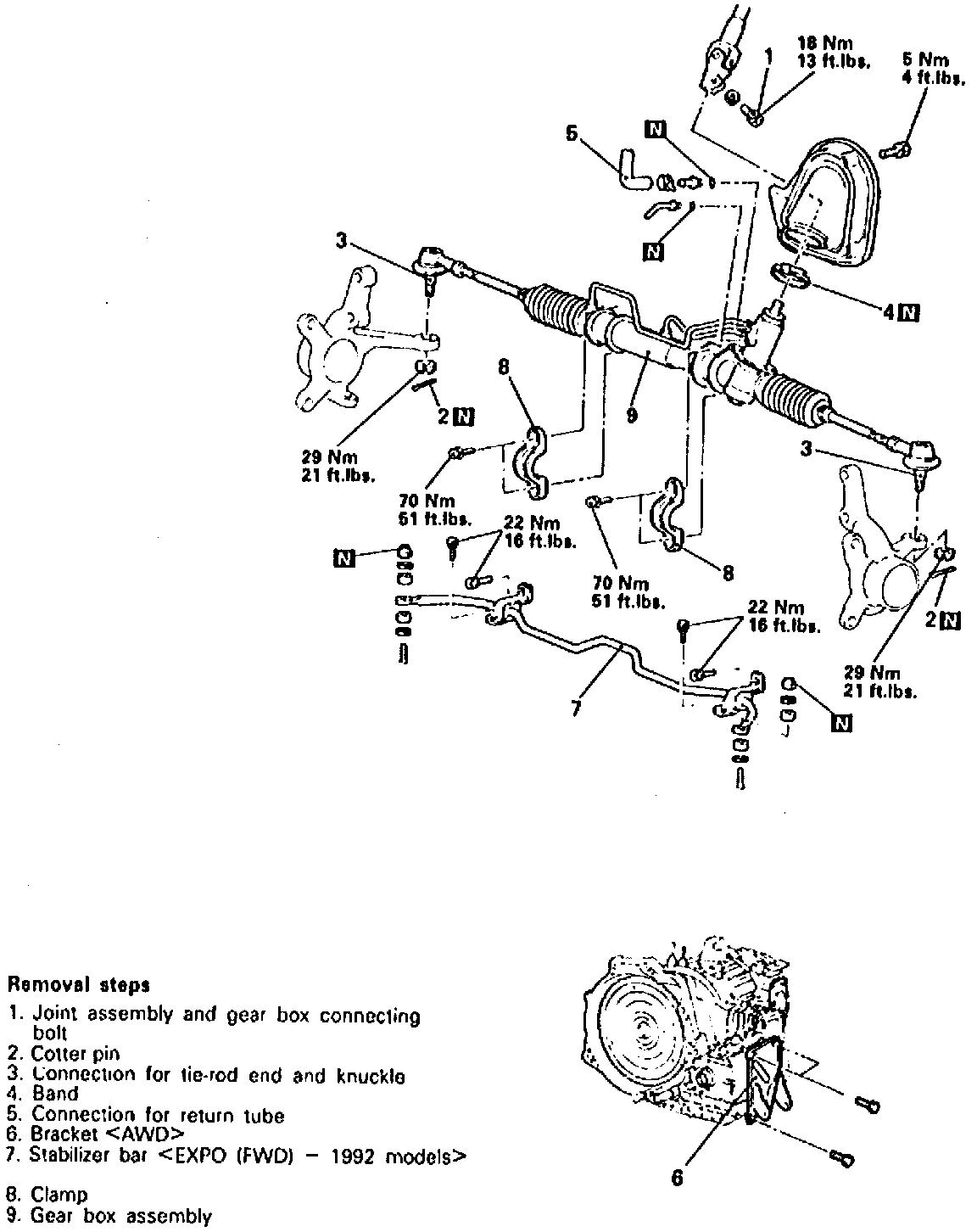

Fig. 9 Power Steering Gear Replacement:

Replace power steering gearbox in numbered sequence shown in Fig. 9. Disconnect tie rod ends using steering linkage puller, tool No. MB991113-01, or equivalent.
