Electrical Diagrams

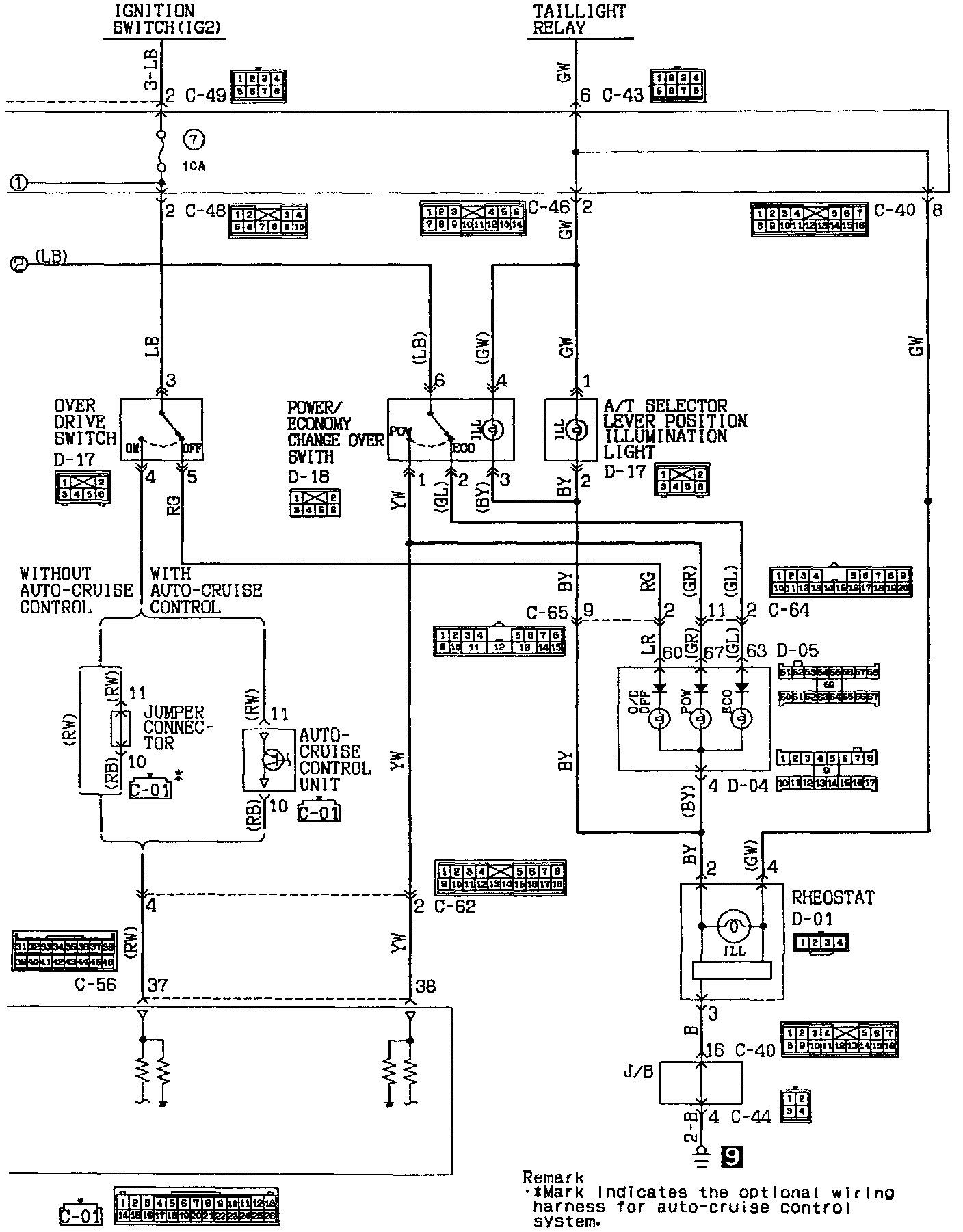

CIRCUIT DIAGRAM PART 1

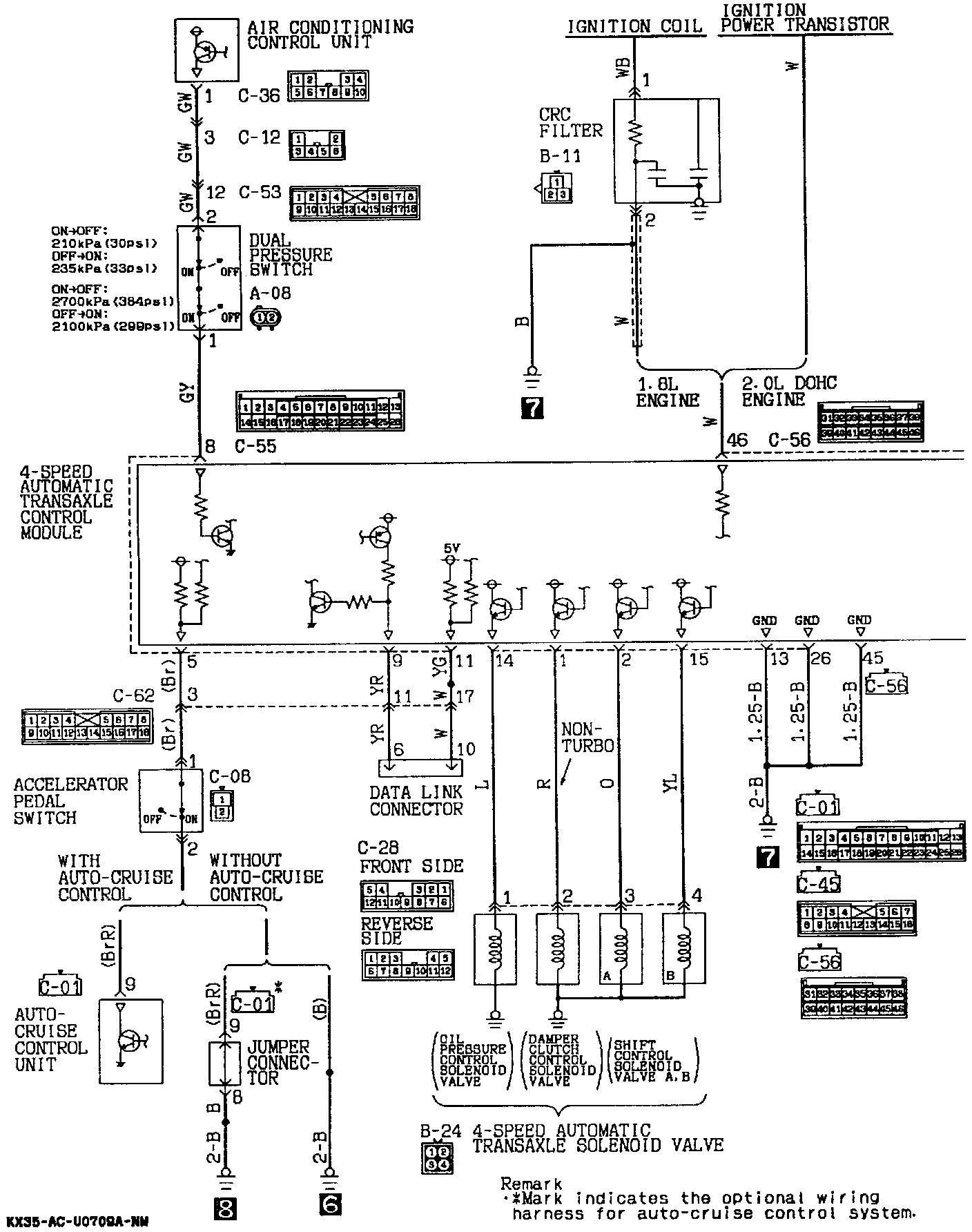

CIRCUIT DIAGRAM PART 2





CIRCUIT DIAGRAM PART 3





CIRCUIT DIAGRAM PART 4
