Windshield Washer Switch: Testing and Inspection

1. Disconnect column switch connector.

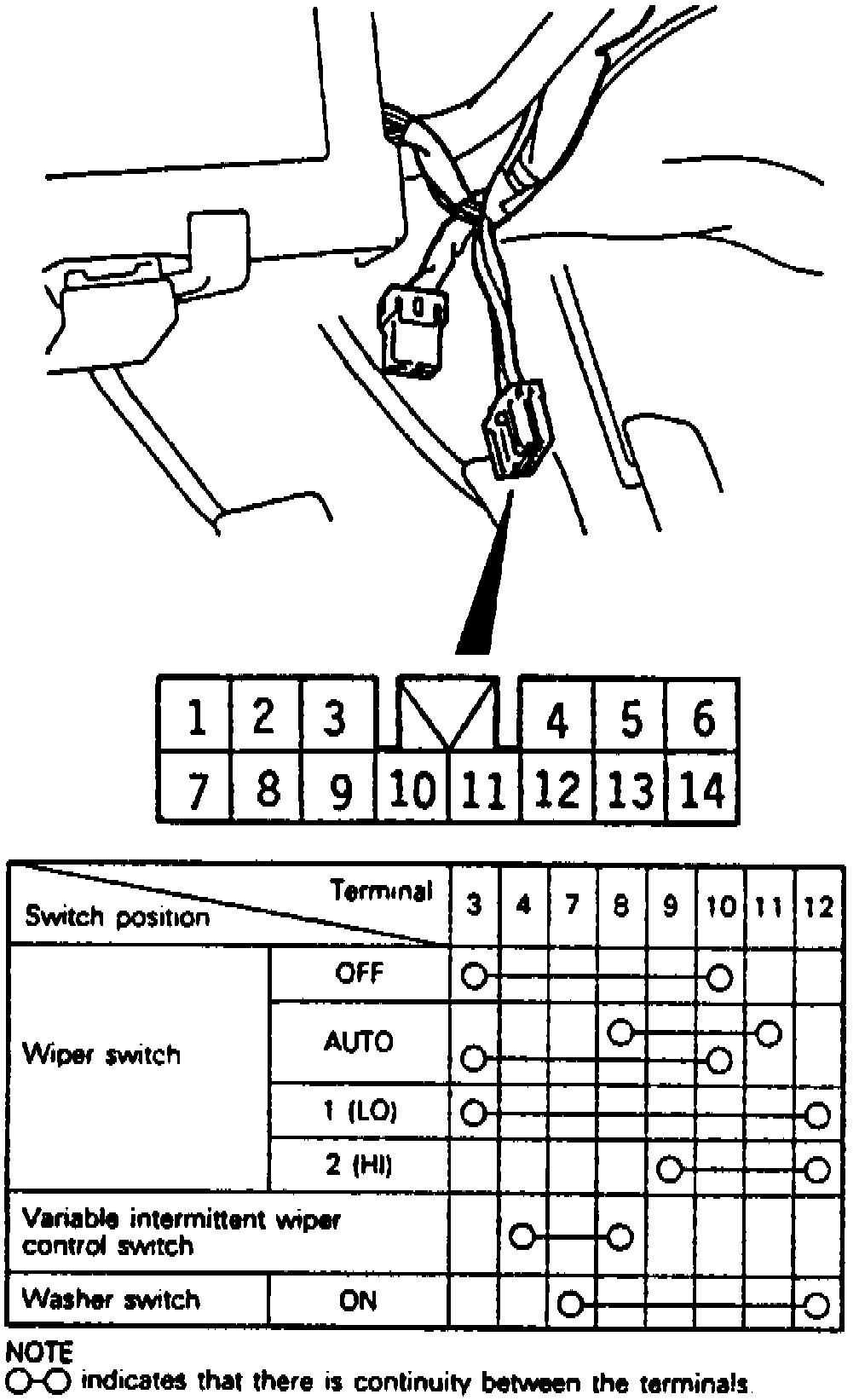

2. Operate switch and ensure continuity exists between terminals as shown in Fig. 43.
3. If results are not as specified, replace switch.
