Alternator: Service and Repair

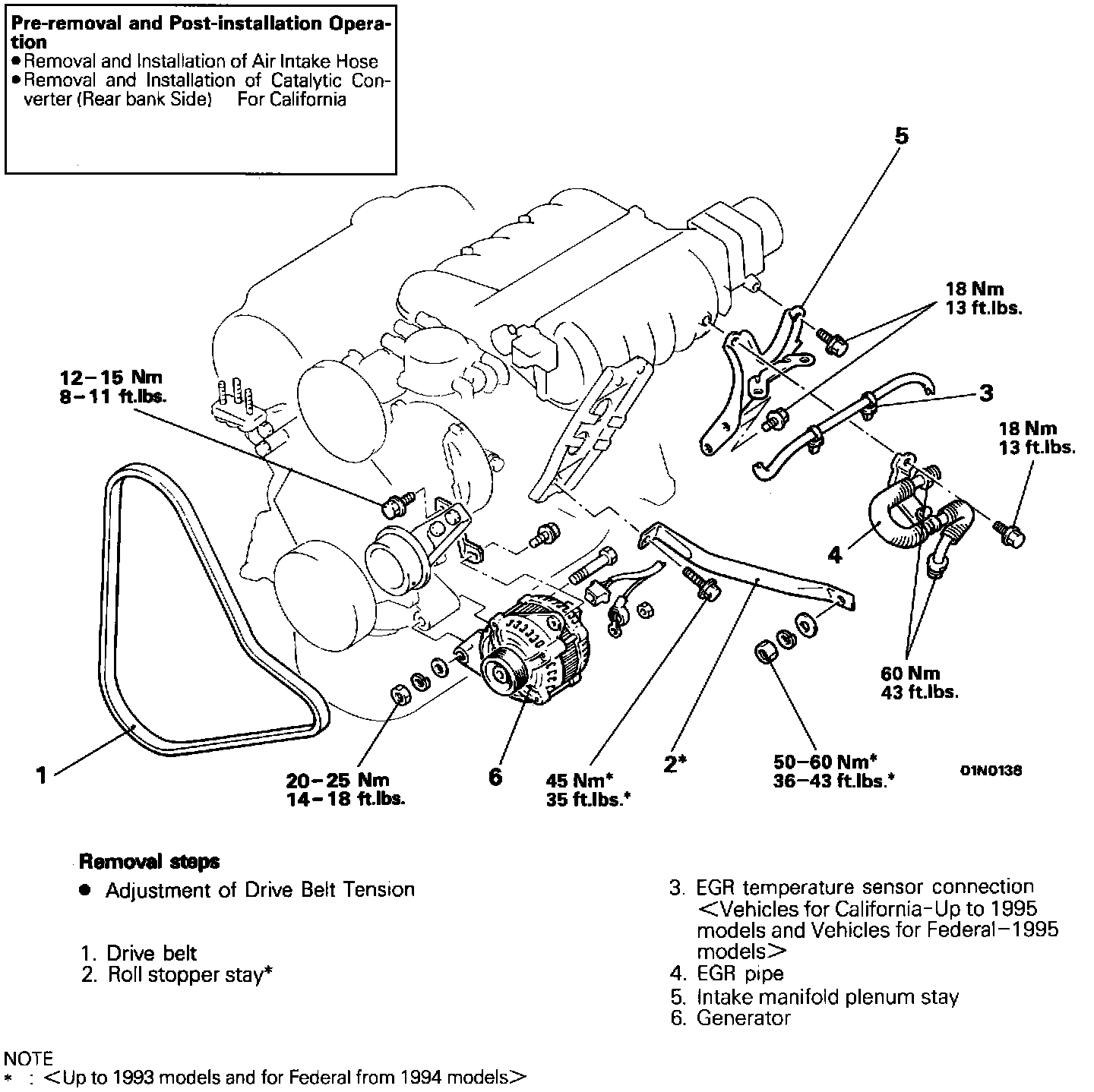

Generator - Removal And Installation:

Pre-Removal
- Air Intake Hose
- Catalytic Converter

REMOVE
- Adjustment of drive belt tension
1. Drive belt
2. Roll Stopper Stay
3. EGR Temperature Sensor Connection
4. EGR Pipe
5. Intake Manifold Plenum Stay
6. Generator

INSTALL
1. Generator
2. Intake Manifold Plenum Stay
3. EGR Pipe
4. EGR Temperature Sensor Connection
5. Roll Stopper Stay
6. Drive belt
- Adjustment of drive belt tension

Post-Installation
- Air Intake Hose
- Catalytic Converter
