Engine Control Module: Service and Repair

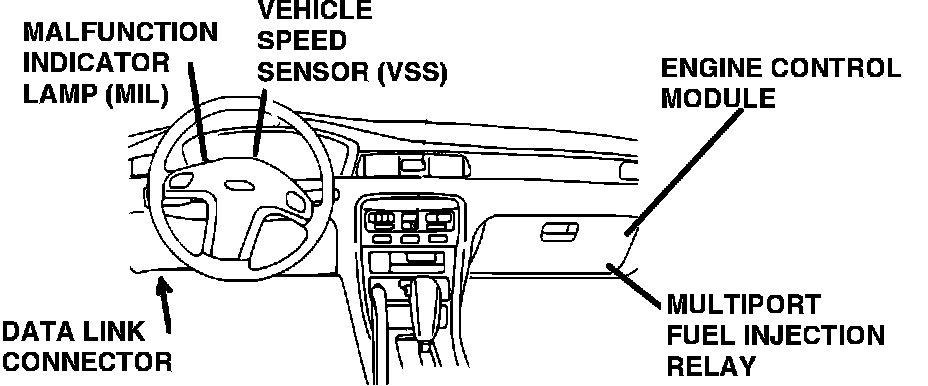

Passenger Compartment Components:

NOTE: The Engine Control Module (ECM), is located in the right side of the dash, behind the glove box.


1. Disconnect the negative battery cable.
2. Remove the glove box.
3. Disconnect the electrical connectors from the ECM.
4. Remove the screws and remove the ECM.
5. Install in reverse order.

CAUTION: Do not connect or disconnect the ECM connectors with the negative battery cable connected. A minor spark or voltage surge can damage the ECM.
