Home
>>
Mitsubishi
>>
1994
>>
Diamante Wagon V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

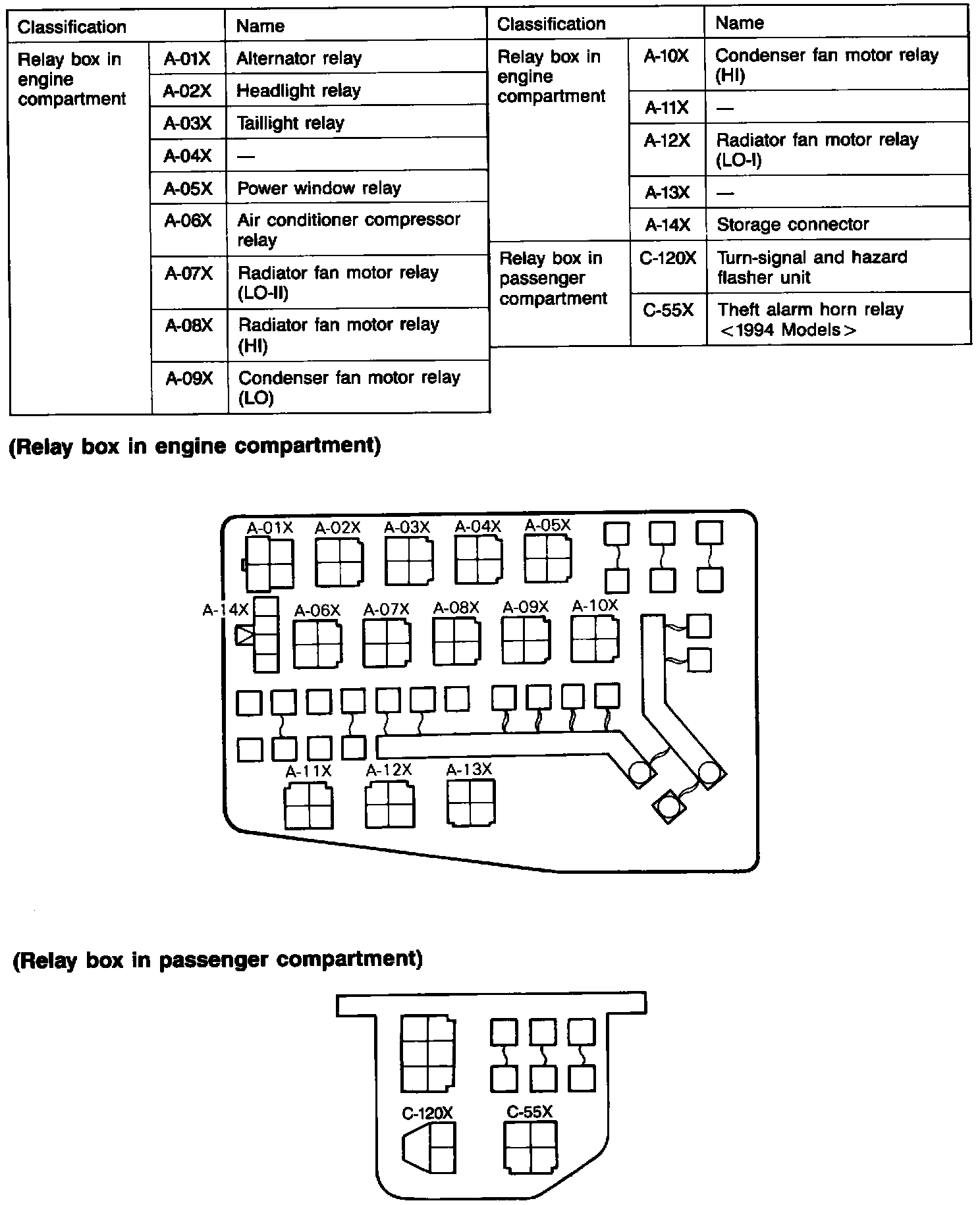

Relay Box In Engine Compartment
Relay Box In Engine Compartment
Centralized Relay:
