Heater Core: Service and Repair

1. Drain cooling system into a suitable container.
2. Remove instrument panel as outlined under Instrument Panel section.

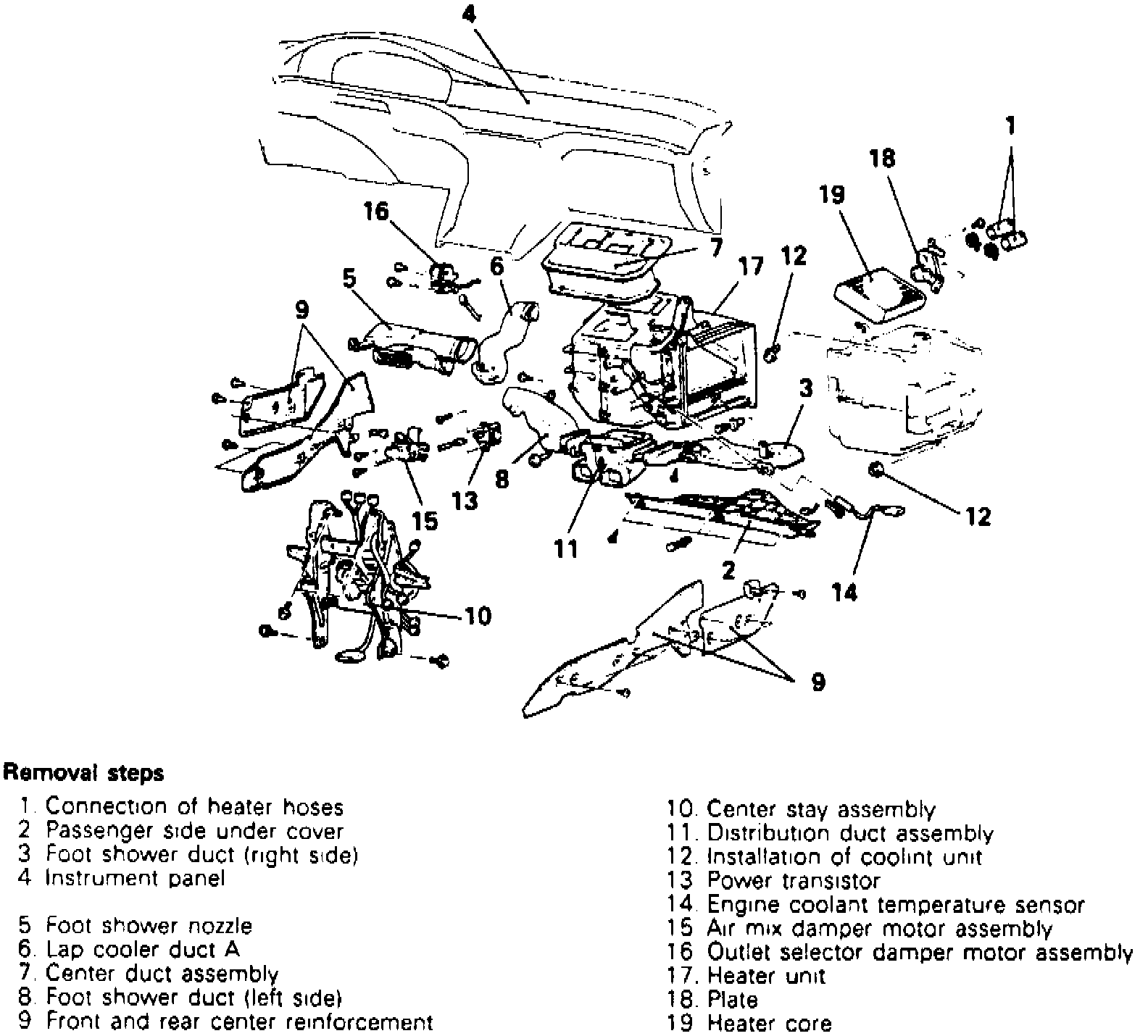

Fig. 9 Heater Unit Replacement:

3. Replace heater unit in numbered sequence shown in Fig. 9.
4. Reverse procedure to install.
