Mitsubishi
>>
1994
>>
3000GT V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Ignition Switch-ST
>>
Federal
Federal

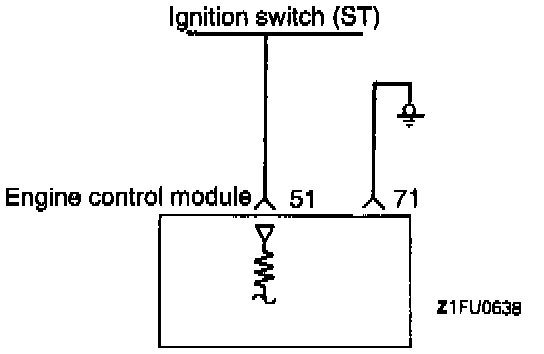

CIRCUIT DIAGRAM

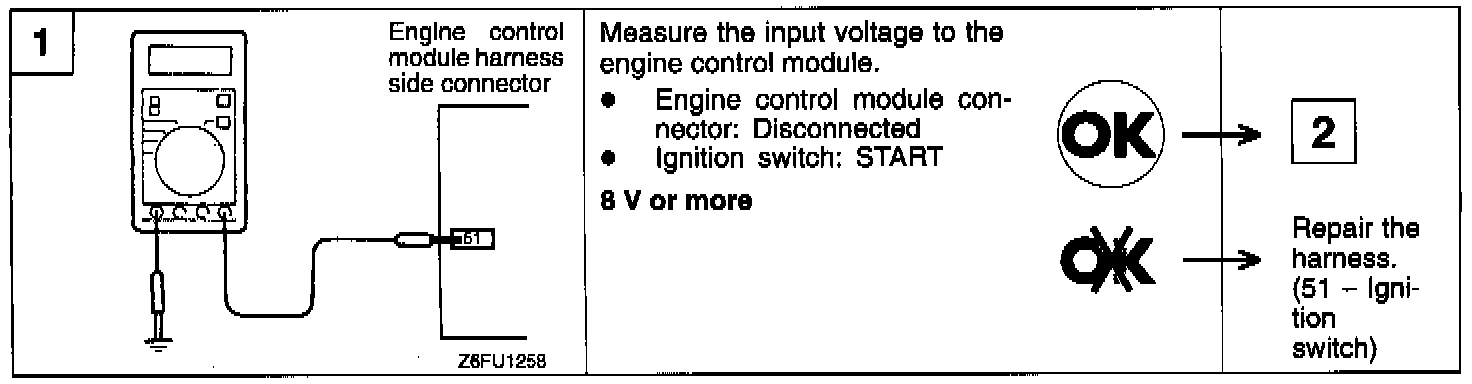

INSPECTION USING SCAN TOOL

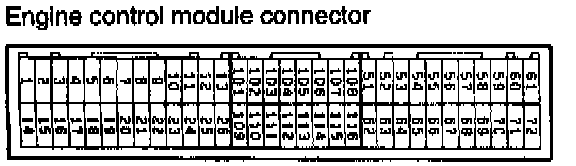

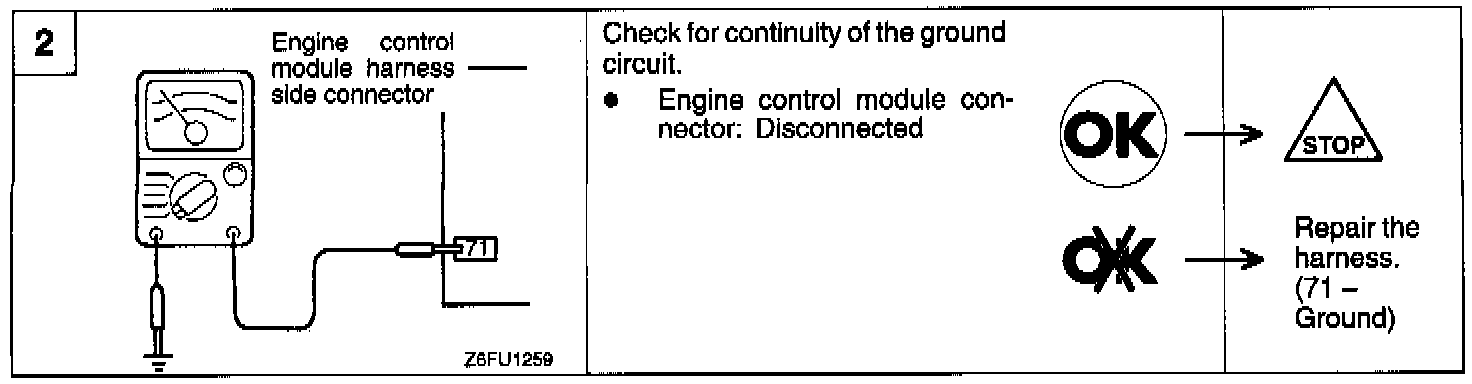

HARNESS INSPECTION PROCEDURE
