Home
>>
Mitsubishi
>>
1994
>>
3000GT V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Diagrams
>>
Electrical Diagrams
>>
Federal and Canada Emissions
Federal and Canada Emissions

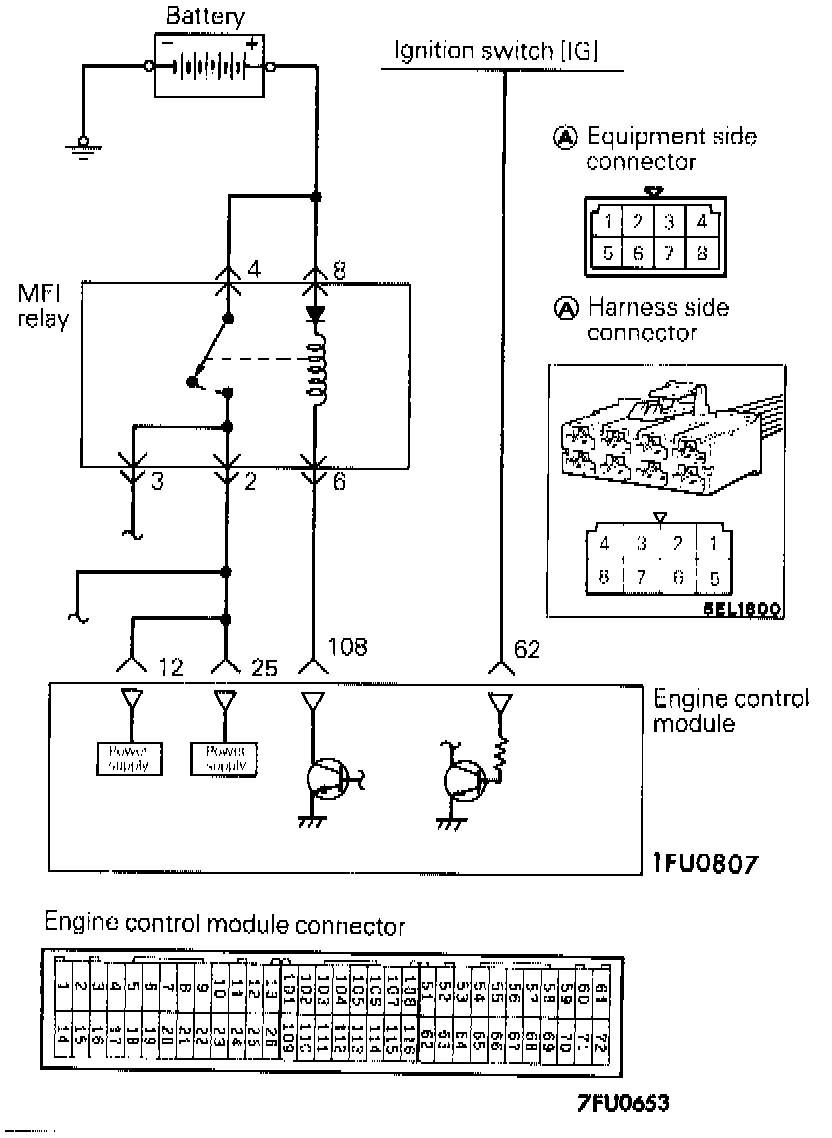

Power Supply Circuit:
