Recall - Automatic Shoulder Belt Door Latch Switch: Overview
NO.: SR-97-002BDATE: August, 1997
MODEL: 1993 Mirage
SUBJECT:
AUTOMATIC SHOULDER BELT DOOR LATCH SWITCH
SAFETY RECALL CAMPAIGN (MIRAGE)
IMPORTANT:
On certain affected units, this Safety Recall Bulletin should be performed in conjunction with related Safety Recall Bulletin SR-97-003, AUTOMATIC SHOULDER BELT GUIDE RAIL SAFETY RECALL CAMPAIGN. Check the AFFECTED VEHICLES section of both bulletins and the WARRANTY SUPER SCREEN before proceeding.
PURPOSE
Mitsubishi Motor Sales of America, Inc. is voluntarily recalling certain 1993 Mirage models to replace the driver's and passenger's side automatic shoulder belt door latch switches. Vehicles built between April 1, 1992 and November 20, 1992 may have automatic shoulder belt door latch switches which can malfunction. If either of these switches malfunction, the corresponding automatic shoulder belt will not move along its path above the door and lock into position when the door is closed.
BACKGROUND INFORMATION
Symptom
The automatic shoulder belt may not move from the A-Pillar into its normal operational position at the rear of the front door.
Cause
The automatic shoulder belt switch which is mounted on the front door latch may malfunction.
Remedy
On all affected vehicles, both front door latches must be removed, the latch lot number checked and, if in the affected range, the door latch switch replaced with the door latch switch kit described in the Parts Information section of this bulletin.
Refer to the flow-chart for an overview of the procedures before starting this campaign.
CUSTOMER NOTIFICATION
MMSA will send a letter to all owners of affected vehicles instructing them to call return their vehicle to a Mitsubishi dealer to have this campaign procedure performed at no charge. A copy of the letter is shown.
AFFECTED VEHICLES
1993 Mirage with production dates of April 1,1992 through November 20, 1992

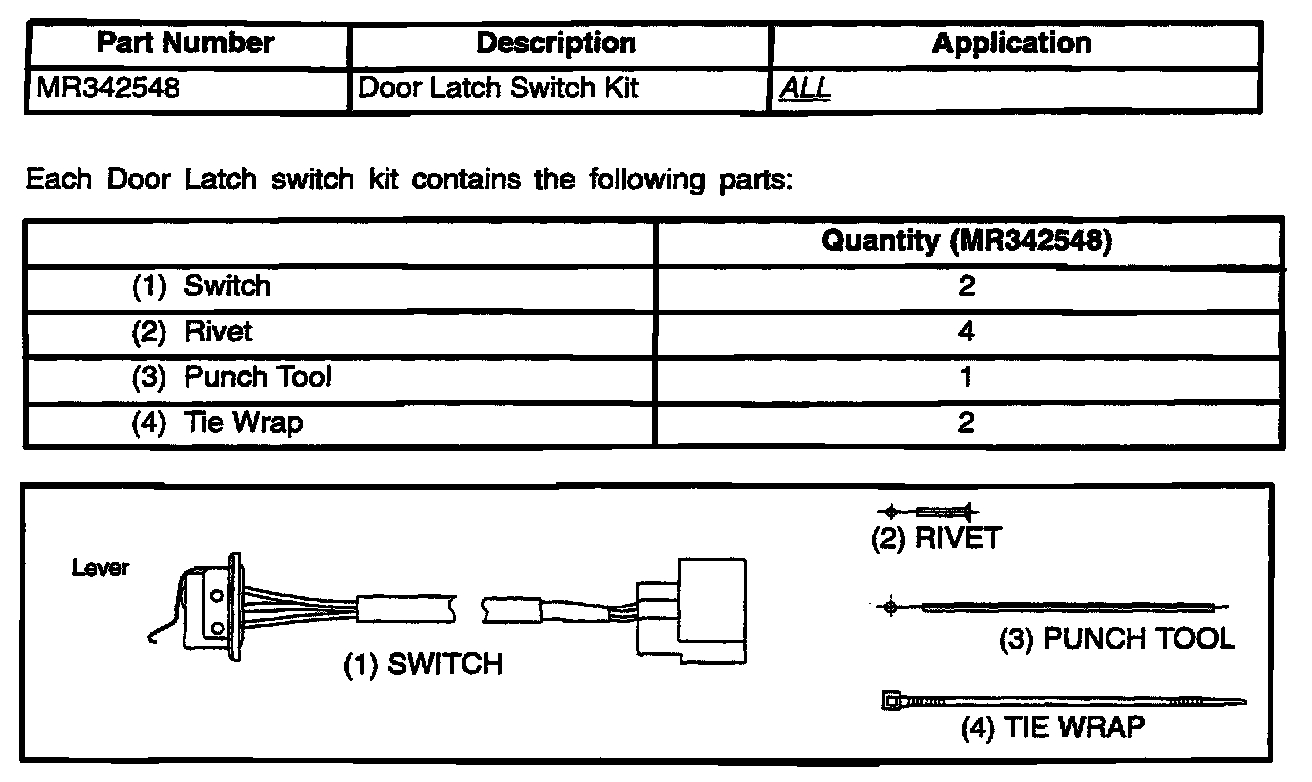

PARTS INFORMATION
A small supply of the switch kit will be allocated to dealers who received affected vehicles. Additional orders can be placed through the normal parts ordering system if the initial allocation is insufficient for your dealership.
WARRANTY INFORMATION
Door Latch Switch Inspection
Campaign Labor Operation: C97O2WXX Time Allowance: 0.8 hr.
Door Latch Switch Inspection and Replacement (1 Switch)
Campaign Labor Operation:C97O2WXX Time Allowance: 0.9 hr.
Door Latch Switch Inspection and Replacement (2 Switches)
Campaign Labor Operation:C97O2WXX Time Allowance: 1.0 hr.
Allowable Parts:
MR342548 Door Latch Switch Kit
CAMPAIGN CLAIM SAMPLES
93 MIRAGE AUTOMATIC SHOULDER BELT DOOR LATCH SWITCH

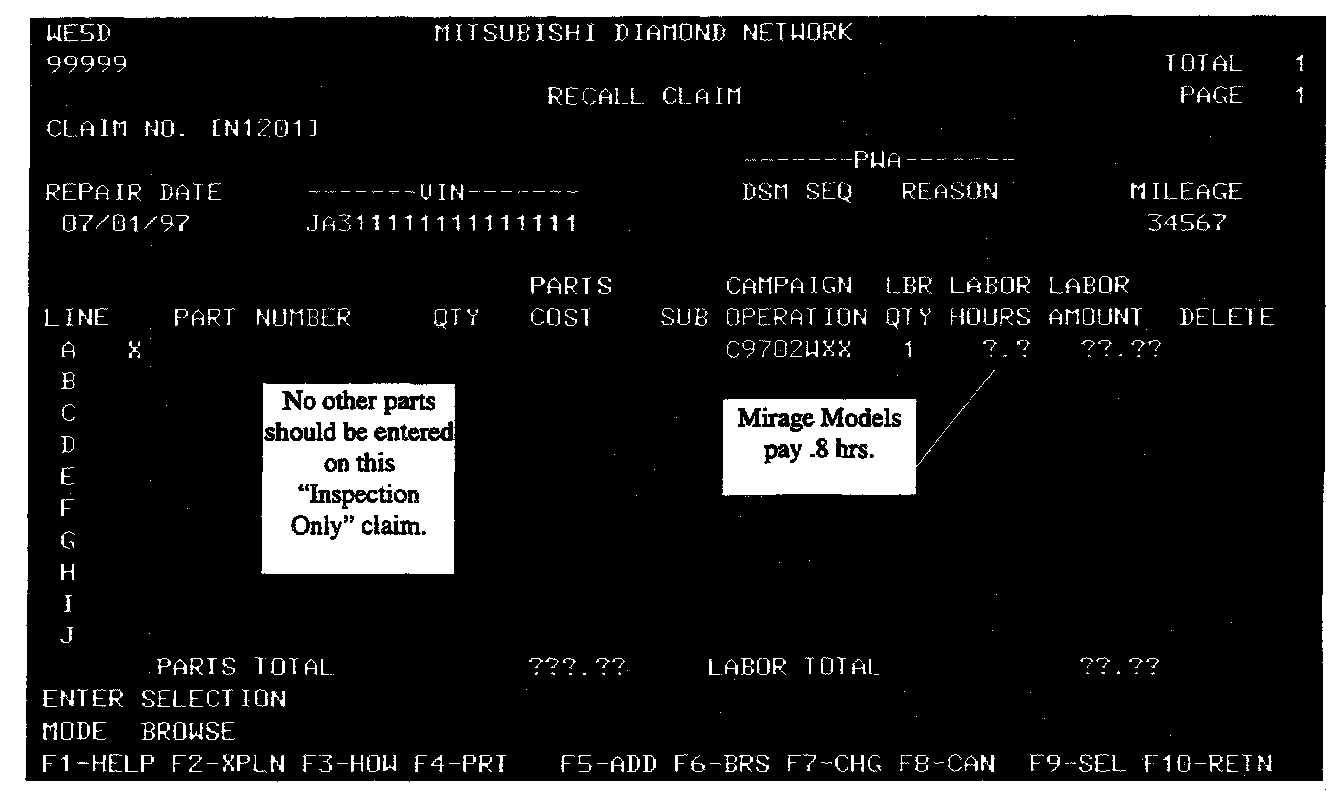

BOTH DOOR LATCH SWITCHES - INSPECTION ONLY (NO REPAIRS)
BODY PORTION OF THE CAMPAIGN CLAIM "C" TYPE

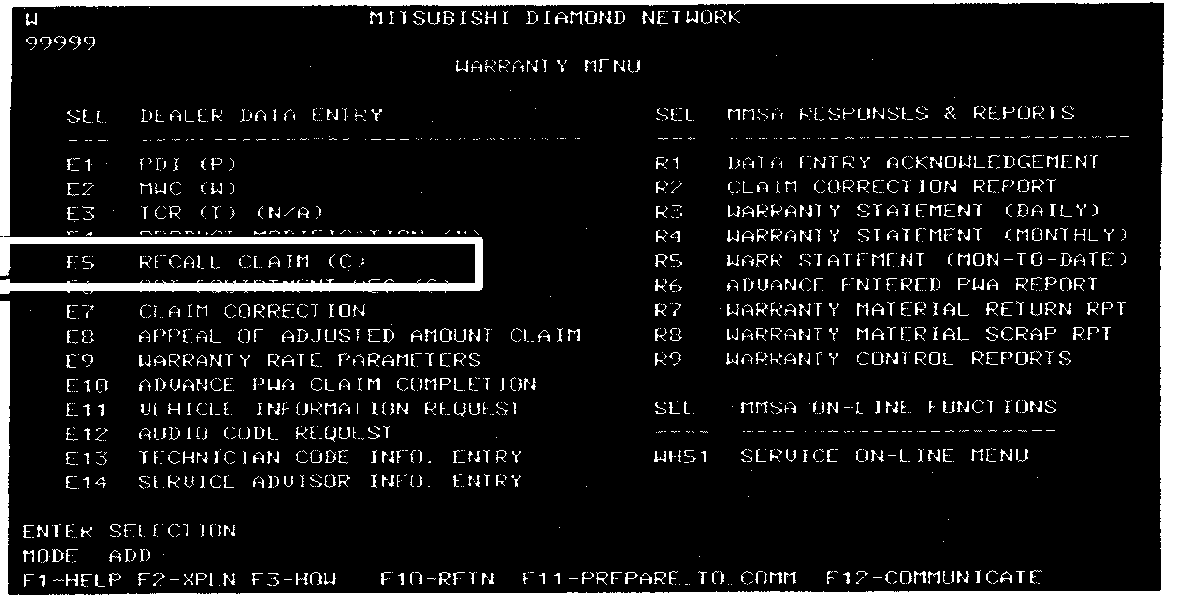

DIAMOND NETWORK WARRANTY MENU - USE E-5 MENU OPTION ONLY!

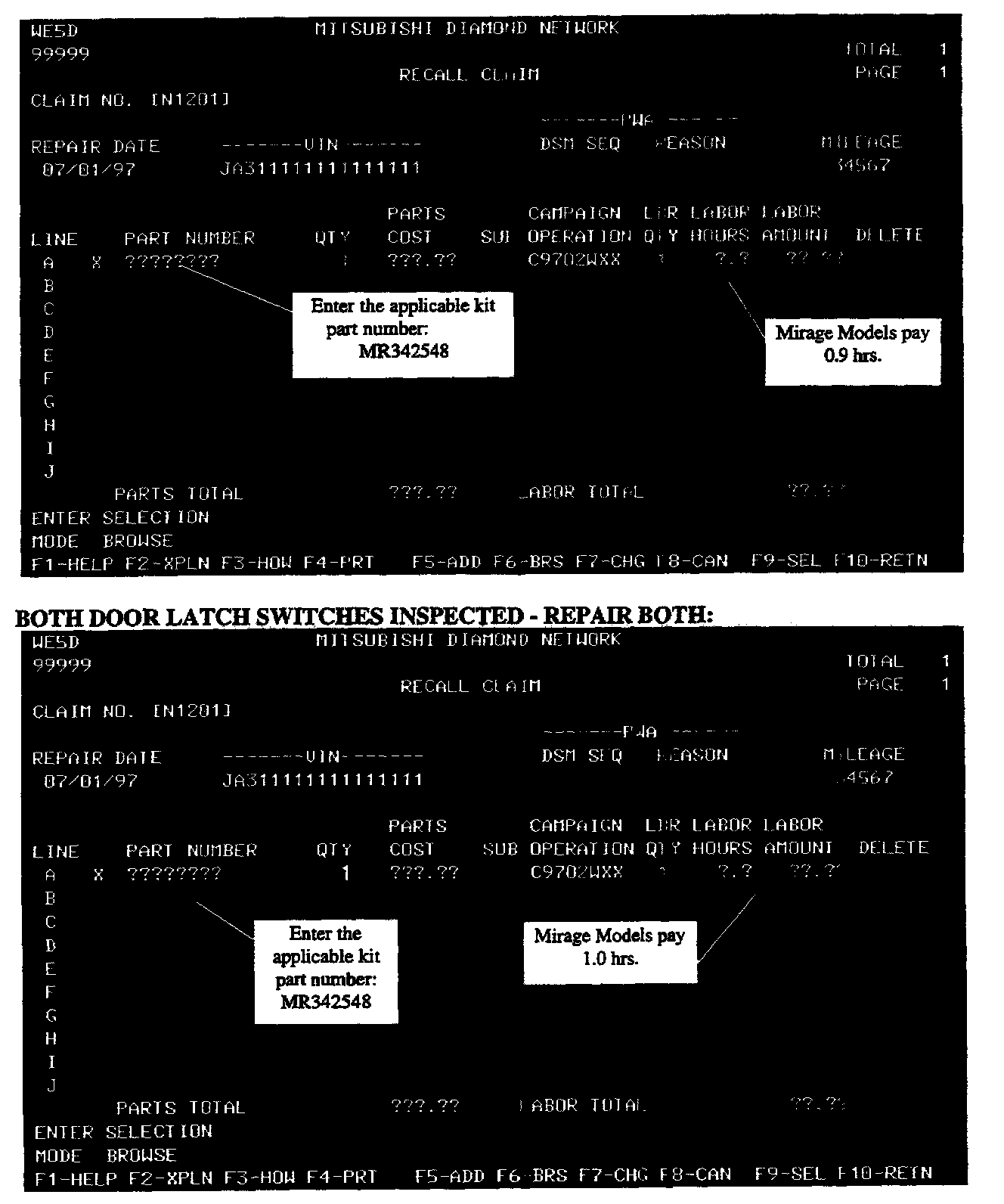

BOTH DOOR LATCH SWITCHES INSPECTED - REPAIR ONE CLAIM:
ENTER ALL CAMPAIGN CLAIMS THROUGH MENU OPTION E-5
