Electrical Diagrams

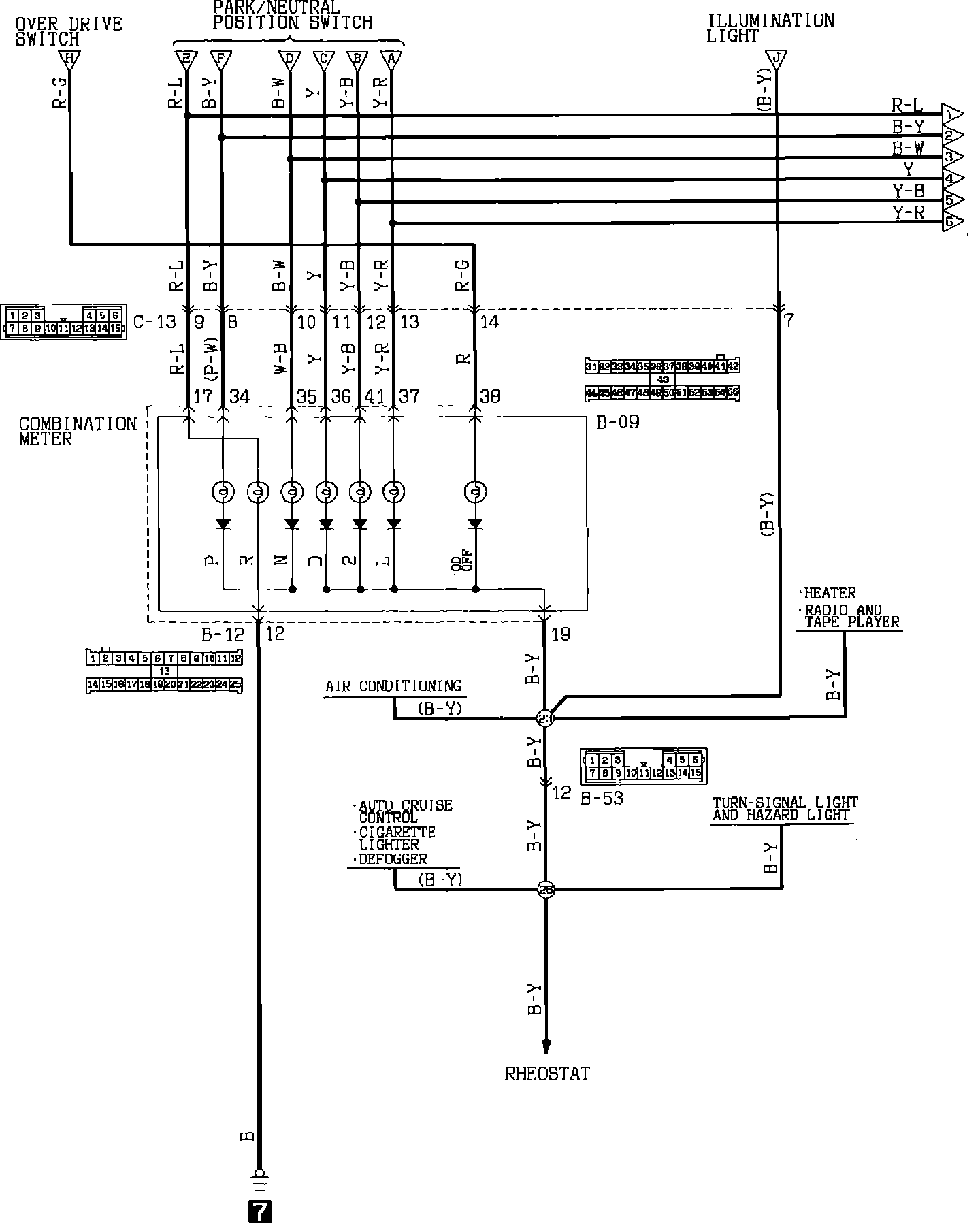

Automatic Transaxle (3-Speed):

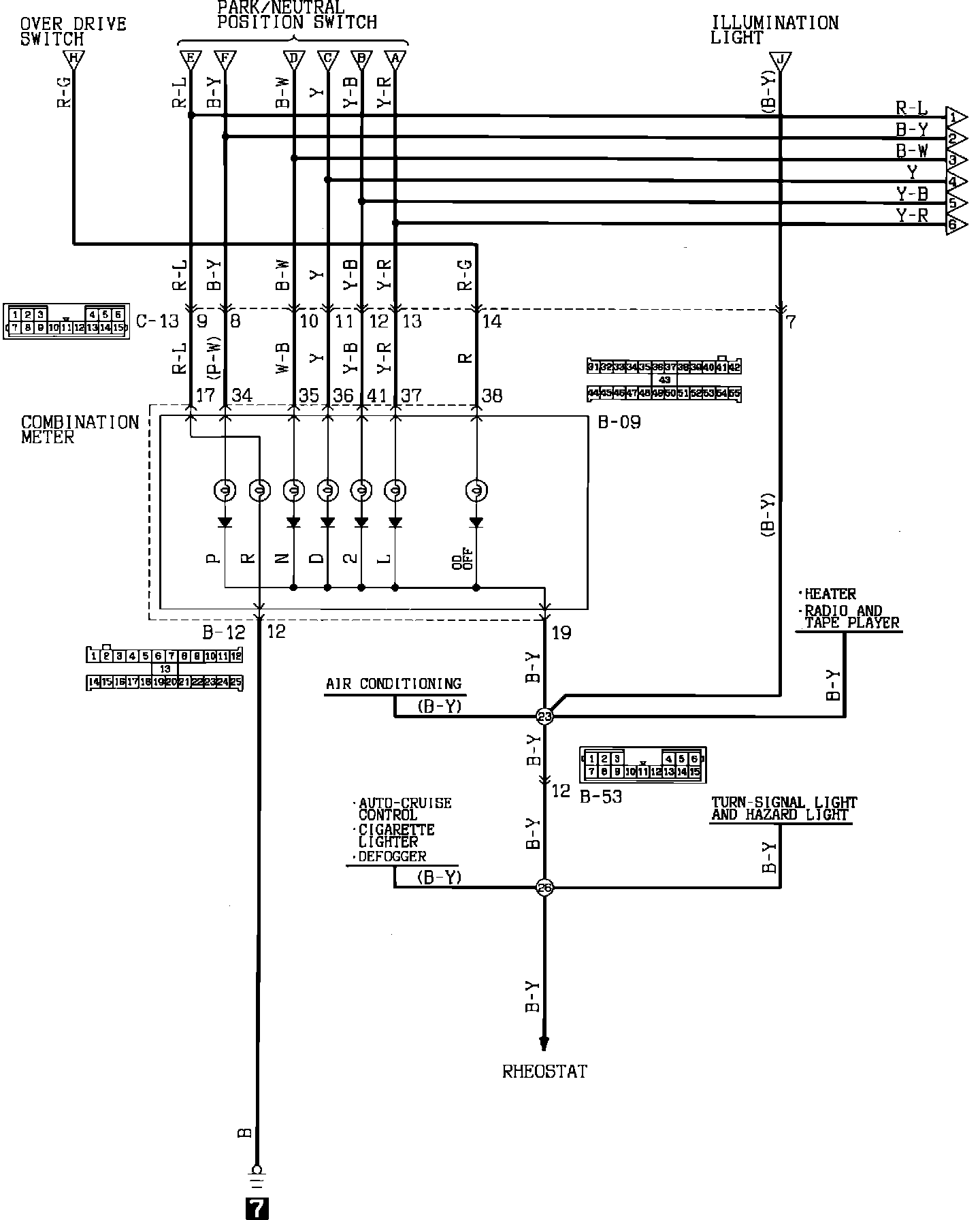

Automatic Transaxle (3-Speed):

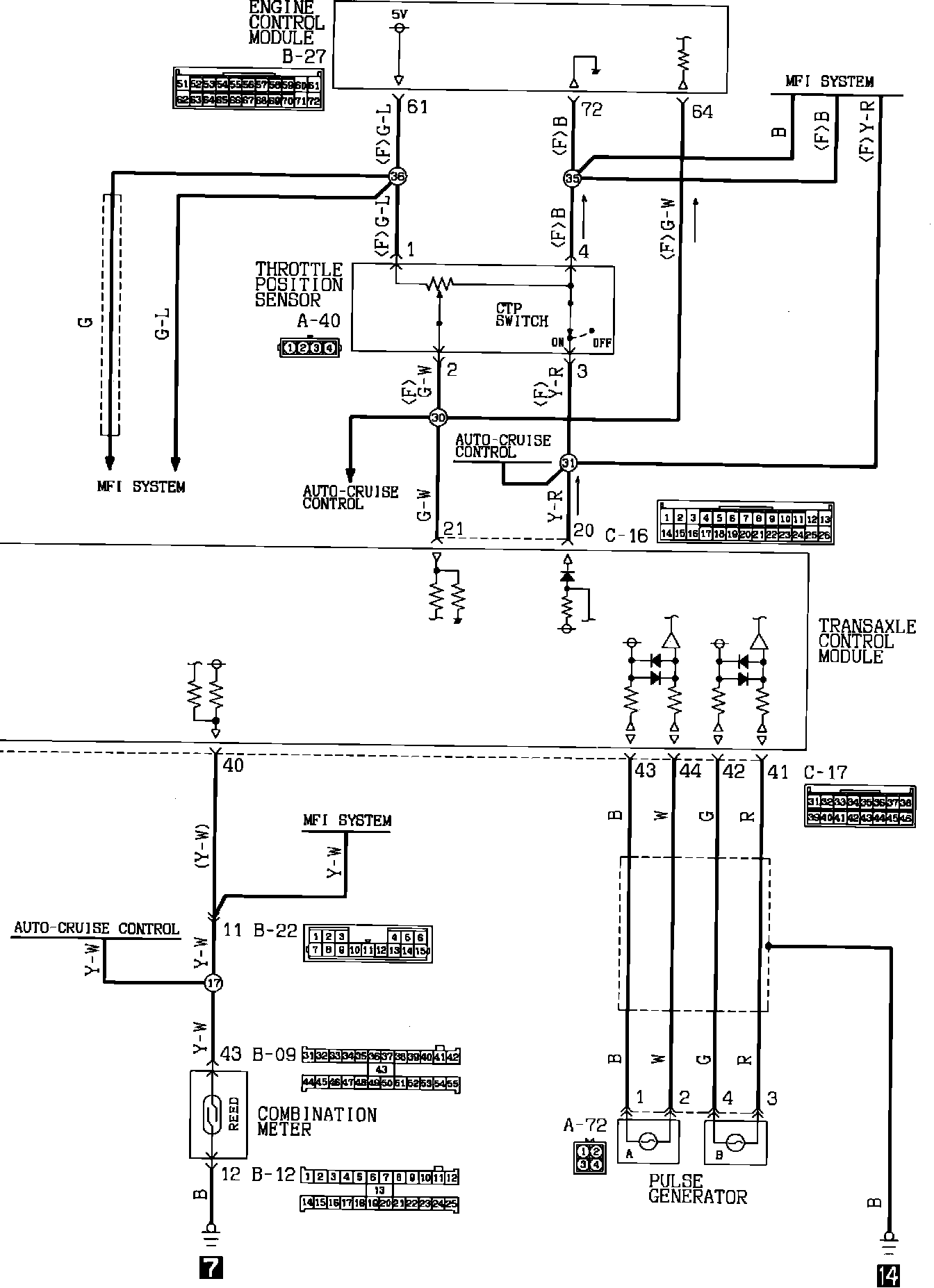

Automatic Transaxle (4-Speed):

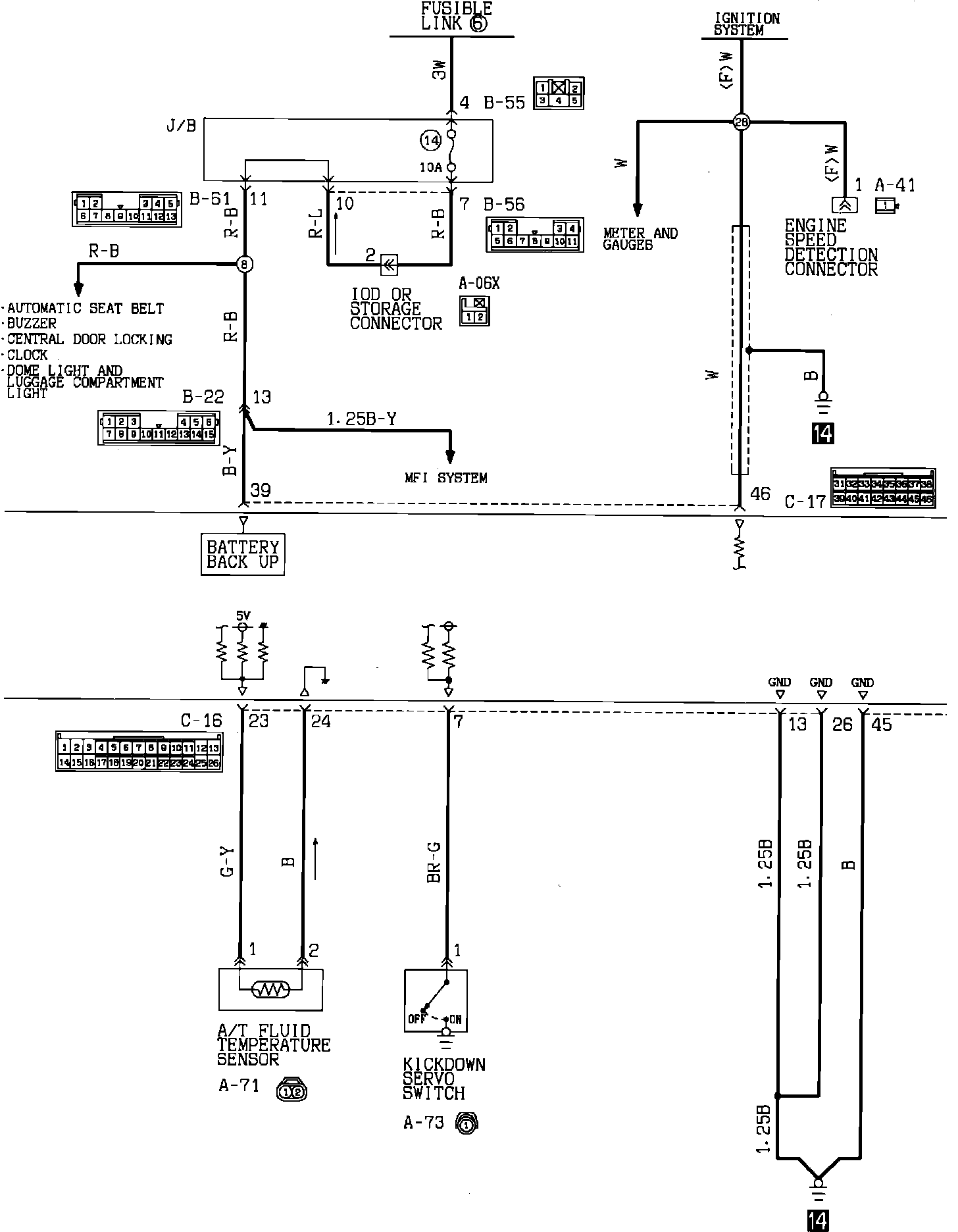

Automatic Transaxle (4-Speed):

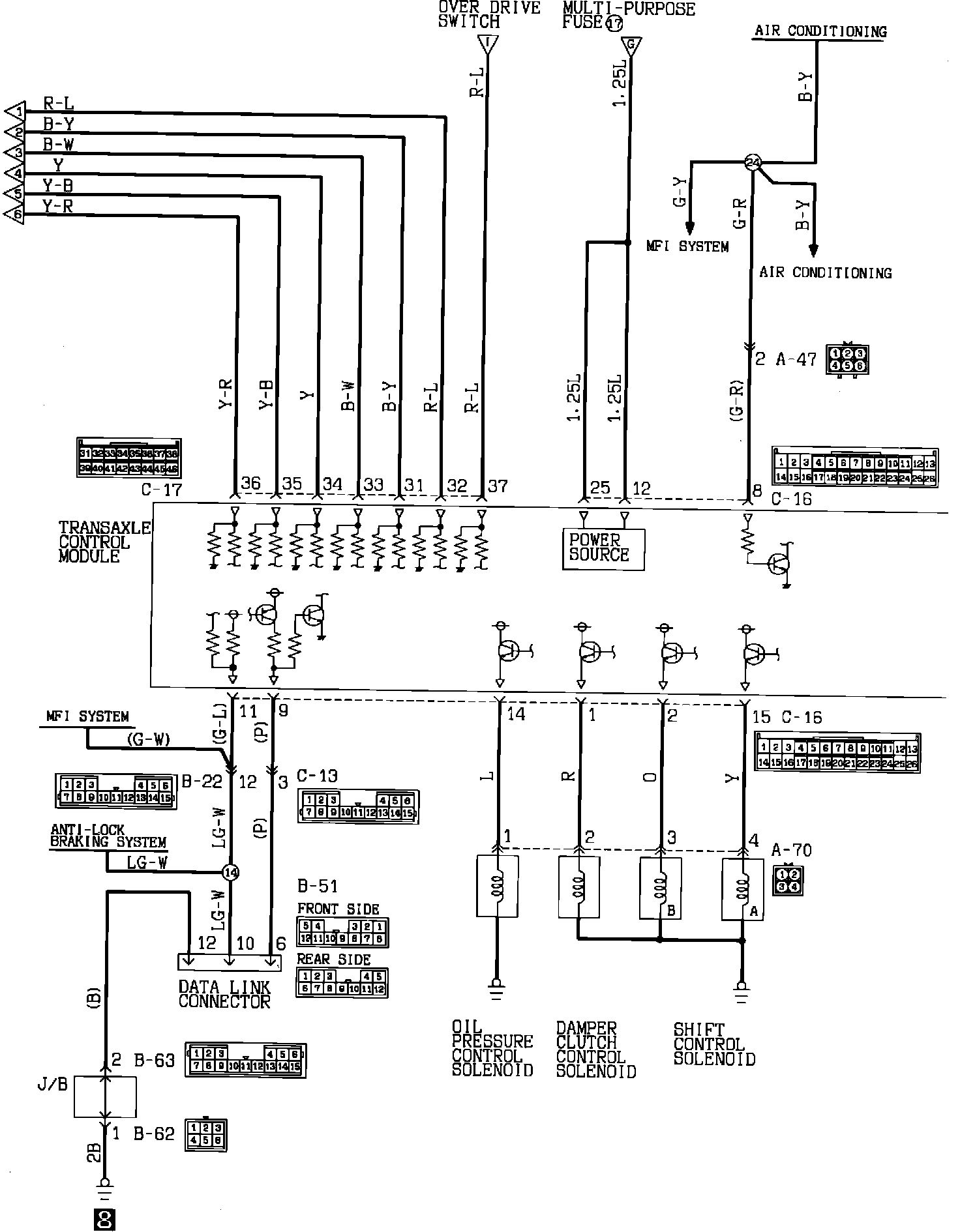

Automatic Transaxle (4-Speed):

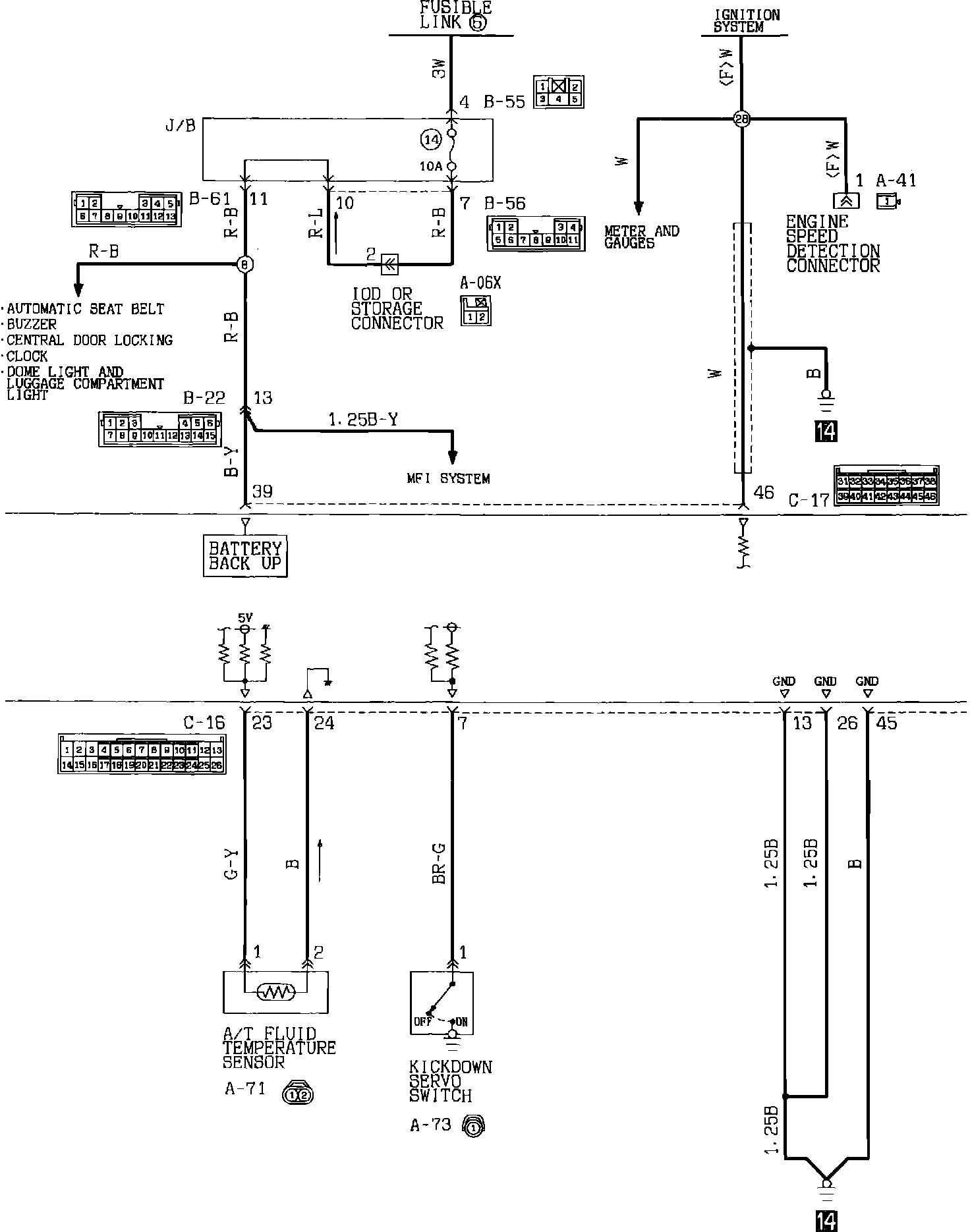

Automatic Transaxle (4-Speed):

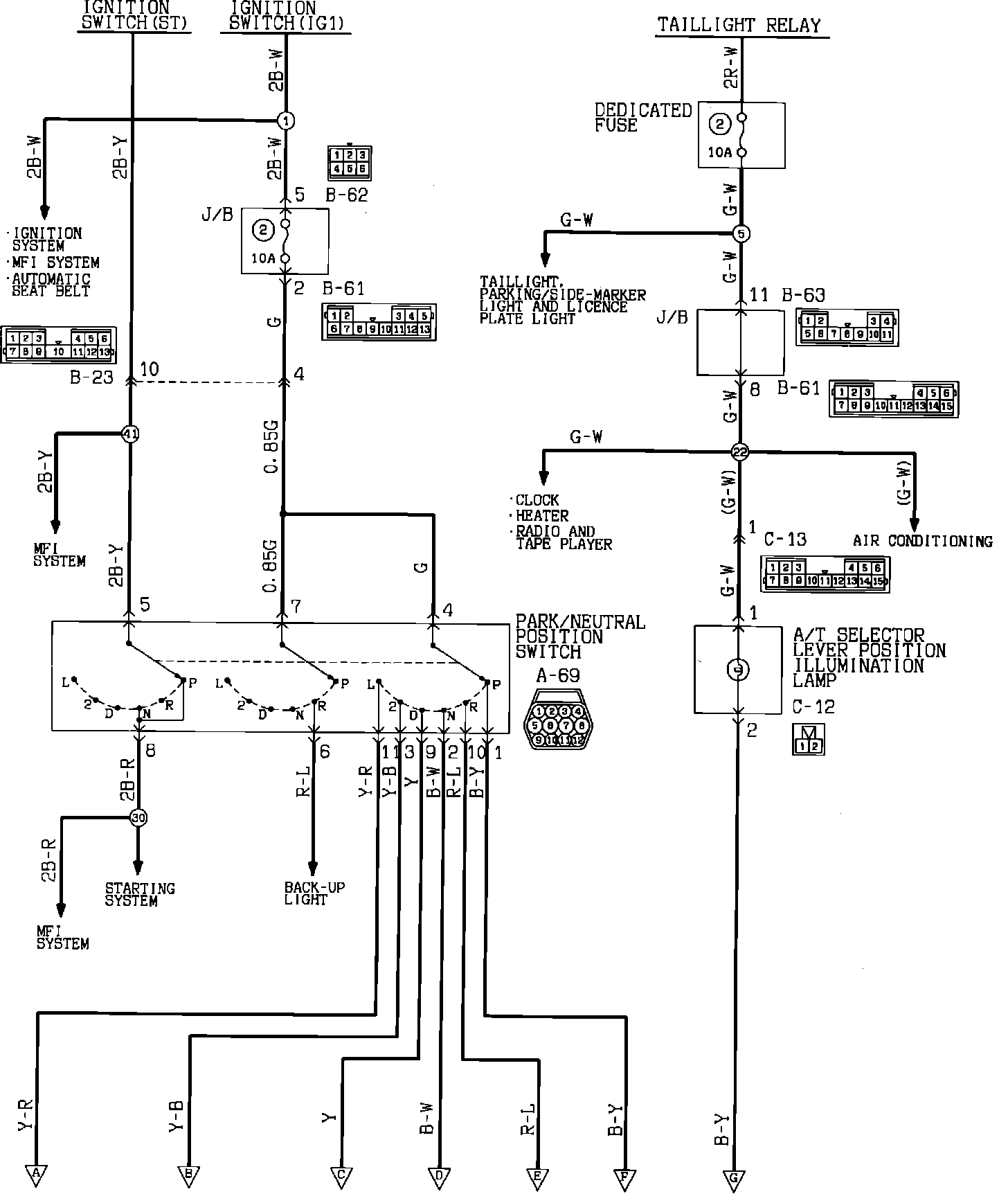

Automatic Transaxle (4-Speed):

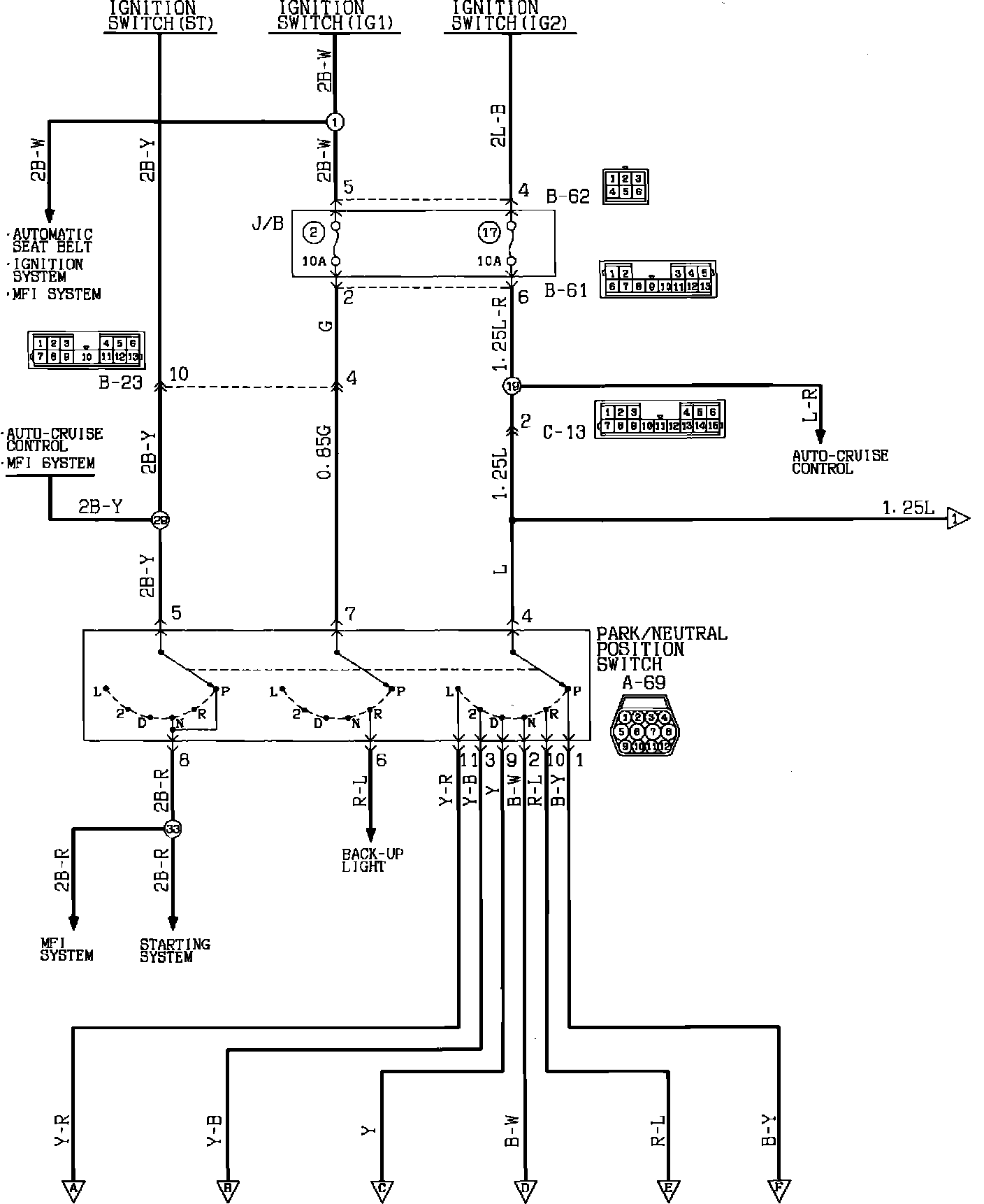

Automatic Transaxle (4-Speed):

4 Speed Auto Transaxle Circuit:

4 Speed Auto Transaxle Circuit:

4 Speed Auto Transaxle Circuit:

4 Speed Auto Transaxle Circuit:

4 Speed Auto Transaxle Circuit:

4 Speed Auto Transaxle Circuit:
