Mirage L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Strategies
>>
Troubleshooting Flow, Strategy and Guidelines
Troubleshooting Flow, Strategy and Guidelines

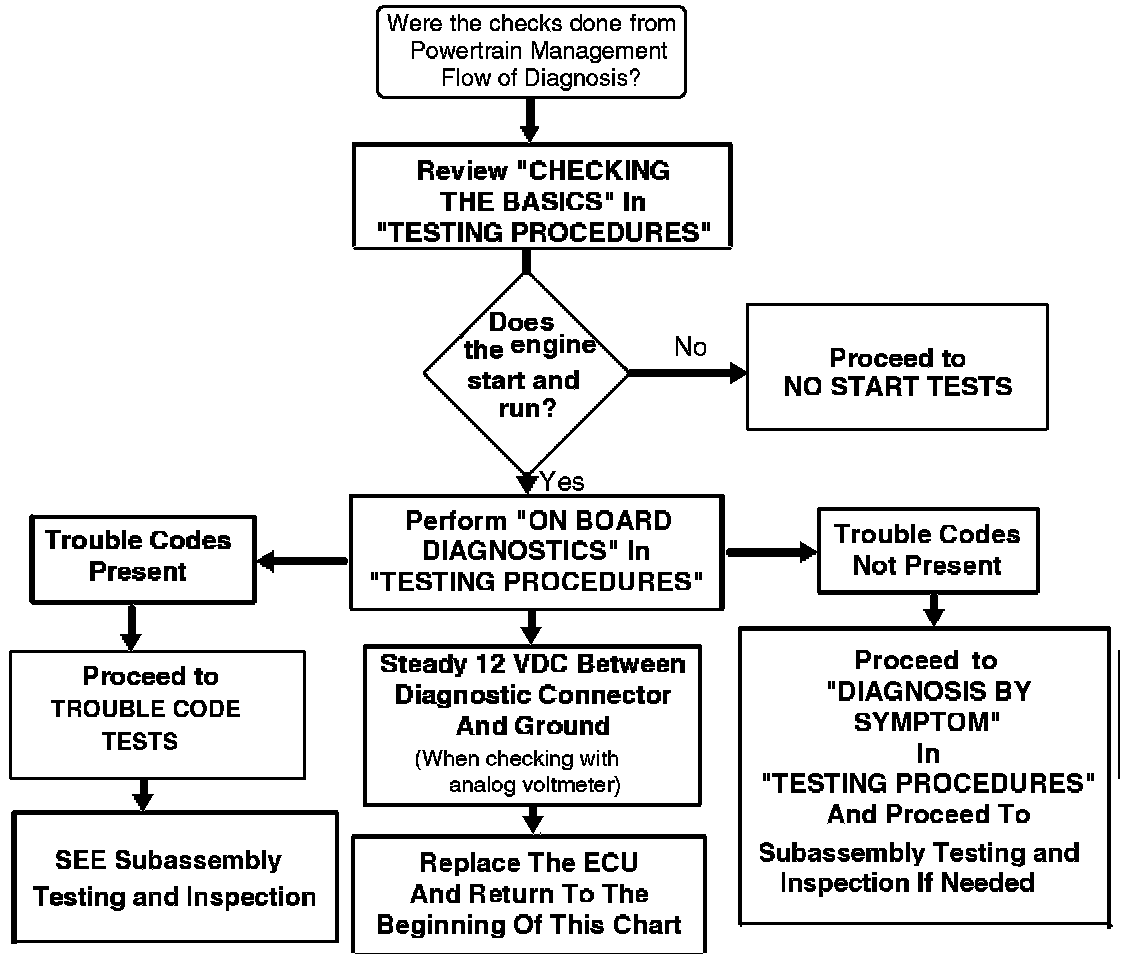

Flow Of Diagnosis:
