Rear Window Wiper Motor Replace
Rear Window Wiper Motor Replace

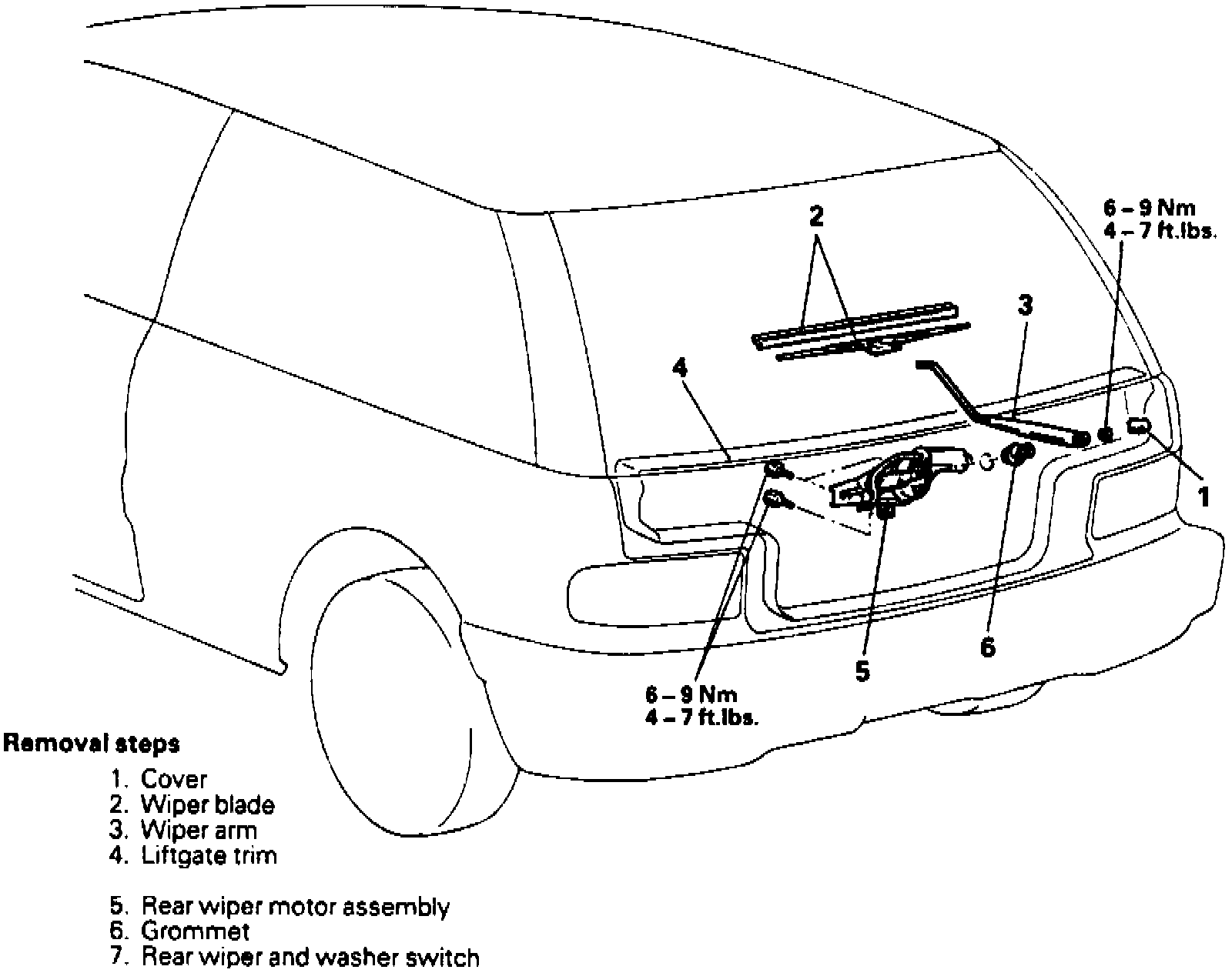

Fig. 8 Rear Wiper Motor Installation:
When replacing rear wiper motor, refer to
Fig. 8
for removal and installation procedure.
