Electrical Diagrams
Electrical Diagrams

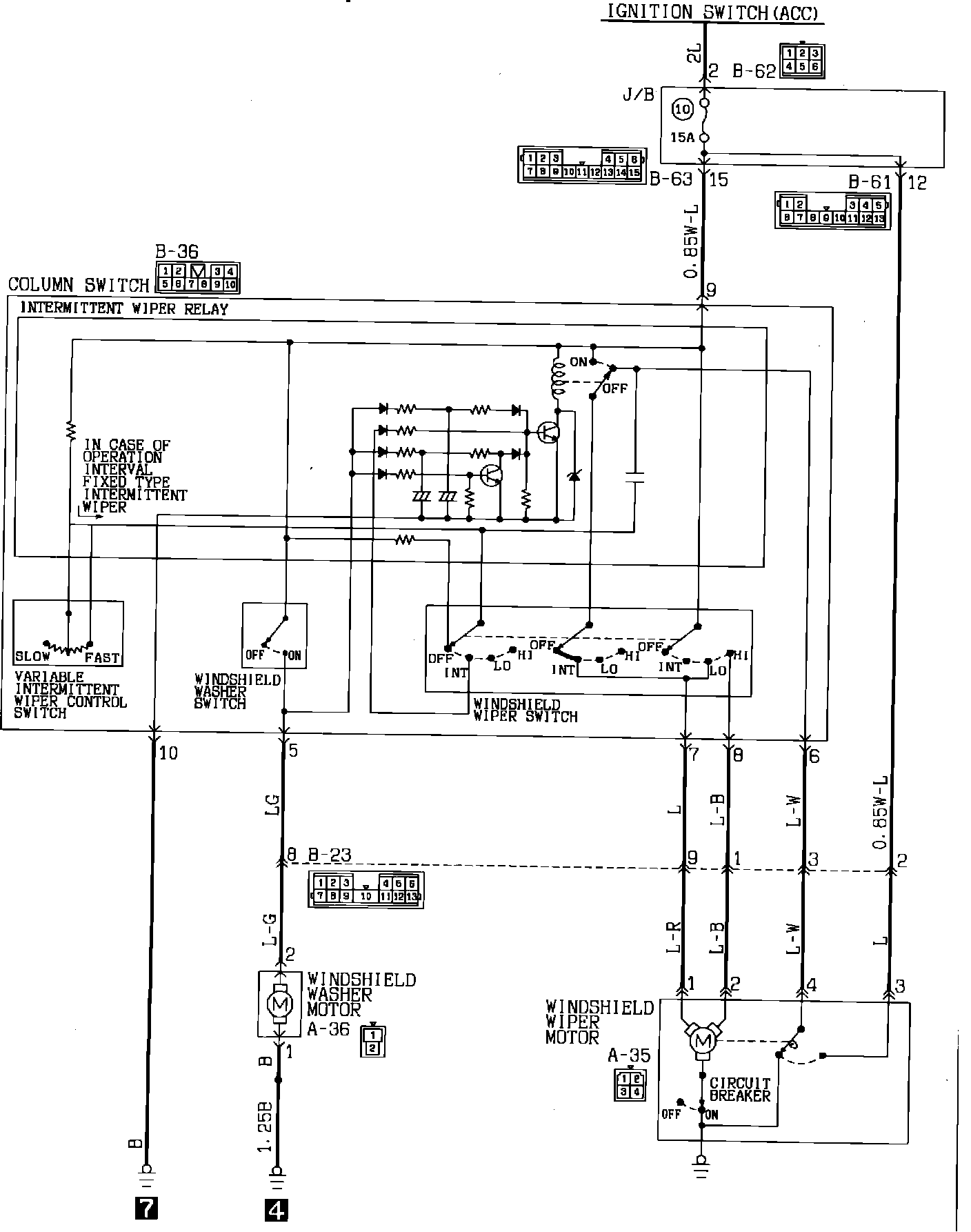

Windshield Wiper/Washer (With Intermittent Wiper):

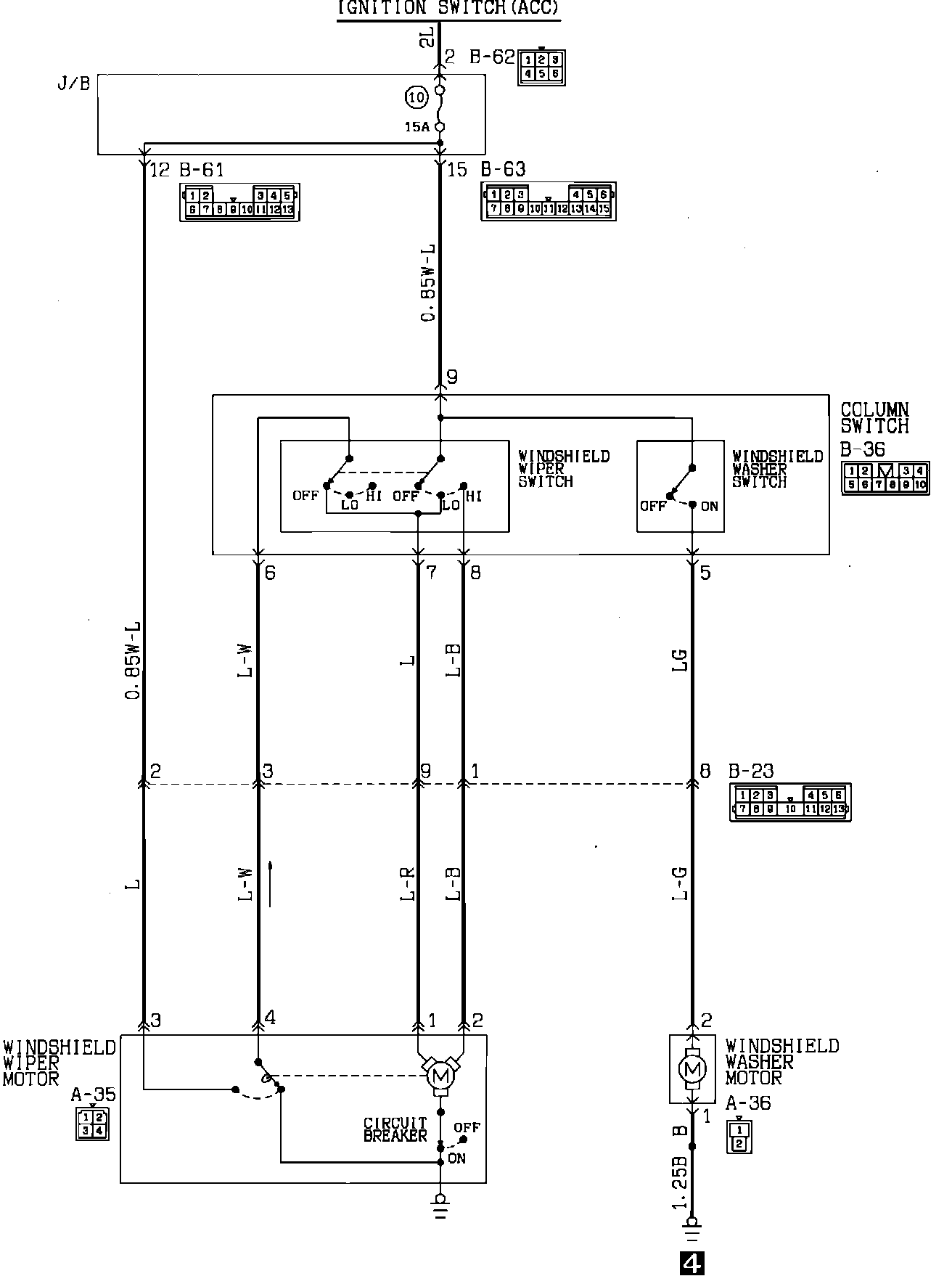

Windshield Wiper/Washer (Without Intermittent Wiper):
