Procedures

1. Remove the meter hood and combination meter.

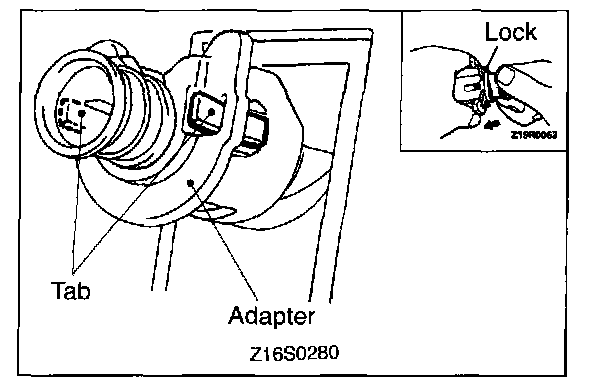

2. Remove the adapter lock.
3. Pull the speedometer cable slightly into the passenger compartment, and remove the rear side of the adapter from the cable.
4. After turning the adapter so that the notched section is aligned with the tab on the cable side, remove the adapter by sliding it backwards.




5. Tie a rope to the end of the speedometer cable that is in the passenger compartment. Then remove the grommet inside the engine compartment, and pull the cable into the engine compartment.
6. Install the new speedometer cable, and install it securely to the adapter.

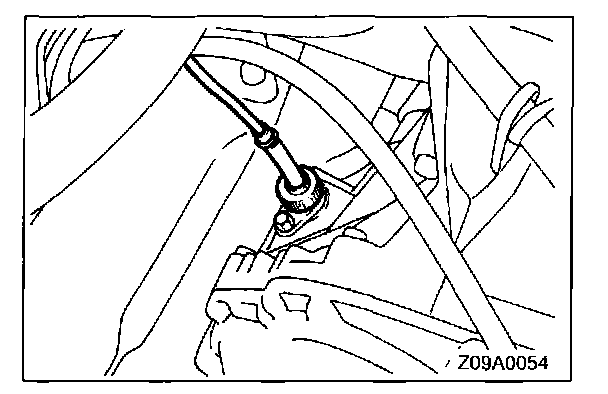

7. At the transaxle end of the speedometer cable, the key joint should be inserted into the transaxle, and the nut should be securely tightened.

CAUTION: If the cable is not correctly and securely connected, it may cause incorrect indication by the speedometer, or abnormal noise. Be sure to connect it correctly.
