Shift Lock Cable

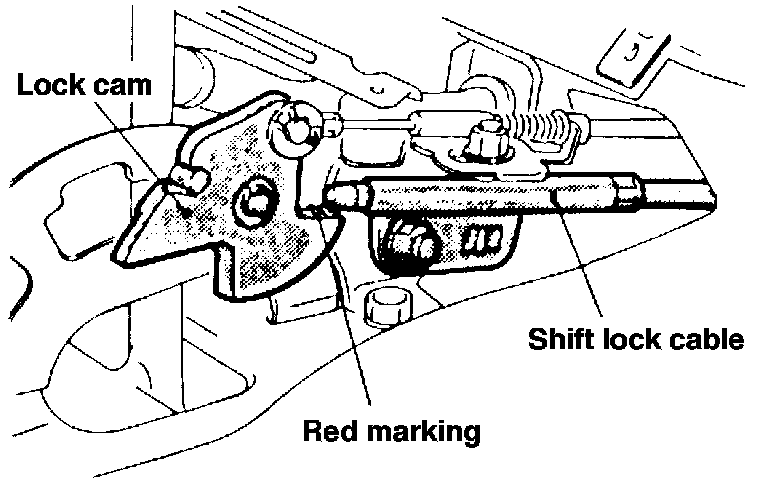

Fig. 4 Shift Lock Cable Adjustment:

1. Place selector lever in Park position.
2. Fasten the shift lock cable at a position where end of shift lock cable is positioned above the red marking as shown in Fig. 4.
